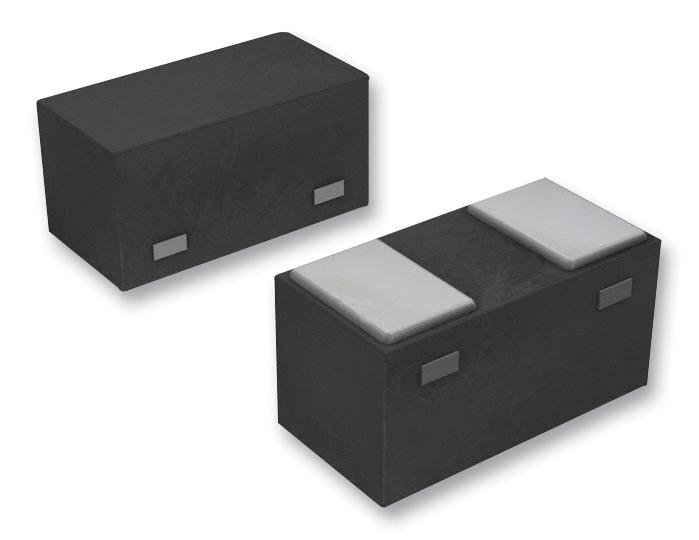

ROHM VS5V0BL1HST15R Transient Voltage Suppressor
The transient voltage suppressor provides high reliability and bi-directional ESD protection with an ESD level of +8kV, suitable for cellular handsets, portable electronics, data lines, and audio-visual equipment. It features a compact surface-mount design, measuring approximately 0.7 mm in size, with a peak pulse power of 36 W and a peak pulse current of 2.0 A. Operating within -55°C to +105°C, it ensures robust protection against electrostatic discharge and transients in a wide range of electronic applications.
ROHM VS5V0BL1HST15R Transient Voltage Suppressor Specifications:
- Peak pulse power: 36 W
- Peak pulse current: 2.0 A
- ESD protection level: +8kV (IEC61000-4-2 Contact)
- Reverse standoff voltage: 5.0 V
- Reverse breakdown voltage: 10.0 V
- Clamping voltage: 18.0 V
- Capacitance between terminals: 0.39 pF (C=150pF R=3300)
- Dimensions: 0.7 mm L x 0.6 mm W x 0.3 mm H
- Operating temperature: -55°C to +105°C
- Material: SMD0603B package, surface-mount
- Voltage rating: 5.0 V
- Maximum junction temperature: 150°C
- Storage temperature: -55°C to +150°C
Buy the ROHM Series Transient Voltage Suppressor: VS5V0BL1HST15R
Purchase the ROHM VS5V0BL1HST15R transient voltage suppressor online today for high-reliability ESD and transient protection. This compact surface-mount device offers a 36 W peak pulse power, 2.0 A peak pulse current, and protection levels of +8kV, suitable for cellular, portable, audio-visual, and data line applications. Designed with a small footprint of approximately 0.7 mm, it ensures robust operation from -55°C to +105°C, providing long-lasting electrostatic discharge and transient suppression for sensitive electronic components.
Get ROHM VS5V0BL1HST15R today—built for precision, reliable ESD and transient protection in compact surface-mount packages.
