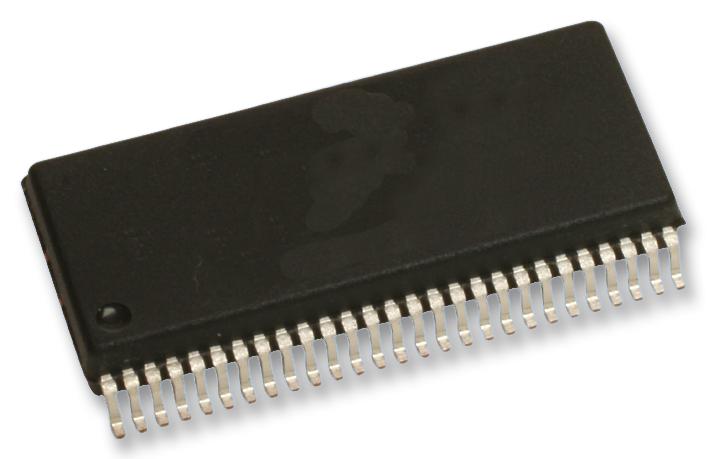

ROHM BD63730EFVE2 Stepping Motor Driver
The ROHM BD63730EFV-E2 is a versatile stepping motor driver suitable for a wide range of applications, including printers, cameras, sewing machines, and robots. It delivers a 3.0A continuous output current and incorporates features like low ON-Resistance DMOS output, multiple drive modes (CLK-IN and PARALLEL-IN), and a built-in spike noise cancel function. The driver's dynamic excitation mode switch and current decay mode switch allow for optimized motor control, while protection circuits such as over-current protection (OCP) and under voltage lock out (UVLO) ensure reliable and safe operation. Its compact size and high heat radiation design make it ideal for space-constrained applications.
ROHM BD63730EFVE2 Stepping Motor Driver Specifications:
- Range of Power Supply Voltage: 19 to 28 V
- Rated Output Current (Continuous): 3.0 A
- Rated Output Current (Peak Value): 3.5 A
- Range of Operating Temperature: -25 to +85 °C
- Output ON-Resistance (Total of Upper and Lower Resistors): 0.40 Ω (Typ)
- Electrostatic discharge: 4kV (HBM specification)
- Package: HTSSOP-B54
- Package Dimensions (W x D x H): 18.50mm x 9.50mm x 1.00mm
- Power Dissipation: 6.2 W (Note 2)
- Input Voltage For Control Pin: -0.2 to +5 V
