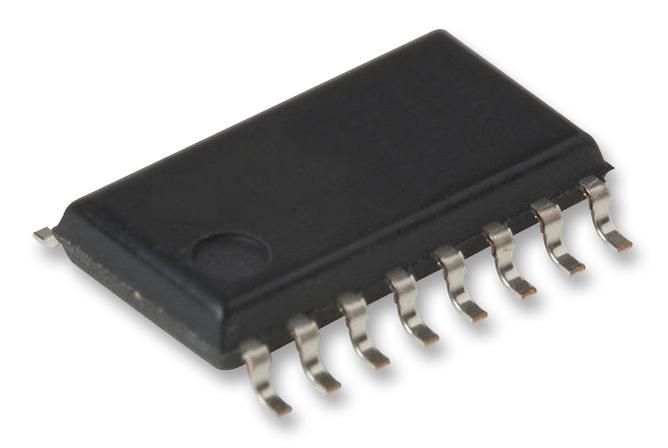

ROHM BU2098FE2 Open Drain Driver
The BU2098F is an open drain output driver with a built-in shift register and latch circuit, supporting up to 8 outputs via I²C-bus interface. It is ideal for driving LEDs, solenoids, and relays, offering maximum 25mA current per output, and operates within Vcc range of 2.7V to 5.5V. Featuring SOP16 package, it supports voltages up to 15V, with an operating temperature between -40°C and +85°C. Suitable for digital control, it ensures reliable performance in various electronic applications.
ROHM BU2098FE2 Open Drain Driver Specifications:
- Package: SOP16, dimensions approximately 10.00mm x 6.20mm x 1.714mm
- Supply Voltage Range: 2.7V to 5.5V
- Output Voltage: OV to 15V
- Maximum Output Current: 25mA per channel
- Operating Temperature: -40°C to +85°C
- Open drain outputs with built-in shift register and latch circuit
- Supports I2C-bus interface, compatible with both fast and standard modes
- Total Power Dissipation: 0.30W, with proper thermal management
- Pin configuration includes SDA, SCL, and multiple output pins (Q0-Q7), in SOP16 package
- Designed for digital control applications including LED lighting, relay operation, and actuator driving
Buy the ROHM Series Serial-in / Parallel out Drivers: BU2098F
Purchase the ROHM Series BU2098F open drain driver online now and benefit from its reliable performance in controlling LEDs, relays, and solenoids. Ideal for digital systems requiring multiple outputs with simple I²C-bus control, this device supports up to 8 outputs with a maximum current of 25mA per channel. Its SOP16 package ensures easy mounting and compact design, making it perfect for efficient electronic control applications. Get yours today and enhance your project’s reliability and control capabilities.
Order your ROHM Series BU2098F open drain driver today and ensure reliable control for your LED, relay, or solenoid projects with high efficiency and quality.
Frequently Asked Questions
Where can I buy ROHM BU2098FE2?
You can click on the BUY or RFQ button to purchase BU2098FE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BU2098FE2?
You can download the BU2098FE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BU2098FE2?
ROHM
