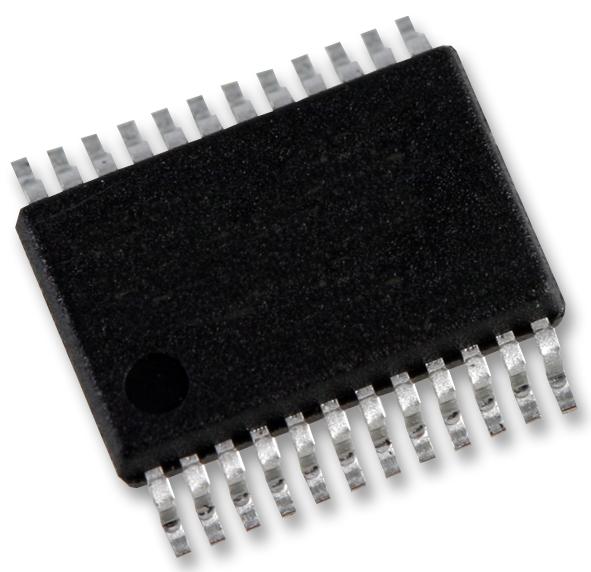

ROHM BD63801EFVE2 Stepping Motor Driver
The ROHM BD63801EFV-E2 is a microminiature stepping motor driver designed for low power consumption and ease of use. It operates on a 19V-28V power supply and delivers a maximum output current of 0.8A. Key features include constant-current PWM control, serial drive mode, built-in spike noise cancel function, and various protection circuits like over-current and under-voltage lockout. This driver is commonly used in PPCs, laser beam printers, scanners, and robotic applications.
ROHM BD63801EFVE2 Stepping Motor Driver Specifications:
- Supplyvoltage: 19～28 V
- Power dissipation: 1.1 W (70mm×70mm×1.6mm glass epoxy board)
- Input voltage for controlpin: -0.2～+5.5 V
- RNF maximum voltage: 0.5 V
- Maximum output current: 0.8 A/phase
- Operatingtemperature range: -25～+85 ℃
- Storage temperature range: -55～+150 ℃
- Junction temperature: +150 ℃
- Output ON resistance: 2.8～3.6 Ω
- Output leak current: <10 μA
- Comparator offset: -20～+20 mV
- Minimum on time: 0.3～1.2 μs
Buy the BD63801EFV-E2 ROHM Stepping Motor Driver | myMectronic
Securely purchase the ROHM BD63801EFV-E2 stepping motor driver and ensure reliable performance for your applications.
Buy Now
Frequently Asked Questions
Where can I buy ROHM BD63801EFVE2?
You can click on the BUY or RFQ button to purchase BD63801EFVE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD63801EFVE2?
You can download the BD63801EFVE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD63801EFVE2?
ROHM
