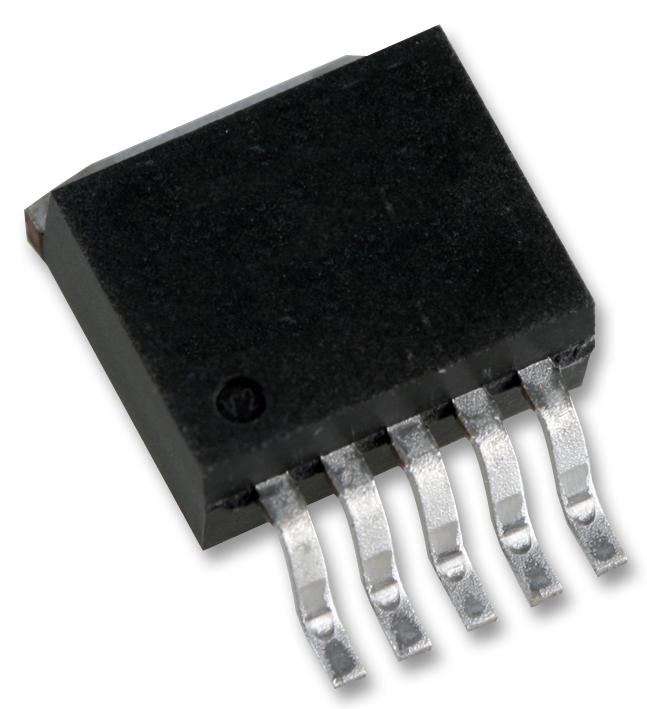

ROHM BD800M5WFP2CE2 Automotive Linear Regulator
The BD800M5WFP2-C is a low dropout linear regulator designed for automotive applications, offering an output current capacity of 500 mA and adjustable output voltage from 1.2 V to 16 V. It features over current and thermal shutdown protections, making it suitable for power supplies directly connected to batteries under harsh conditions. The device includes features such as enable control, low quiescent current, and high precision regulation with ±2% accuracy. The package options include TO263-5 and HRPS, with excellent thermal dissipation characteristics for reliable operation in automotive and industrial environments. It ensures stable power delivery with minimal output ripple and is qualified under AEC-Q100 standards.
ROHM BD800M5WFP2CE2 Automotive Linear Regulator Specifications:
- Output Current Capability: 500 mA
- Output Voltage Range: 1.2 V to 16 V
- Input Voltage Range: 3 V to 42 V
- Dropout Voltage: typically 0.87 V at 500 mA
- Quiescent Current: typically 17 pA (Typ)
- Thermal Shutdown Protection: Yes
- Over Current Protection: Yes
- Package Options: TO263-5, HRPS
- Maximum Junction Temperature: 150 °C
- Operating Temperature Range: -40 °C to +150 °C
- Protection Features: Over Current, Thermal Shutdown
- Adjustable Output via External Resistors
- Package Size (TO263-5): 10.16 mm x 15.10 mm x 4.70 mm
- Package Size (HRPS): 9.395 mm x 10.540 mm x 2.005 mm
- ESR Stability with Ceramic Capacitors (1.47 µF to 1000 µF, ESR up to 5Ω)
Buy the ROHM BD800M5WFP2-C – Reliable Automotive Linear Regulator for Industrial Applications
Order the ROHM BD800M5WFP2-C online now to ensure a dependable power supply solution for automotive and industrial applications. This highly efficient regulator features adjustable output voltage from 1.2 V to 16 V, supports up to 500 mA current, and includes robust protections such as over-current and thermal shutdown. Its compact package options, TO263-5 and HRPS, allow for flexible integration into various electronic systems. Designed to work reliably in harsh environments, it is ideal for direct battery connection in power train, body, audio, and navigation systems, providing stable and efficient power management. Purchase online today and enhance your project’s reliability with this trusted component.
Get ROHM BD800M5WFP2-C today—built for automotive reliability, high efficiency, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy ROHM BD800M5WFP2CE2?
You can click on the BUY or RFQ button to purchase BD800M5WFP2CE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD800M5WFP2CE2?
You can download the BD800M5WFP2CE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD800M5WFP2CE2?
ROHM
