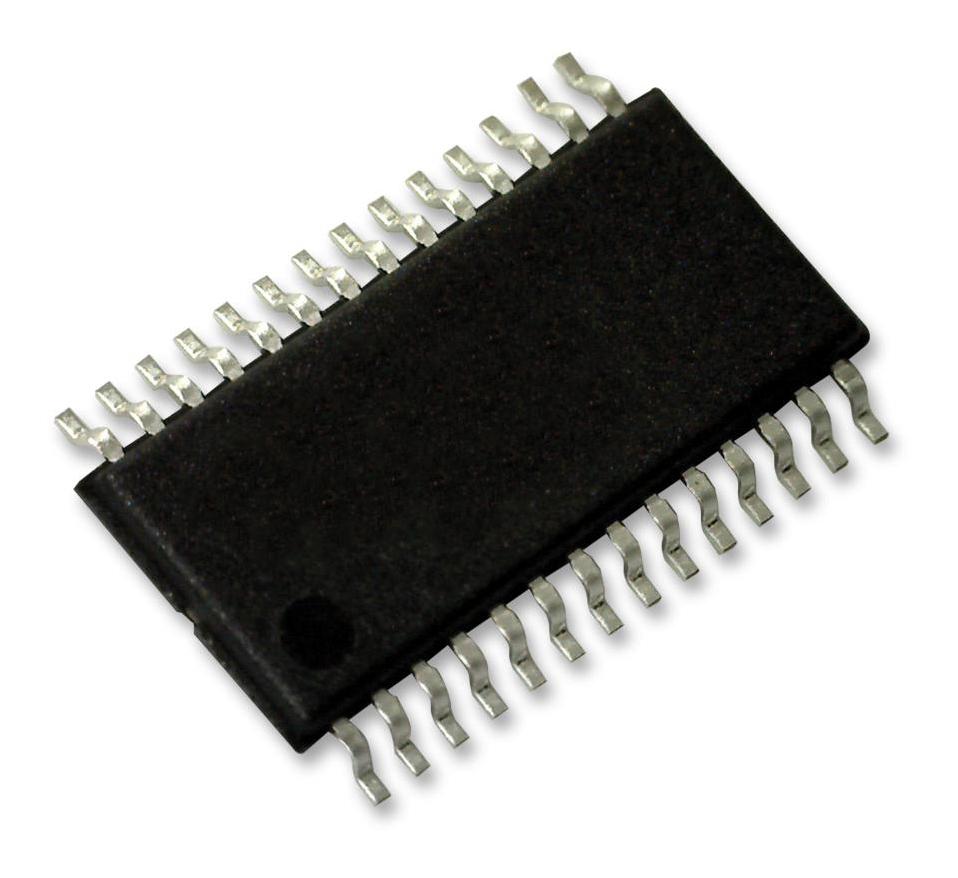

ROHM BD8263EFVME2 Motor Driver IC
The BD8263EFV-M is a 4.5-channel system motor driver IC designed for controlling DC motors and coils in CD/DVD drives within automotive and consumer electronics. It features independent power supplies for motors and coils, built-in protection functions including TSD, UVLO, and short circuit protections, and operates within a temperature range of -40°C to +85°C. This IC is suitable for applications such as car audio systems, providing efficient, reliable motor and coil control with minimal external components.
ROHM BD8263EFVME2 Motor Driver IC Specifications:
- Output Offset Voltage: +50mV (Max)
- Maximum Output Range: 6.0V (Typ)
- Closed Circuit Loop Gain: 17.5dB (Typ)
- Operating Temperature Range: -40°C to +85°C
- Package: HTSSOP-B28
- Built-in protections: TSD, UVLO, Short Circuit
- Power supply for motors: 45V (Min), 10V (typ), 50V (Max)
- Thermal Shutdown activates at 175°C, restores at 150°C
- Maximum Junction Temperature: 150°C, Storage: -55°C to +150°C
- Input impedance: 13-27kΩ (CH1,2), 30-64kΩ (CH3,4)
- VCC Short & GND Short Circuit Protection
- Operation with independent VCC for motors and coils
Buy the ROHM Series Motor Driver IC: BD8263EFV-M
Purchase the ROHM Series motor driver IC BD8263EFV-M online today and enhance your electronic device with reliable motor and coil control. This 4.5-channel IC is perfect for automotive and consumer applications such as CD/DVD drives, offering built-in protection features including thermal shutdown, UVLO, and short circuit protection. Its independent power supplies for motors and coils ensure efficient, stable operation across temperatures from -40°C to +85°C. Compatible with HTSSOP-B28 packaging, it guarantees high performance, safety, and durability for your sophisticated electronic designs.
Order your ROHM Series BD8263EFV-M automotive motor driver IC today and give your electronic projects reliable, protected, high-performance motor control.
Frequently Asked Questions
Where can I buy ROHM BD8263EFVME2?
You can click on the BUY or RFQ button to purchase BD8263EFVME2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD8263EFVME2?
You can download the BD8263EFVME2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BD8263EFVME2?
ROHM
