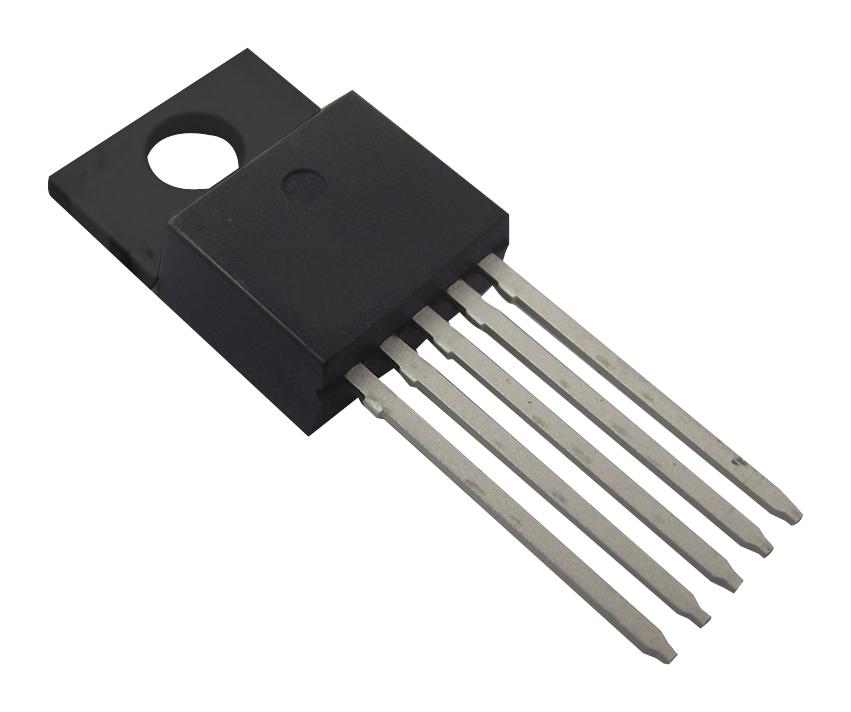

ROHM BD9702T Buck Converter
The BD9702T is a high-efficiency, single-channel buck converter with integrated P-Channel MOSFET, suitable for power management in consumer electronics, industrial equipment, and communication systems. It operates within a voltage range of 8V to 35V, provides output voltages from 1.0V to 32V, and supports up to 3.0A load current. It features built-in over-current and thermal shutdown protection, adjustable output via external resistors, and ON/OFF control via the standby pin, making it ideal for reliable, compact power supply solutions.
ROHM BD9702T Buck Converter Specifications:
- Input Voltage Range: 8V to 35V
- Output Voltage Range: 1.0V to 32V
- Maximum Output Current: 3.0A
- Switching Frequency: 110kHz (Typ)
- FET ON-Resistance: 0.5Q (Typ)
- Standby Current: 0A (Typ)
- Operating Temperature Range: -40°C to +85°C
- Power Dissipation: 2W (Note 1)
- Maximum Switching Current: 3A
- Supply Voltage (VCC-GND): 36V
- Power Dissipation (Pd): 2W
- Thermal Shutdown Activation Threshold: 175°C (Hysteresis 15°C)
- Voltage at INV Pin: 1.00V (Typ)
- Efficiency: 86% (Design Guarantee)
Buy the ROHM Series Buck Converter: 8V-35V, 3A, Integrated FET BD9702T
Discover the high-performance ROHM Buck Converter BD9702T, supporting input voltages from 8V to 35V and delivering up to 3A of output current. It features built-in protection circuits, an adjustable output voltage range from 1.0V to 32V, and operates efficiently at a switching frequency of 110kHz. Compact and reliable, this converter is suitable for a wide array of applications including consumer electronics, industrial systems, and communication devices. Order online today to enhance your power supply solutions with ROHM's trusted technology.
Order your ROHM Series Buck Converter BD9702T today and give your power management designs the dependable quality and efficiency they require.
Frequently Asked Questions
Where can I buy ROHM BD9702T?
You can click on the BUY or RFQ button to purchase BD9702T from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD9702T?
You can download the BD9702T datasheet or visit the ROHM website for support.
Who is the manufacturer of BD9702T?
ROHM
