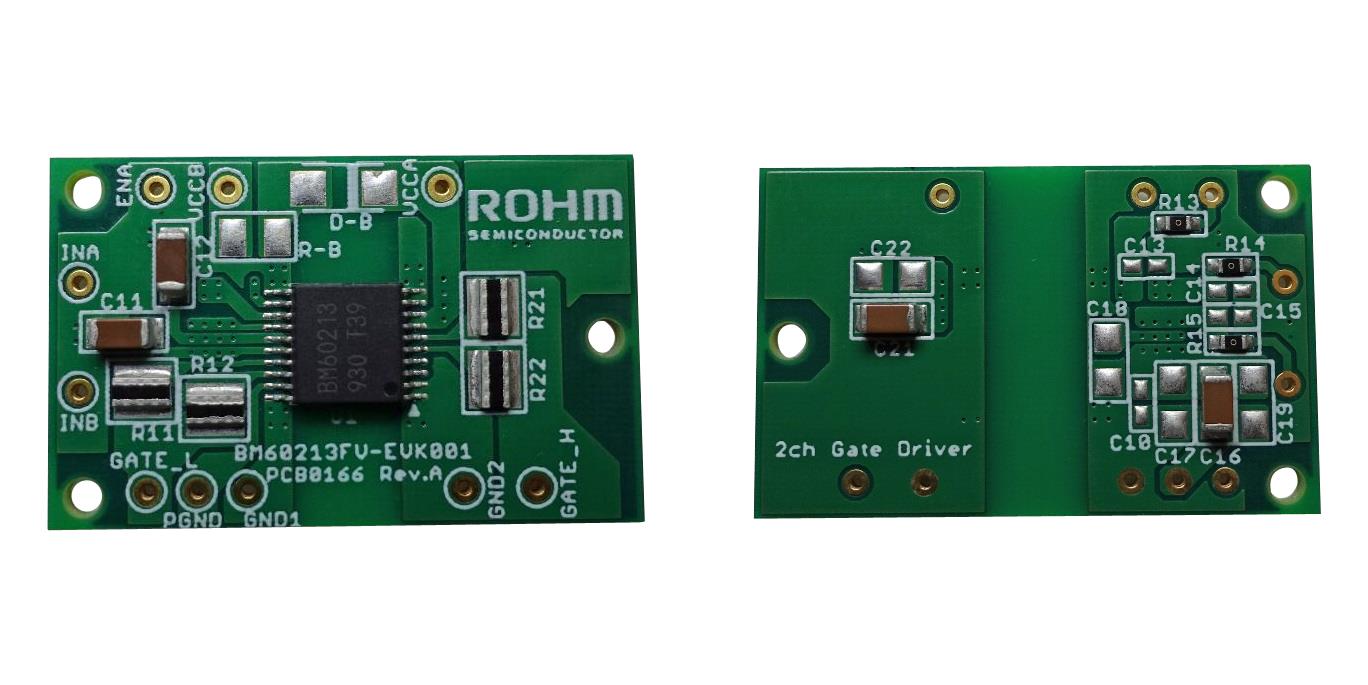

ROHM BM60213FVEVK001 Gate Driver Evaluation Board
The BM60213FV-EVK001 is a comprehensive gate driver evaluation board designed for driving IGBT and MOSFET power devices in high-side and low-side half-bridge applications. It features dual power supply protections including under-voltage lockout (UVLO) at VCCA and VCCB, with operating voltages ranging from 10V to 24V. Suitable for researching and developing inverter, motor drive, and other high-current power applications, this board includes essential input/output controls, safe handling instructions, and detailed schematics for effective circuit evaluation and testing, ensuring safety and reliable performance in power electronics design.
ROHM BM60213FVEVK001 Gate Driver Evaluation Board Specifications:
- High-side floating supply voltage: GND2+10V to GND2+24V
- Low-side supply voltage: 10V to 24V
- Operating temperature: -40°C to +125°C
- High-side supply maximum voltage: 1230V (relative to GND1)
- Low-side supply maximum voltage: 30V
- Input control voltage: -0.3V to +30V
- Board size: 33 x 21 mm
- Material: FR-4, 4-layer PCB
- Input/output control signals: ENA, INA, INB, GATE_H, GATE_L
- Components include resistors, capacitors, and protection devices compatible with power switching applications
- Designed for high-speed switching, inverter control, and motor drives
- Supports testing and evaluation of Rohm’s gate driver family for various industrial power applications
Buy the ROHM BM60213FV – Reliable Gate Driver for Industrial Applications
Purchase the ROHM Gate Driver Evaluation Board now to enable advanced research and development of high-current power device circuits. This board offers safe operation with built-in protections, easy control of high-side and low-side MOSFET and IGBT devices, and comprehensive schematics. Ideal for engineers designing inverters, motor drives, and power switching systems, the BM60213FV-EVK001 guarantees performance and durability, simplifying testing and evaluation processes for highly reliable industrial applications. Order online today and accelerate your power electronics projects with confidence.
Get ROHM BM60213FV today—built for high-speed switching and reliable power control in industrial power electronics.
Frequently Asked Questions
Where can I buy ROHM BM60213FVEVK001?
You can click on the BUY or RFQ button to purchase BM60213FVEVK001 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BM60213FVEVK001?
You can download the BM60213FVEVK001 datasheet or visit the ROHM website for support.
Who is the manufacturer of BM60213FVEVK001?
ROHM
