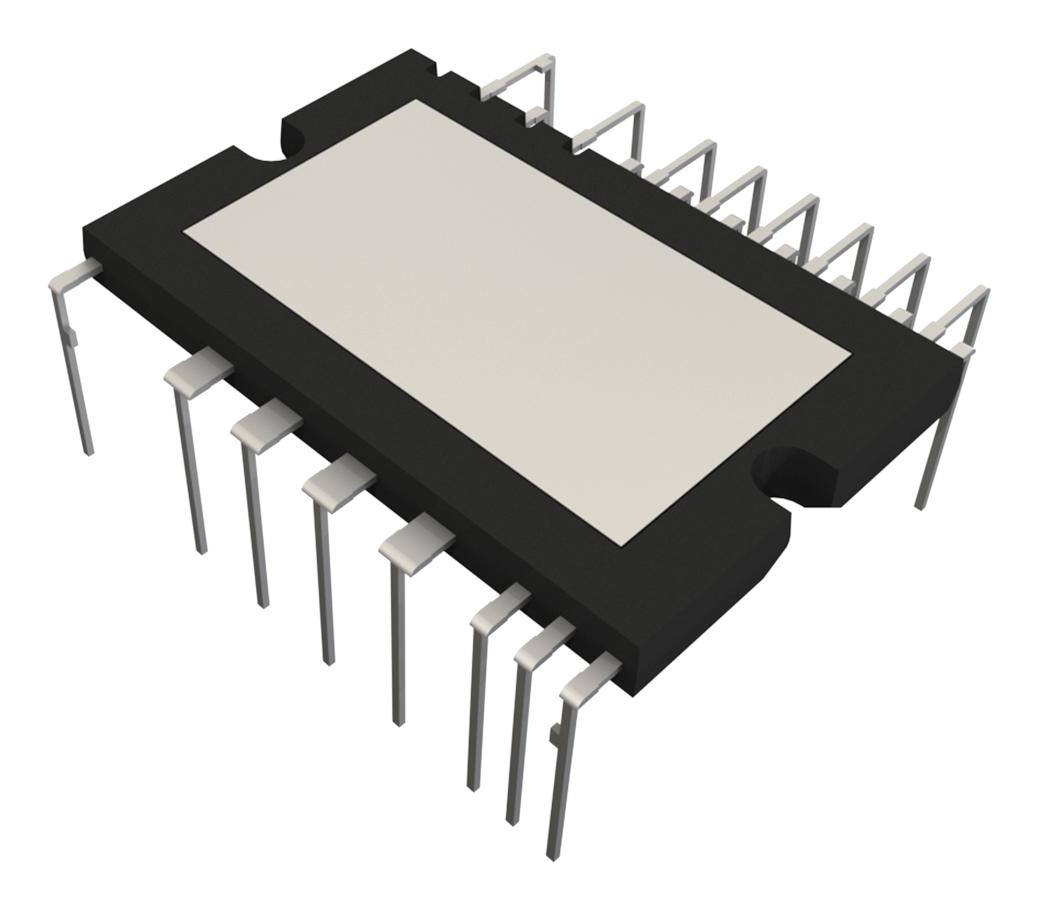

ROHM BM63575SVC Inverter Power Module
The BM63575S-VC is an intelligent power module designed for motor control applications, featuring a 600V IGBT and integrated gate drivers, bootstrap diodes, and flywheel diodes. It supports 3-phase inverter configurations with a current capacity of 20A, suitable for AC100-240V motor control, compressor motors, and appliances like air conditioners and washing machines. Built with SOI process and high-level protections such as UVLO and SCP, it ensures reliable and efficient operation in high-voltage environments, with a case temperature range of -25°C to +115°C and junction temperature up to 150°C.
ROHM BM63575SVC Inverter Power Module Specifications:
- Collector-Emitter Voltage Vces: 600V
- Collector Current Ic: 20A
- Peak collector current Ipeak: 460A (less than 1ms)
- Collector Power Dissipation Po: 44W
- Junction Temperature Tjmax: 150°C
- Module Case Temperature Tc: -25 to +115°C
- Control Supply Voltage Vcc: 20V
- Reverse Voltage of Diodes: 600V
- Maximum Storage Temperature Tsig: -40 to +125°C
- Isolation Voltage Viso: 1500Vrms
- Thermal Resistance RθJC (Inverter IGBT): 8°C/W
- Thermal Resistance RθJC (FWD): 3.9°C/W
- On-Resistance Rds(on): Typical 0.85-1.15V at 20A
- Switching times: Turn-on delay 1.00-2.20μs, Turn-off delay 1.35-1.95μs
- Dimensions: Not specified, designed for mounting with recommended torque of 0.69 N-m
- Operating temperature range: -25°C to +125°C
Buy the Buy ROHM BM63575SVC Inverter Power Module 600V 20A Online
Purchase the ROHM BM63575SVC today to ensure your motor control systems operate efficiently with high-voltage IGBTs and integrated gate drivers. Perfect for AC inverters, compressor motors, and household appliances like air conditioners and washing machines. Designed with robust protection features including UVLO and SCP, it offers stable operation between -25°C to +115°C case temperature. Its compact design, high thermal tolerance, and outstanding switching characteristics make it ideal for demanding high-voltage applications, providing you with dependable and efficient control solutions online.
Order your ROHM BM63575SVC inverter power module today and enhance your motor control projects with high efficiency and reliable performance.
Frequently Asked Questions
Where can I buy ROHM BM63575SVC?
You can click on the BUY or RFQ button to purchase BM63575SVC from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BM63575SVC?
You can download the BM63575SVC datasheet or visit the ROHM website for support.
Who is the manufacturer of BM63575SVC?
ROHM
