ROHM BM6109FVCE2 High Voltage Gate Driver
The BM6109FV-C is a high-voltage, highly integrated gate driver with galvanic isolation up to 2500 Vrms, designed for automotive and industrial inverter applications. It features fault detection outputs, UVLO, SCP, OCP, overheat protection, active Miller clamping, and temperature monitoring, ensuring reliable operation under demanding environments. Its SSOP-B28W package measures 9.2 mm x 10.4 mm x 2.4 mm, and it supports temperatures from -40°C to +125°C. Suitable for automotive inverters, DC-DC converters, industrial inverters, and UPS systems, it provides robust, safety-critical switching capabilities.
ROHM BM6109FVCE2 High Voltage Gate Driver Specifications:
- Isolation Voltage: 2500 Vrms
- Package: SSOP-B28W (9.2 mm x 10.4 mm x 2.4 mm)
- Operating Temperature Range: -40°C to +125°C
- Input Pulse Width: 600 ns (min)
- Input/Output Delay Time: 700 ns (max)
- Maximum Gate Drive Voltage: 18 V
- Fault Detection: FLT1, FLT2 outputs for UVLO, SCP, OCP, OT
- Power Supply Voltage: VCC1 (4.5 V to 5.5 V), VCC2 (14 V to 18 V)
- Protection features: UVLO, SCP, OCP, OT, soft turn-off, active Miller clamp
- Applications: Automotive inverter, DC-DC converter, industrial inverter, UPS system

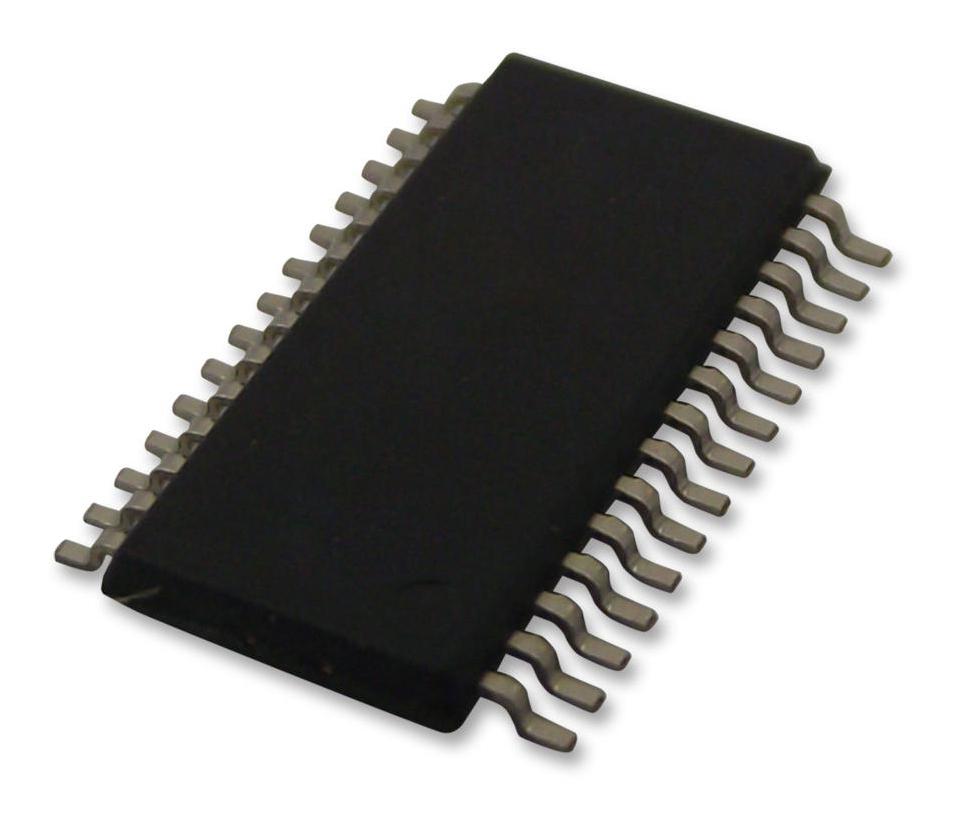

Buy the Buy ROHM High Voltage Gate Driver Part Number BM6109FV-C Online
Purchase the ROHM BM6109FV-C high voltage gate driver online today to upgrade your inverter systems with robust galvanic isolation up to 2500 Vrms. This comprehensive driver features fault detection outputs, UVLO, SCP, OCP, and overheat protection, ensuring safety and reliability in automotive and industrial applications. Its compact SSOP-B28W package measures 9.2 mm x 10.4 mm x 2.4 mm, supporting operation from -40°C to +125°C. Ensure your power conversion systems operate efficiently with this essential, high-performance component.
Order your ROHM High Voltage Gate Driver BM6109FV-C today and ensure your inverter projects benefit from reliable galvanic isolation and protection features.
Frequently Asked Questions
Where can I buy ROHM BM6109FVCE2?
You can click on the BUY or RFQ button to purchase BM6109FVCE2 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BM6109FVCE2?
You can download the BM6109FVCE2 datasheet or visit the ROHM website for support.
Who is the manufacturer of BM6109FVCE2?
ROHM
