ROHM BM2P0361Z Power Supply Controller
This PWM type DC/DC converter IC includes a built-in 650 V switching MOSFET, supporting both isolated and non-isolated configurations. Operating in an optimal power supply voltage range of 8.9 V to 26.0 V, it features frequency hopping to reduce EMI, burst operation for low power consumption, and over-current, over-voltage, and under-voltage protections. Suitable for AC adapters, household appliances, and consumer electronics, it ensures efficient power conversion with a switching frequency of 65 kHz, soft start, and thermal shutdown for safety and reliability in varied operating conditions.
ROHM BM2P0361Z Power Supply Controller Specifications:
- Operating Power Supply Voltage Range: 8.9 V to 26.0 V
- DRAIN Voltage: 650 V (Max)
- Circuit Current (ON): BM2P0161: 0.90 mA(Typ), BM2P0361: 0.65 mA(Typ)
- Oscillation Frequency: 65 kHz(Typ)
- MOSFET ON Resistance: BM2P0161: 1.0 Ω(Typ), BM2P0361: 3.0 Ω(Typ)
- Package: DIP7K, 9.20 mm x 6.35 mm x 4.30 mm
- Temperature Range: -40°C to +105°C
- Switching Frequency: 65 kHz
- Protection Circuits: VCC UVLO, VCC OVP, Over-Current, Over-Voltage, Short and Open Pin Protections
- Built-in Frequency Hopping and Burst Operation
- Soft Start and Thermal Shutdown functions
- Application: AC/DC power supplies for household appliances and consumer electronics

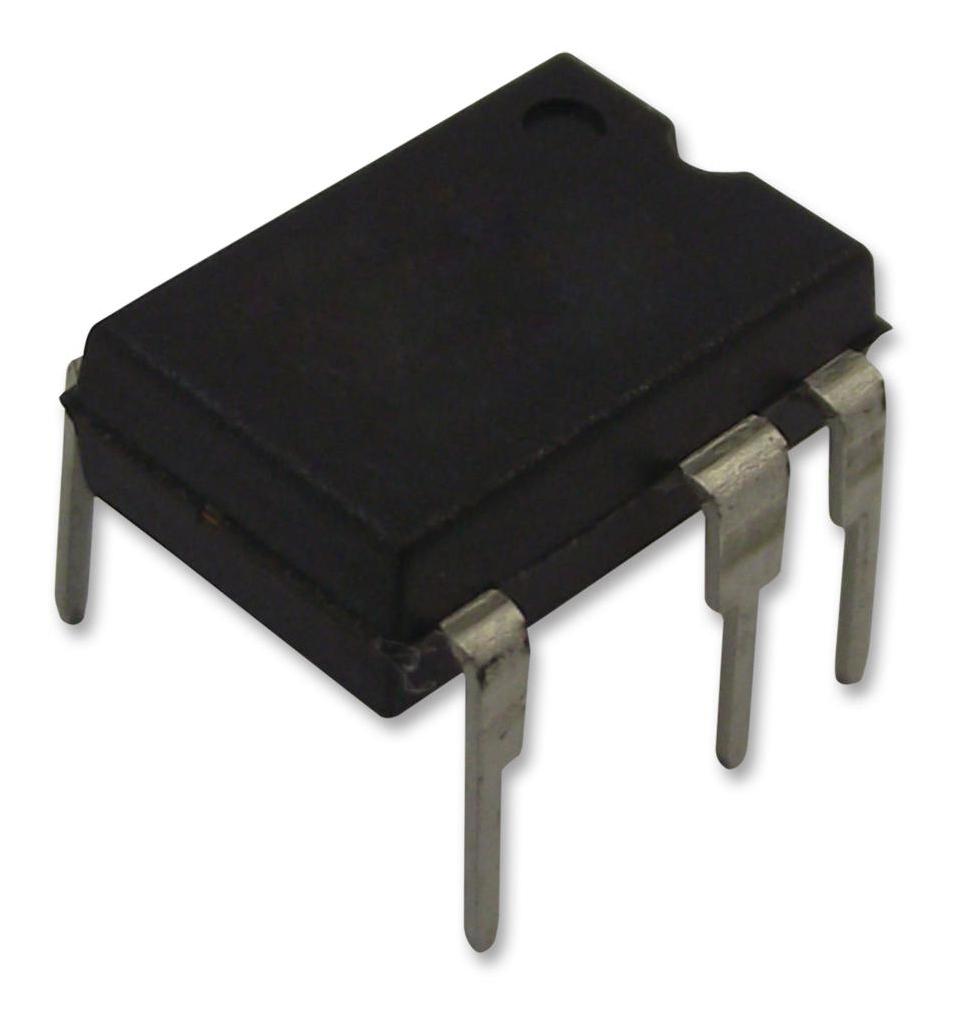

Buy the ROHM Series PWM Power Controller: BM2P0361
Discover the ROHM BM2P0361 power supply controller, engineered for efficient AC/DC conversion. Featuring built-in 650 V MOSFETs, frequency hopping, burst mode, and multiple protections, it ensures low power consumption and high reliability. Its flexible design supports both isolated and non-isolated configurations, making it ideal for household appliances, TVs, and other consumer electronics. Easy to implement with a compact DIP7K package, this converter IC guarantees stable operation across a wide temperature range, delivering top performance and peace of mind in your power designs.
Buy ROHM BM2P0361 now and experience unmatched reliability and power efficiency for household and consumer electronic power supplies.
Frequently Asked Questions
Where can I buy ROHM BM2P0361Z?
You can click on the BUY or RFQ button to purchase BM2P0361Z from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BM2P0361Z?
You can download the BM2P0361Z datasheet or visit the ROHM website for support.
Who is the manufacturer of BM2P0361Z?
ROHM
