ROHM BM61S41RFVEVK002 Gate Driver Module

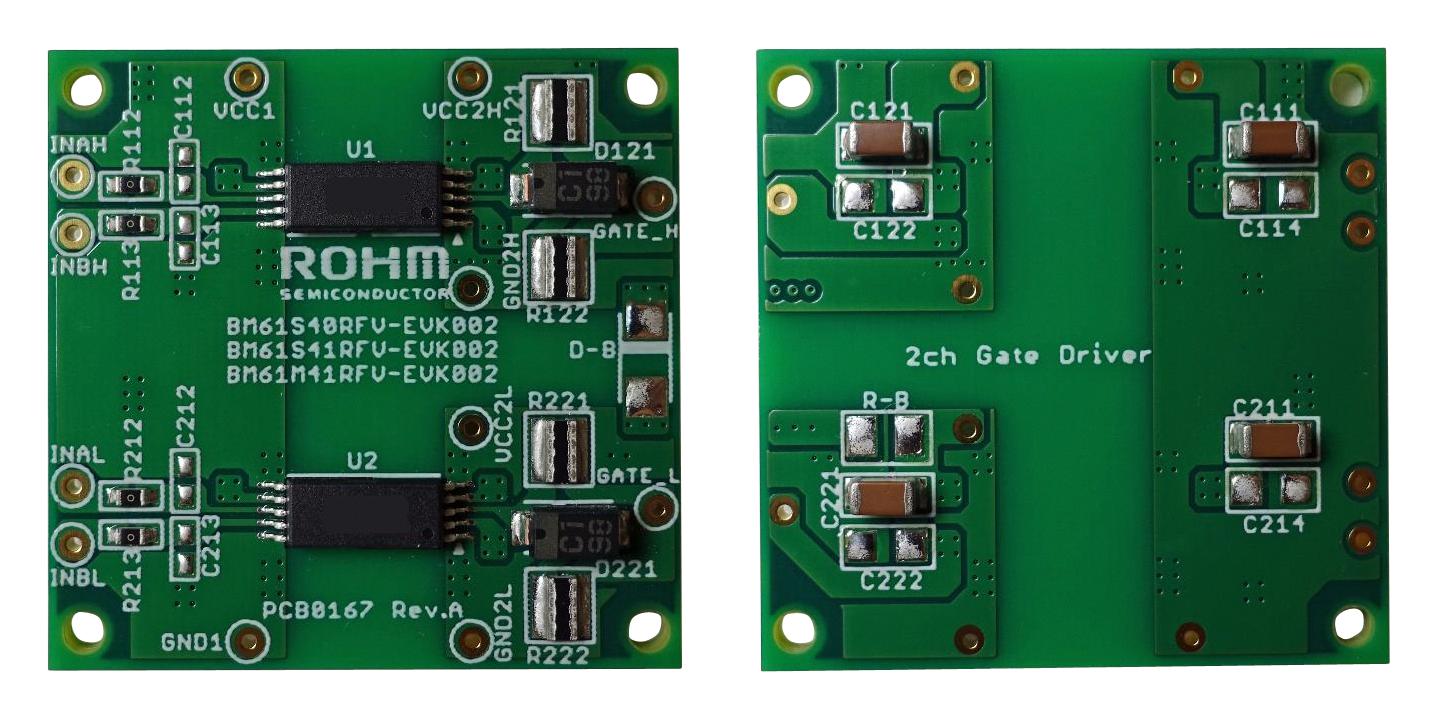

The BM61S41RFV-EVK002 is an isolated gate driver evaluation board designed for high-voltage SiC MOSFET applications. It can drive two SiC power devices in half-bridge configurations, supporting input power supply voltages from 4.5 to 5.5 V and output voltages from 16 to 24 V. Features include UVLO protections for input and output sides, active Miller clamping, and compatibility with ROHM’s gate driver family. The board facilitates testing and design of SiC MOSFET gate drive circuits for high-efficiency applications in industrial and automotive sectors.
ROHM BM61S41RFVEVK002 Gate Driver Module Specifications:
- Input-side Supply Voltage: 45 to 55 V
- Output-side Supply Voltage: 16 to 24 V
- Operating Temperature Range: -40 to +125°C
- Max Input-side Voltage: -0.3 to +7.0 V
- Max Output-side Voltage: -0.3 to +30.0 V
- Board Size: 33 x 32 mm
- Material: FR-4, 4-layer PCB
- Protection: UVLO for input and output sides, active Miller clamp
- Designed for high-voltage SiC MOSFETs in half-bridge configurations
- Supports use with various ROHM SiC power devices
Buy the Buy ROHM BM61S41RFV-C Part Number EVK002 Online
Purchase the ROHM BM61S41RFV-C evaluation board online for precise high-voltage SiC MOSFET gate drive testing. This versatile module supports half-bridge configurations, provides built-in protections such as UVLO, and features active Miller clamp circuitry to enhance performance. Ideal for design and evaluation in industrial and automotive applications, it ensures safe operation with a compact 33 x 32 mm size. Equipped with high-quality components, this board simplifies testing, prototype development, and integration of SiC power devices for energy-efficient systems.
Get ROHM BM61S41RFV-C evaluation board today—designed for reliable high-voltage SiC MOSFET gate driving and efficient half-bridge testing.
Frequently Asked Questions
Where can I buy ROHM BM61S41RFVEVK002?
You can click on the BUY or RFQ button to purchase BM61S41RFVEVK002 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BM61S41RFVEVK002?
You can download the BM61S41RFVEVK002 datasheet or visit the ROHM website for support.
Who is the manufacturer of BM61S41RFVEVK002?
ROHM
