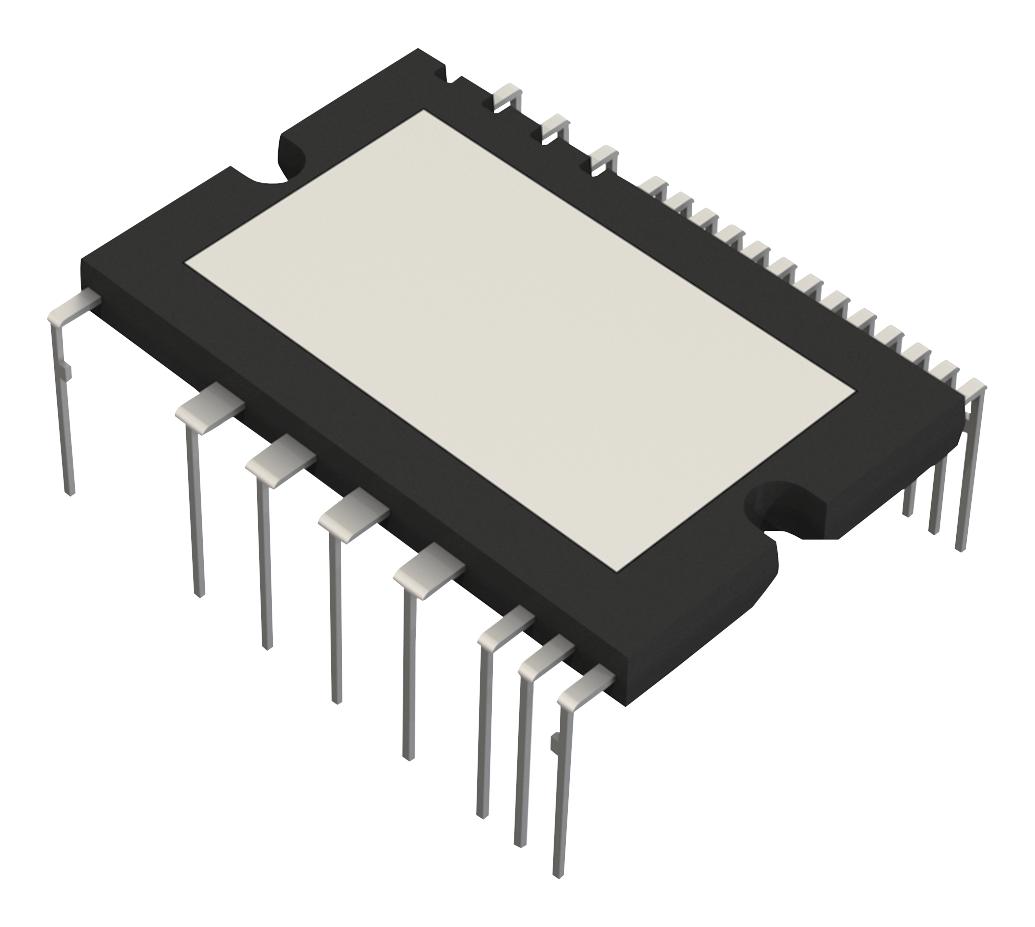

ROHM BM63563SVA Inverter Power Module
The BM63563S-VA is an Inverter Power Module designed for low-speed motor drive applications, including compressors in air conditioners, washing machines, and refrigerators. It features integrated gate drivers, bootstrap diodes, and IGBTs optimized for switching up to 6kHz. With a collector-emitter voltage of 600V and a collector current of 10A, it ensures reliable performance in voltage less than 400V. The module operates within a temperature range of -25°C to +100°C, offering high efficiency and robustness for motor control systems.
ROHM BM63563SVA Inverter Power Module Specifications:
- Collector-Emitter Voltage: 600V
- Collector Current: 10A
- Power Dissipation: 33W at Tc=25°C
- Module Case Temperature: -25°C to +100°C
- Junction Temperature: 150°C
- Package Types: HSDIP25, HSDIP25VC
- Dimensions: 38.0mm x 24.0mm x 3.5mm
- Built-in bootstrap diode for high side drive
- Low saturation voltage IGBTs with Vcesat: 1.5V(Typ)
- FWD Forward Voltage: 1.5V(Typ)
- FWD Reverse Recovery Time: 100ns(Typ)
- Suitable for 3-phase DC/AC inverter applications
- Operating frequency: up to 6kHz
- Control supply voltage: 13.5V to 16.5V (HVIC and LVIC)
- Control input voltage: 3.3V/5V logic compatible
- Isolation voltage: 1500Vrms
- Temperature sensing: analog output for temperature monitoring
Buy the Buy ROHM Inverter Power Module Part Number BM63563S-VA Online
Purchase the ROHM BM63563S-VA inverter power module online today to enhance your motor control projects. This high-reliability module features integrated gate drivers, bootstrap diodes, and IGBTs optimized for low-speed switching applications such as compressors and HVAC systems. With a collector-emitter voltage of 600V and a current capacity of 10A, it ensures efficient performance within a wide operating temperature range. Designed for easy integration, it offers robust insulation and temperature sensing for precise control, making it ideal for modern industrial and household appliances.
Get ROHM BM63563S-VA today—built for low-speed motor control with reliable IGBT switching and integrated gate drivers for durable HVAC and appliance systems.
Frequently Asked Questions
Where can I buy ROHM BM63563SVA?
You can click on the BUY or RFQ button to purchase BM63563SVA from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BM63563SVA?
You can download the BM63563SVA datasheet or visit the ROHM website for support.
Who is the manufacturer of BM63563SVA?
ROHM
