ROHM BM63963SVC High-Speed Inverter Module
The BM63963S-VC is a 600V IGBT intelligent power module designed for high-speed motor control applications, including inverter drives for AC motors, washing machines, and fans. It integrates gate drivers, bootstrap diodes, and high-speed IGBTs optimized for efficient switching. The module features a compact package, built-in protections, and temperature monitoring capabilities. Its robust construction ensures reliable operation under high voltage and current loads, making it suitable for demanding inverter drives requiring precise control and quick response times.
ROHM BM63963SVC High-Speed Inverter Module Specifications:
- Collector-Emitter Voltage Vcesat: 1.7V(Typ)
- Emitter-Collector Voltage: 600V
- Collector Current: 10A
- Collector Power Dissipation: 33W
- Junction Temperature: 150°C
- Module Case Temperature Tc: -25 to +100°C
- Reverse Recovery Time tr: 100ns(Typ)
- Built-in bootstrap diode, high-voltage level shifting circuit
- Control power supply voltage: 20V(max)
- Peak collector current: 20A for less than 1ms
- Switching delay times: 0.50-2.50us depending on type
- Isolation voltage: 1500 Vrms
- Package: HSDIP25, dimensions approximately 24.0mm x 38.0mm x 3.5mm
- Thermal resistance: 3.7°C/W (module case to ambient)

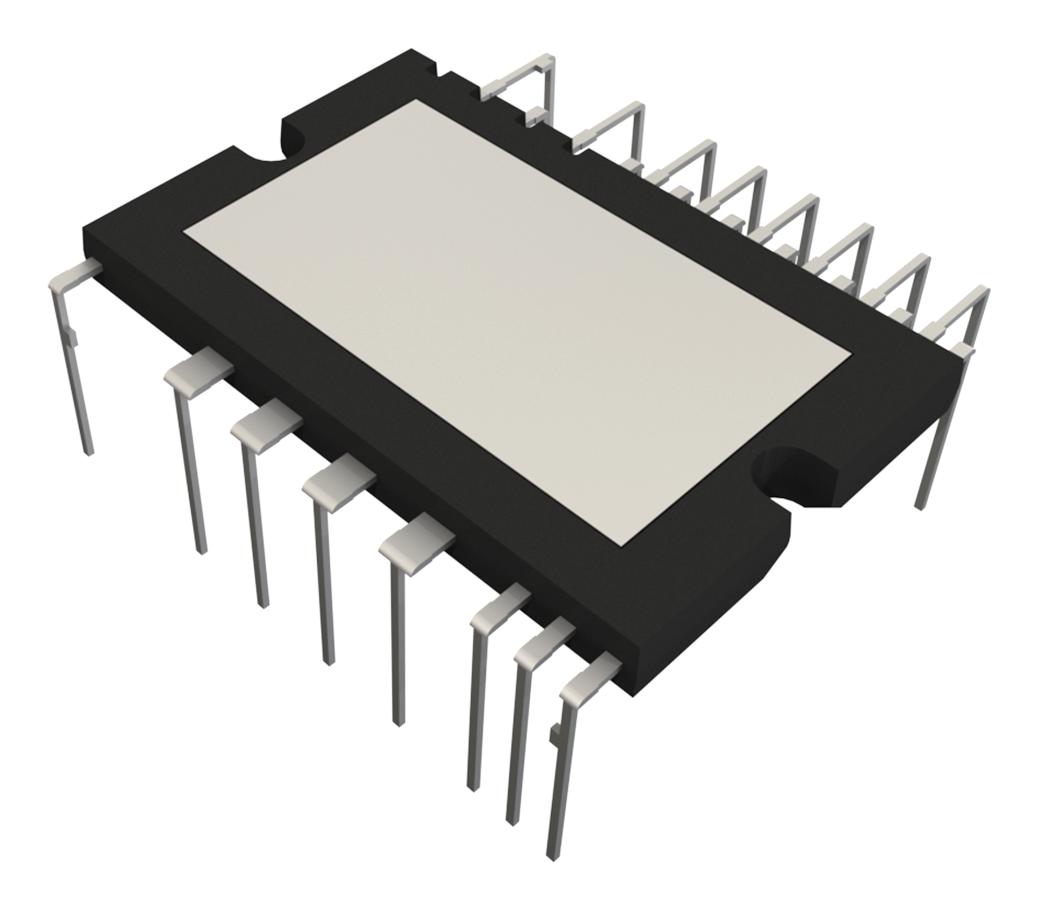

Buy the Buy ROHM BM63963S-VC Part Number BM63963S-VC Online
Compact and highly reliable, the ROHM BM63963S-VC inverter module integrates high-speed IGBTs, built-in protection features, and advanced gate driver circuits. Ideal for inverter drives in appliances like washing machines and fans, it ensures efficient performance under high-voltage conditions. Its robust construction, thermal stability, and short circuit protections make it suitable for demanding industrial and household applications. Purchase online now to enhance your motor control systems with this top-grade intelligent power module, ensuring precise control and durability in your projects.
Buy ROHM BM63963S-VC now and experience unmatched reliability and high-speed switching performance for motor control applications.
Frequently Asked Questions
Where can I buy ROHM BM63963SVC?
You can click on the BUY or RFQ button to purchase BM63963SVC from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BM63963SVC?
You can download the BM63963SVC datasheet or visit the ROHM website for support.
Who is the manufacturer of BM63963SVC?
ROHM
