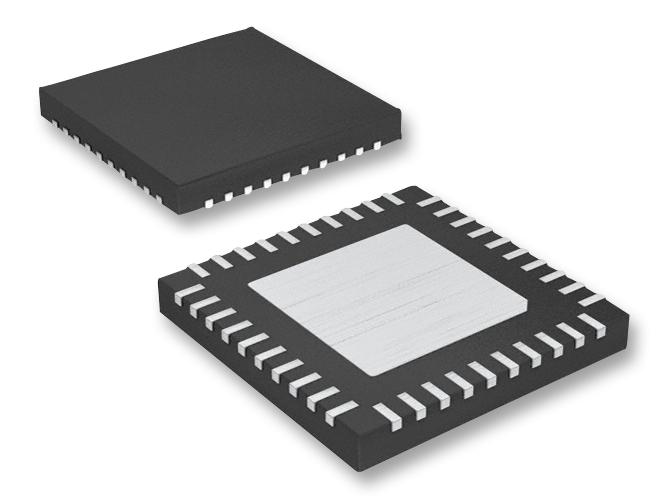

ROHM BM92A34MWVZE2 USB Power Controller
BM92A34MWV-Z is a comprehensive USB Type-C Power Delivery controller supporting full baseband communication, SOP signaling, and alternate modes. It features type-C specification compatibility, integrated protocol engine, dual N-channel MOSFET switch drivers with backflow prevention, VCONN switch, and dead battery support operating from a 9V initial voltage. Its versatile design allows independent operation and code updates via SMBus, making it ideal for consumer devices like laptops and tablets. The compact UQFN40V5050A package offers reliable performance over -30°C to +105°C, ensuring robust power delivery in various applications.
ROHM BM92A34MWVZE2 USB Power Controller Specifications:
- Bus Voltage Range: 4.75 V to 20 V
- Operating Temperature Range: -30°C to +105°C
- Sleep Power Consumption: 0.4 mW (Typ)
- Package: UQFN40V5050A, Dimensions: 5.00 mm x 5.00 mm x 1.00 mm
- Supports USB Type-C Specification and Power Delivery Specification
- Supports Display Port Control and Alternate Modes
- Supports SOP, SOP’, SOP” signaling
- Supports Dead Battery Operation from 9 V initial voltage
- VCONN Switch with built-in Control, VBUS Discharge Function
- Supports DFP/UFP/DRP Mode with cable orientation detection
- Includes External EEPROM for code updates
- Power Path Control via dual N-channel MOSFETs with backflow prevention
- Supports baseband PBPD communication and host interface
Buy the ROHM BM92A34MWV-Z – Reliable USB Type-C Power Delivery for Industrial Applications
Order the ROHM BM92A34MWV-Z online today to get a versatile and highly reliable USB Type-C Power Delivery controller. Perfect for laptops and tablets, it offers full compatibility with USB standards, dead battery support, and easy code updates via SMBus. This compact, high-performance device ensures safe power management, including dual MOSFET control, VCONN switching, and VBUS discharge features, providing a robust solution for consumer electronic devices with demanding power needs.
Buy ROHM BM92A34MWV-Z now and experience unmatched reliability and performance in USB Power Delivery and charging solutions.
