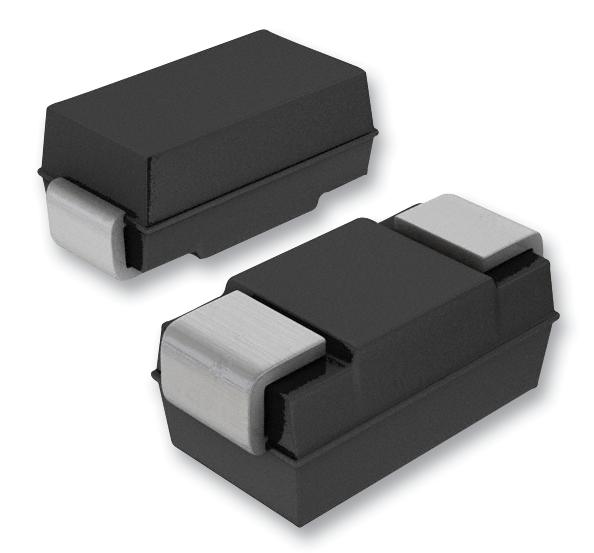

ROHM RR2L4SDDTE25 Rectifier Diode
The RR2L4SDD is a high-quality, low forward voltage rectifier diode designed for general rectification applications. It is AEC-Q101 qualified, ensuring reliability in automotive and industrial environments. With a maximum repetitive peak reverse voltage of 400V and an average current of 2A at 96°C, it features a silicon diffused junction for enhanced durability. This surface-mount diode fits JEDEC SOD-106 package standards, making it suitable for compact, efficient power circuits. Its robust construction supports surge currents up to 50A, making it ideal for various high-reliability power rectification needs.
ROHM RR2L4SDDTE25 Rectifier Diode Specifications:
- Repetitive peak reverse voltage: 400 V
- Reverse voltage: 400 V
- Average current: 2 A at 96°C
- Non-repetitive surge current: 50 A
- Operating junction temperature: 150°C
- Storage temperature: -55 to +150°C
- Forward voltage: 0.9 - 1.1 V at 2A
- Reverse current: 0.01 - 10 pA at 400 V
- Package: JEDEC SOD-106
- Dimensions: Land size 6x02 mm, land size figure 3 mm
- Features low forward voltage, small power mold type, high reliability
Buy the Buy ROHM Rectifier Diode Part Number RR2L4SDD Online
Purchase the ROHM RR2L4SDD rectifier diode online today to ensure reliable power conversion in your automotive or industrial power circuits. This AEC-Q101 qualified diode features a 400V reverse voltage, 2A current capacity, and a compact SOD-106 package, making it perfect for space-saving applications. Its high surge current capability of 50A and low forward voltage support efficient, durable operation in demanding environments. Buying online offers quick delivery, authentic quality, and technical support for your critical power needs.
Buy ROHM RR2L4SDD diode now and experience unmatched reliability and efficient power rectification for automotive and industrial applications.
Frequently Asked Questions
Where can I buy ROHM RR2L4SDDTE25?
You can click on the BUY or RFQ button to purchase RR2L4SDDTE25 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RR2L4SDDTE25?
You can download the RR2L4SDDTE25 datasheet or visit the ROHM website for support.
Who is the manufacturer of RR2L4SDDTE25?
ROHM
