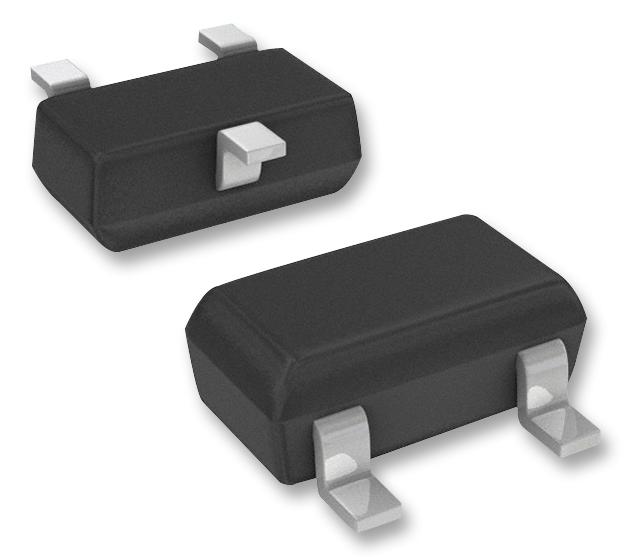

ROHM DAN202KFHT146 High Speed Switching Diode
The high-speed switching diode DAN202KFHT146 is a compact, reliable component designed for fast switching applications in electronic circuits. Qualified under AEC-Q101, it features an epitaxial planar structure with a package code T146, making it ideal for automotive and industrial use. With a VR of 80V, IF of 300mA, and recovery time of 4.0ns, it offers excellent performance and durability under demanding conditions. Its small SOT-346 package ensures easy integration into space-constrained designs, providing efficient circuit operation in high-speed switching scenarios.
ROHM DAN202KFHT146 High Speed Switching Diode Specifications:
- Package Code: SOT-346 (SC-59, SMD3)
- Reverse Voltage: 80V
- Repetitive Peak Reverse Voltage: 80V
- Average Rectified Forward Current: 100mA
- Forward Current: 300mA
- Peak Forward Surge Current: 4000mA (1s)
- Power Dissipation: 200mW
- Junction Temperature: -55°C to 150°C
- Forward Voltage: Max 1.2V at 100mA
- Reverse Current: Max 0.1pA at VR=70V
- Capacitance between Terminals: Max 3.5pF at VR=6V, 1.0MHz
- Reverse Recovery Time: Max 4.0ns at VR=6V, IF=5.0mA
- Dimensions (A): 0.39–0.43 inches (9.9–11.0mm), (others detailed per datasheet)
Buy the ROHM Series T146 High Speed Switching Diode: DAN202KFHT146
Enhance your electronic projects with the reliable high-speed switching diode DAN202KFHT146 by ROHM. Designed for automotive and industrial applications, it offers a VR of 80V and a forward current of 300mA, ensuring fast switching with a recovery time of just 4ns. Its compact SOT-346 package simplifies integration into space-constrained designs, providing robust performance and durability. Purchase online today and benefit from quick delivery and guaranteed quality to keep your devices running smoothly and efficiently.
Order your ROHM Series T146 DAN202KFHT146 high-speed switching diode today and ensure reliable, efficient performance in your automotive or industrial circuits.
Frequently Asked Questions
Where can I buy ROHM DAN202KFHT146?
You can click on the BUY or RFQ button to purchase DAN202KFHT146 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part DAN202KFHT146?
You can download the DAN202KFHT146 datasheet or visit the ROHM website for support.
Who is the manufacturer of DAN202KFHT146?
ROHM
