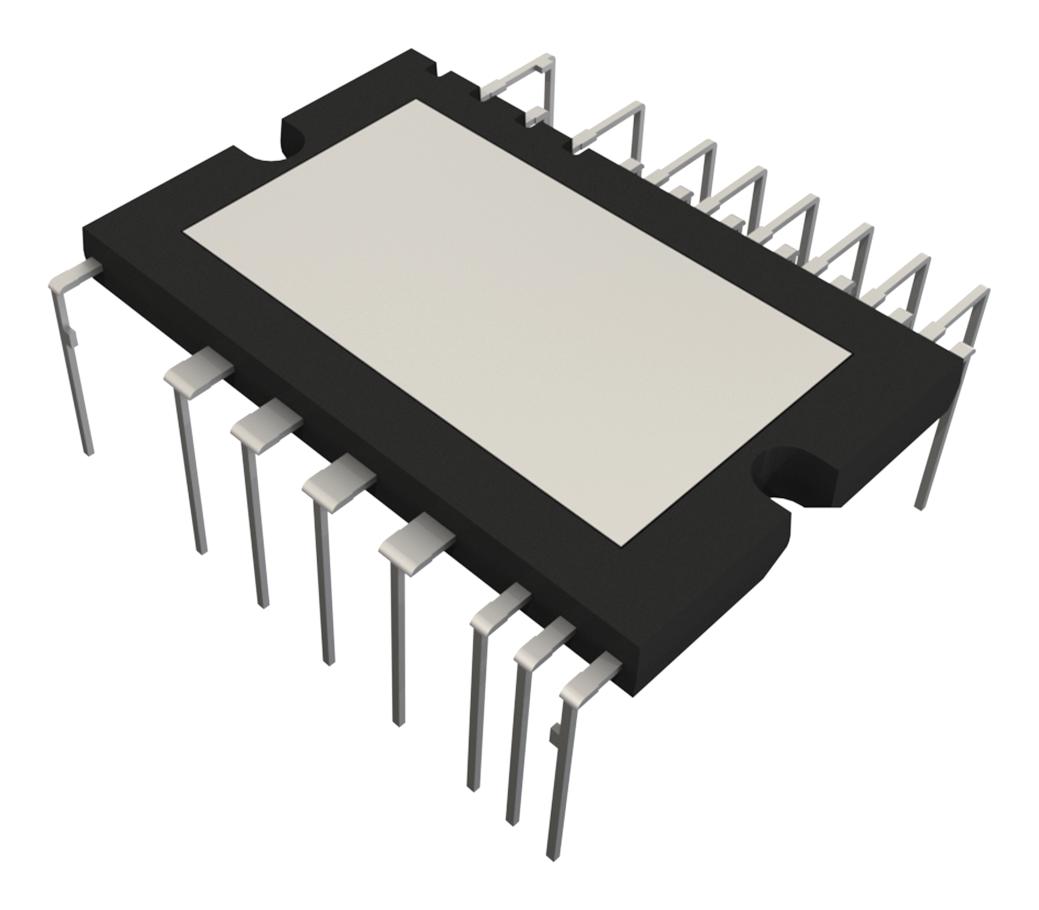

ROHM BM63573SVC Inverter Power Module
The BM63573SVC is an intelligent power module designed for motor control applications, specifically utilizing 600V IGBT transistors. It integrates gate drivers, bootstrap diodes, and flywheel diodes, enabling efficient three-phase inverter operation at 10A. The module features high-temperature operation from -25°C to +115°C, low switching delay times, and protections such as UVLO and SCP. Ideal for compressor and air conditioner motor control, it offers compact size, robust design, and UL recognition for reliable performance in demanding environments.
ROHM BM63573SVC Inverter Power Module Specifications:
- Collector-Emitter Voltage: 600 V
- Collector Current: 10 A
- Power Dissipation: 33 W
- Junction Temperature: 150°C
- Operating Temperature Range: -25°C to +115°C
- Control Power Supply: 20 V
- Bootstrap Diode Reverse Voltage: 600 V
- Reverse Recovery Time of Diodes: 80 ns
- Switching Delay Times: 0.65 to 1.60 μs
- Protection Functions: UVLO, SCP
- Package Type: HSDIP25 (Long pin or Staggered types)
- Isolation Voltage: 1500 Vrms
- Storage Temperature: -40°C to +125°C
- Control Input Voltage: 0 to 5.5 V
- Output Current: Up to 10A
Buy the ROHM Series Inverter Power Module: BM63573SVC
Purchase the ROHM BM63573SVC inverter power module online now. Engineered for efficient motor control with 600V IGBT, integrated gate drivers, bootstrap diodes, and protection circuits. Its compact, robust design supports high thermal range from -25°C to +115°C, making it ideal for air conditioners, compressors, and household appliances. Enjoy fast delivery and reliable quality from authorized distributors. This module ensures optimal performance, safety, and durability for industrial and consumer applications, simplifying your design process and enhancing device reliability.
Get ROHM BM63573SVC today—optimized for high-performance motor control and long-lasting reliability.
Frequently Asked Questions
Where can I buy ROHM BM63573SVC?
You can click on the BUY or RFQ button to purchase BM63573SVC from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BM63573SVC?
You can download the BM63573SVC datasheet or visit the ROHM website for support.
Who is the manufacturer of BM63573SVC?
ROHM
