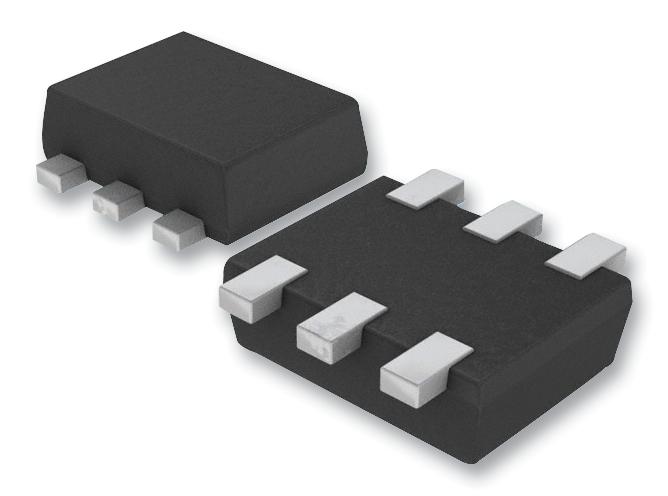

ROHM EMD53T2R Digital Transistor
The EMD53 is a complex digital transistor with built-in bias resistors, ideal for switching, inverter, and interface circuits. It features independent transistor elements for reduced interference and cost-effective mounting with EMT packages suitable for automatic mounting. The device supports high-speed switching and low power dissipation, making it perfect for compact, high-performance electronic applications. Its robust construction ensures reliability, with a voltage rating of 50V/-50V, and maximum collector currents of 100mA. Suitable for various digital switching and control systems in industrial and consumer electronics.
ROHM EMD53T2R Digital Transistor Specifications:
- Package: SOT-563 with EMT package
- Voltage Rating: 50V (DTr1 - NPN), -50V (DTr2 - PNP)
- Maximum Collector Current: 100mA
- Input Voltage: 40 to -10 V (DTr1), -40 to 10 V (DTr2)
- Power Dissipation: 150 mW total
- Junction Temperature: 150°C
- Storage Temperature: -55°C to +150°C
- Input Resistance: 7 to 13 kΩ
- Transition Frequency: 250 MHz
- Dimensions: Length approx. 1.50-1.70 mm, Width approx. 0.45-0.55 mm, Height approx. 1.10-1.30 mm
Buy the ROHM Series EMD Digital Transistor: EMD53
Purchase the ROHM EMD53 digital transistor online today to enhance your circuit designs with reliable, high-speed switching capabilities. Its built-in bias resistors simplify system integration, reduce interference, and cut mounting costs. Suitable for inverter, interface, and switching circuits, this device ensures durability and consistent performance under industrial and consumer electronics conditions. With a package designed for automatic mounting, it offers ease of assembly and space efficiency, making it the ideal choice for your next electronic project or manufacturing process. Order now and optimize your system performance!
Get ROHM EMD53 today—built for high-speed digital switching and reliable performance in compact electronic circuits.
Frequently Asked Questions
Where can I buy ROHM EMD53T2R?
You can click on the BUY or RFQ button to purchase EMD53T2R from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part EMD53T2R?
You can download the EMD53T2R datasheet or visit the ROHM website for support.
Who is the manufacturer of EMD53T2R?
ROHM
