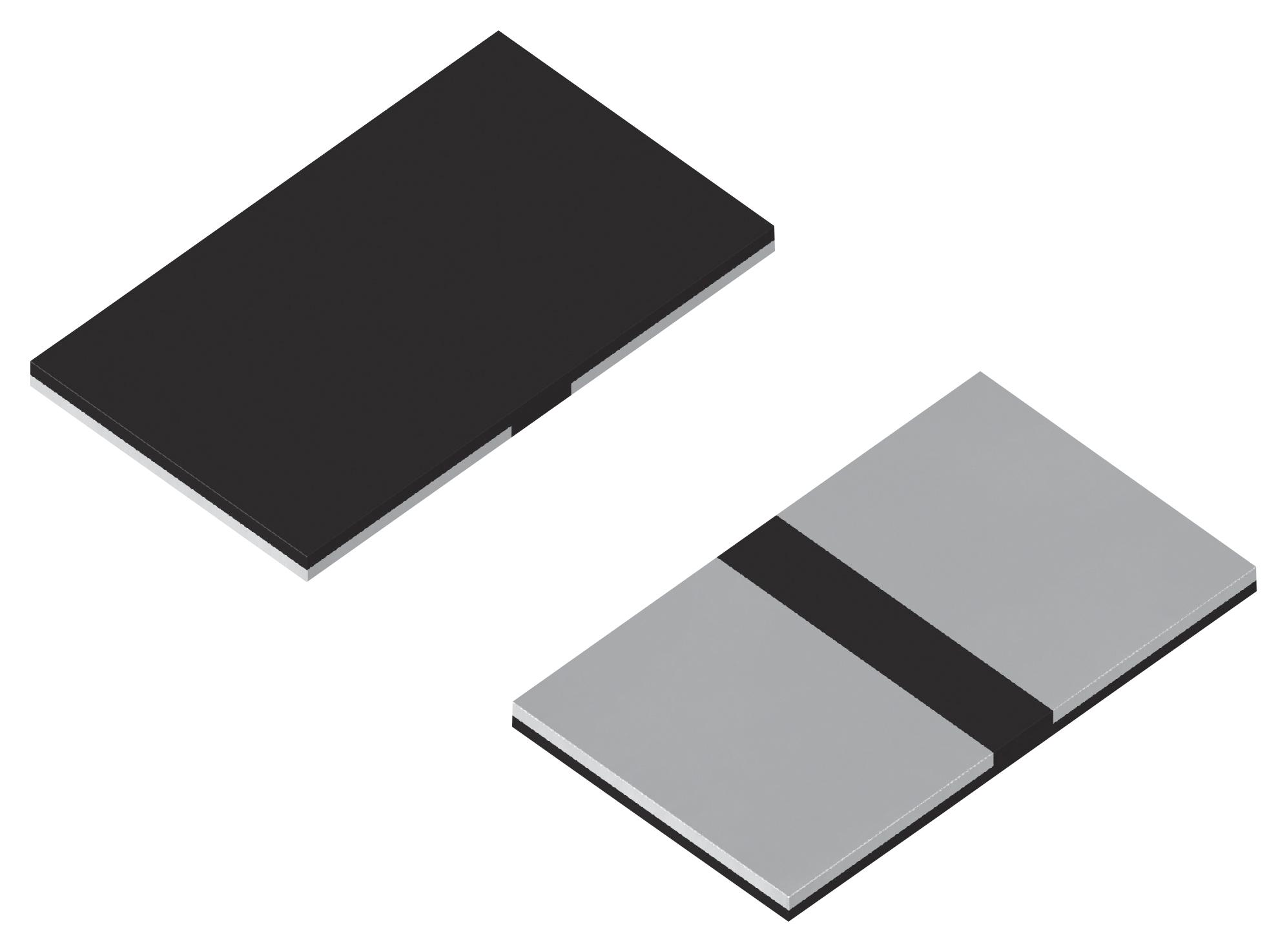

ROHM GMR100HTCFIR220 High Power Shunt Resistor
High power low ohmic chip shunt resistor from the GMR series offers 3W to 5W power dissipation, excellent heat dissipation, and low resistance from 5mΩ to 220mΩ. Ideal for current measurement and shunt applications, it features high heat tolerance, excellent TCR, and reliable performance under load. These resistors provide accurate and stable measurements with low temperature coefficient characteristics, making them suitable for automotive and industrial use. They comply with IEC60115-8 and JISC 5201-8 standards, ensuring quality and durability in demanding environments.
ROHM GMR100HTCFIR220 High Power Shunt Resistor Specifications:
- Power Dissipation: 3W to 5W
- Resistance Range: 5mΩ to 220mΩ
- Size: 6.40 mm x 3.20 mm (0.25 inch x 0.125 inch)
- Temperature Coefficient: Not specified but high heat dissipation capability
- Tolerance: ±1%
- Resistance Code: 4 digits (e.g., R100 for 10Ω, R047 for 47mΩ)
- Operating Temperature: Up to 170°C
- Derating Temperature: Load to be derated when terminal temperature exceeds 110°C
- Standards: IEC60115-8, JISC 5201-8
- Terminals: Bottom termination, resistant to soldering heat
- Packaging: Embossed tape, suitable for automatic mounting
- Application: Automotive, industrial, precision current measurement
- Resistance Stability: Excellent over temperature variations
- Solderability: 95% surface coverage, withstands 245°C for 2 seconds
- Testing Conditions: Overload 5x rated power for 5 seconds, steady-state at 70°C and 110°C ambient
- Compliance: RoHS compliant, high reliability
Buy the ROHM Series GMR High Power Shunt Resistor: GMR100HTCFIR220
Purchase the ROHM Series GMR high power low ohmic shunt resistor, GMR100HTCFIR220, online today. Designed for precision current measurement, it offers 3W to 5W power dissipation, low resistance from 5mΩ to 220mΩ, and excellent thermal management. Its high reliability and stability under load make it perfect for automotive, industrial, and measurement applications. Features include excellent heat dissipation, adherence to IEC60115-8 standards, and easy mounting with embossed tape. Ensure accurate readings and durable operation with this high-quality resistor, available for quick purchase online.
Order your ROHM Series GMR high power low ohmic shunt resistor, GMR100HTCFIR220, today and give your projects the dependable current measurement solution they deserve.
Frequently Asked Questions
Where can I buy ROHM GMR100HTCFIR220?
You can click on the BUY or RFQ button to purchase GMR100HTCFIR220 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part GMR100HTCFIR220?
You can download the GMR100HTCFIR220 datasheet or visit the ROHM website for support.
Who is the manufacturer of GMR100HTCFIR220?
ROHM
