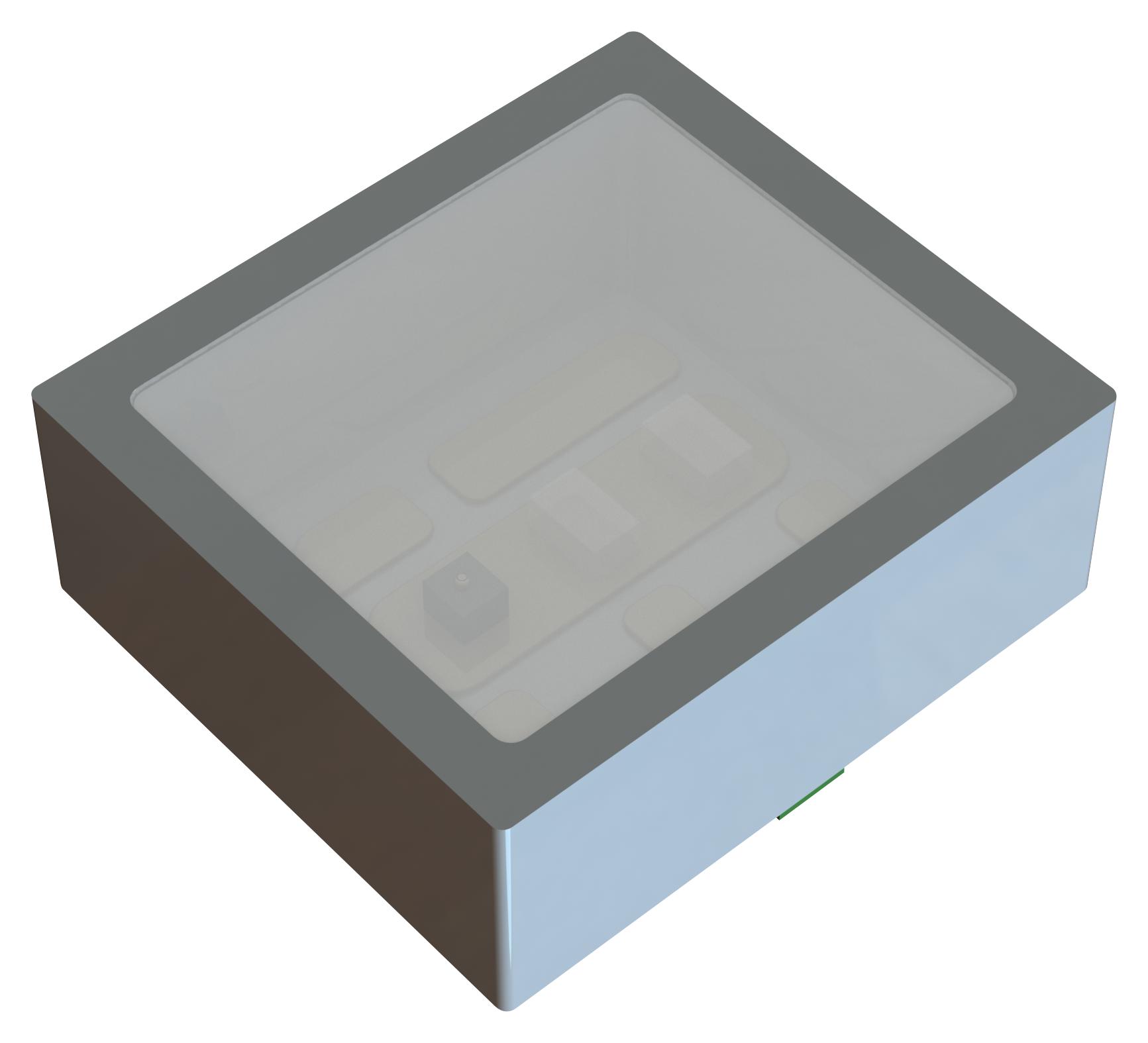

ROHM MSL0402RGBU1 RGB Surface-Mount LED
The MSL0402RGBU is a small, high-brightness RGB LED in a compact 1816 (0706) package, optimized for surface-mount applications with excellent luminous intensity and color stability. Designed with InGaN and AlGaInP 10 technology, it offers reliable performance with a wide operating temperature range from -40°C to +85°C. Suitable for indicator lighting, decorative displays, and electronic devices requiring vibrant RGB illumination, it features low forward voltage, high luminous intensity, and precise color chromaticity. Ideal for compact, high-efficiency lighting solutions in various industries.
ROHM MSL0402RGBU1 RGB Surface-Mount LED Specifications:
- Package size: 1.8 x 1.6mm, thickness: 0.5mm
- Emission colors: Red, Green, Blue
- InGaN and AlGaInP 10 technologies
- Operating temperature: -40°C to +85°C
- Forward voltage: Red 2.0V, Green 3.3V, Blue 3.3V (typical values)
- Luminous intensity: Red 619 mcd, Green 520 mcd, Blue 465 mcd (typical at 20mA)
- Absolute maximum forward current: 20mA for Red, Green, Blue
- Viewing angle: 140°
- Spectral peak: Red 624nm, Green 520nm, Blue 465nm
- Storage humidity: 30-70% RH, store in waterproof package
- Reflow soldering temperature: max 260°C with specific profile
- Electrical: Low forward voltage, high brightness, reliable performance
Buy the ROHM Series MSL0402 RGB: MSL0402RGBU1
Experience vivid colors and reliable performance with the RGB Surface-Mount LED. Perfect for compact and decorative lighting, this LED offers high brightness, low power consumption, and excellent chromaticity. Its small size makes it ideal for various electronic devices, display panels, and indicator applications. Easy to mount with recommended soldering profile, it ensures durability and efficient light output. Enhance your electronic projects with this high-quality, energy-efficient RGB LED, available for online purchase today.
Get ROHM MSL0402RGBU today—built for vibrant color display and long-lasting performance in compact electronic applications.
Frequently Asked Questions
Where can I buy ROHM MSL0402RGBU1?
You can click on the BUY or RFQ button to purchase MSL0402RGBU1 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part MSL0402RGBU1?
You can download the MSL0402RGBU1 datasheet or visit the ROHM website for support.
Who is the manufacturer of MSL0402RGBU1?
ROHM
