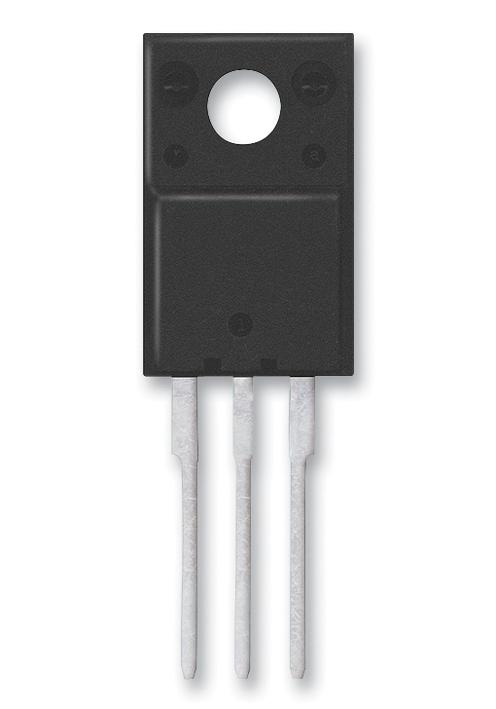

ROHM R6020JNXC7G Power MOSFET
The R6020JNX is a high-voltage N-channel power MOSFET designed for switching applications, capable of handling 600V drain-source voltage and 20A continuous drain current. It features low on-resistance, fast switching speed, and a body diode with low reverse recovery time, making it suitable for various power management and motor control circuits. With a power dissipation of 76W and excellent thermal characteristics, it ensures reliable operation in demanding industrial environments. The device is RoHS compliant, Pb-free, and comes in a TO-220FM package for easy integration into power systems.
ROHM R6020JNXC7G Power MOSFET Specifications:
- Drain - Source Voltage: 600 V
- Continuous Drain Current: 20 A
- Pulsed Drain Current: 60 A
- Gate - Source Voltage: ±30 V
- Power Dissipation: 76 W
- Junction Temperature Range: -55°C to +150°C
- Thermal Resistance, Junction - Case: 1.64°C/W
- Thermal Resistance, Junction - Ambient: 70°C/W
- Drain - Source Breakdown Voltage: 600 V
- Gate Threshold Voltage: 5.0 to 7.0 V
- Reverse Recovery Time: 85 ns
- Source Current: 20 A (pulsed 60 A)
- Body Diode Reverse Recovery Charge: 280 nc
- Package: TO-220FM, RoHS compliant
- Max. Avalanche Energy: 618 mJ
- Gate Charge: 45 nC
- Rise Time: 22 ns
- Fall Time: 13 ns
Buy the ROHM R6020JNX – Reliable Power MOSFET for Industrial Applications
Secure your industrial power switching needs with the ROHM R6020JNX. This high-voltage, high-current MOSFET offers low on-resistance and fast switching capabilities, ensuring efficient power management. Its robust thermal characteristics and RoHS compliance make it ideal for demanding environments like motor control, power supplies, and inverter systems. Easy to install in TO-220FM package, it delivers reliable operation and enhanced durability. Order online today to improve your system performance with a trusted, high-quality power device.
Buy ROHM R6020JNX power MOSFET now and experience unmatched performance, low Rds(on), and high reliability in demanding industrial switching circuits.
Frequently Asked Questions
Where can I buy ROHM R6020JNXC7G?
You can click on the BUY or RFQ button to purchase R6020JNXC7G from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part R6020JNXC7G?
You can download the R6020JNXC7G datasheet or visit the ROHM website for support.
Who is the manufacturer of R6020JNXC7G?
ROHM
