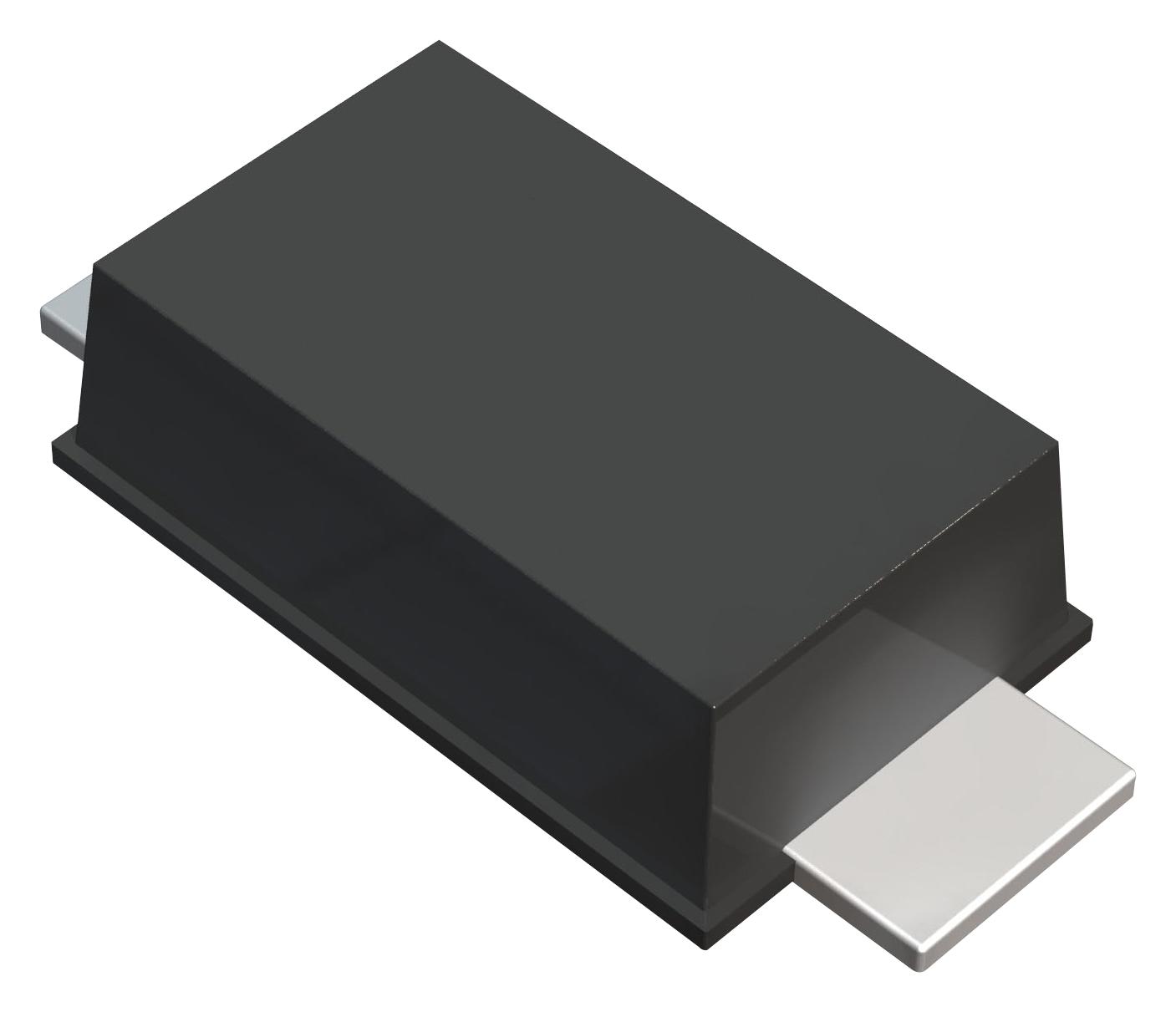

ROHM RB060MM40TFTR Schottky Barrier Diode
The RBO6OMM-40TF is a Schottky barrier diode designed for high reliability with low forward voltage and high peak surge current. It features a compact SO-123L package, making it suitable for general rectification and power applications. With a VR of 40V, it can handle average forward currents up to 2A and peak surges of 30A, ensuring efficient performance in low-voltage, high-speed switching circuits. Its structure and specifications emphasize durability and fast response, essential for modern electronics requiring dependable rectification components.
ROHM RB060MM40TFTR Schottky Barrier Diode Specifications:
- Maximum Repetitive Peak Reverse Voltage: 40 V
- Maximum Reverse Voltage: 40 V
- Average Rectified Forward Current: 2 A at 78°C
- Peak Forward Surge Current: 30 A
- Junction Temperature: -55°C to 150°C
- Storage Temperature: -55°C to 150°C
- Forward Voltage: Max. 0.56 V at 2A
- Reverse Current: Max. 500 pA at VR=40V
- Package Type: SO-123L (SC-109B)
- Dimensional Size: A: 0.70-0.90 mm, D: 1.50-1.70 mm, and other detailed dimensions listed
- Silicon Epitaxial Planar Structure, Taping Code TR, Marking 36
- Taping Width: 8 mm, Reel Size: 180 mm
Buy the Buy ROHM RBO6OMM-40TF Part Number RB060MM40TF Online
Purchase the ROHM RBO6OMM-40TF online today for high-performance rectification in your electronic projects. This Schottky diode offers a low forward voltage drop of max 0.56V at 2A, ensuring efficient power conversion. Its compact SO-123L package makes for easy integration into various circuits, especially where space is limited. Designed for high current surge capacity up to 30A and a reverse voltage of 40V, it provides excellent reliability and fast response, making it suitable for high-speed switching power supplies, rectifiers, and electronic devices requiring dependable, high-quality diodes.
Get ROHM RBO6OMM-40TF today—compact and reliable diode designed for fast switching and power rectification.
Frequently Asked Questions
Where can I buy ROHM RB060MM40TFTR?
You can click on the BUY or RFQ button to purchase RB060MM40TFTR from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RB060MM40TFTR?
You can download the RB060MM40TFTR datasheet or visit the ROHM website for support.
Who is the manufacturer of RB060MM40TFTR?
ROHM
