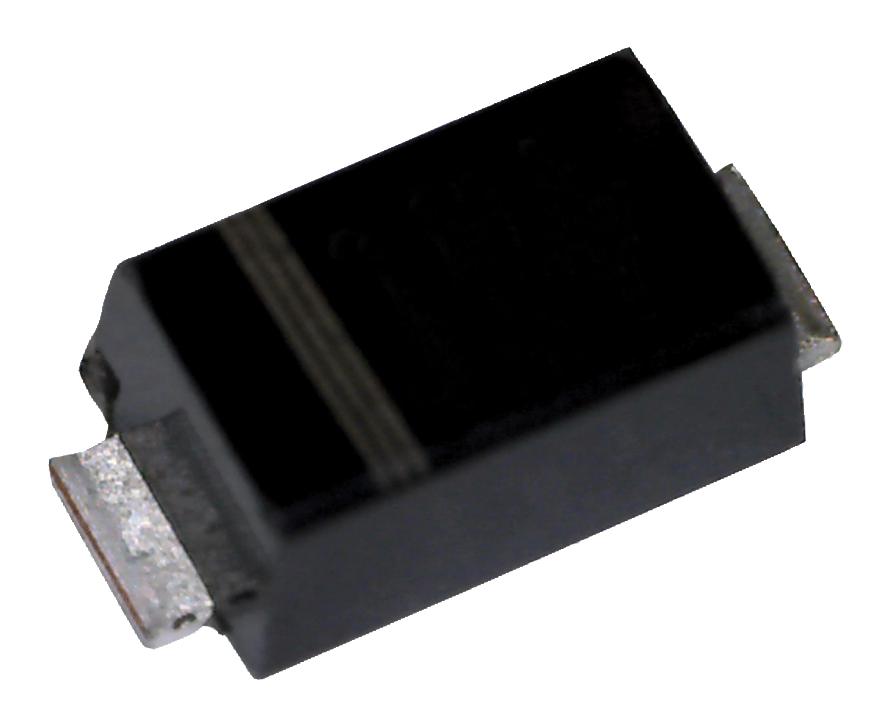

ROHM RB070MM30TR Schottky Barrier Diode
The RB070MM30TR is a high-reliability Schottky barrier diode ideal for general rectification applications. Featuring a compact SOD-123FL package, it handles average rectified currents up to 1.5 A and has a maximum repetitive peak reverse voltage of 30 V. Its low forward voltage (0.37/0.43 V at 0.5 A) ensures reduced power loss, but it has a higher reverse current characteristic, requiring consideration of ambient temperature. Suitable for various electronic circuits demanding efficient voltage rectification in a small form factor.
ROHM RB070MM30TR Schottky Barrier Diode Specifications:
- Maximum Repetitive Peak Reverse Voltage: 30 V
- Maximum Reverse Voltage: 30 V
- Average Rectified Forward Current: 1.5 A at 115°C
- Peak Forward Surge Current: 30 A
- Forward Voltage: 0.37/0.43 V at 0.5 A
- Reverse Current: 50 pA at VR=30V
- Junction Temperature: -150°C to 150°C
- Storage Temperature: -40°C to 150°C
- Package: SOD-123FL, Taping code TR, Reel size: 180 mm, Taping width: 8 mm, Quantity per reel: 3000 pcs
- Dimensions: A: 0.70-0.90 mm, B: 0.80-0.90 mm, C: 0.05-0.20 mm, D: 1.50-1.70 mm, E: 2.50-2.70 mm, He: 3.38-3.62 mm
- Lead dimensions and marking details provided for proper mounting and identification.
- Features include small power mold type, high reliability, and low forward voltage, suitable for efficient rectification in various electronic applications.
Buy the ROHM Series Schottky Barrier Diode: RB070MM30TR
Purchase the ROHM RB070MM30TR Schottky barrier diode online today for your electronic projects. This diode offers low forward voltage, high reliability, and compact size, making it ideal for efficient rectification circuits. With a maximum voltage of 30 V and current capacity of 1.5 A, it ensures optimal performance in power supplies, AC/DC adapters, and other electronic systems. Easy to integrate, it guarantees stable operation and long-term durability, giving you confidence in your electronic designs. Order now to enhance your device’s efficiency and reliability.
Buy ROHM RB070MM30TR now and experience unmatched reliability and high-efficiency rectification in compact electronic circuits.
Frequently Asked Questions
Where can I buy ROHM RB070MM30TR?
You can click on the BUY or RFQ button to purchase RB070MM30TR from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RB070MM30TR?
You can download the RB070MM30TR datasheet or visit the ROHM website for support.
Who is the manufacturer of RB070MM30TR?
ROHM
