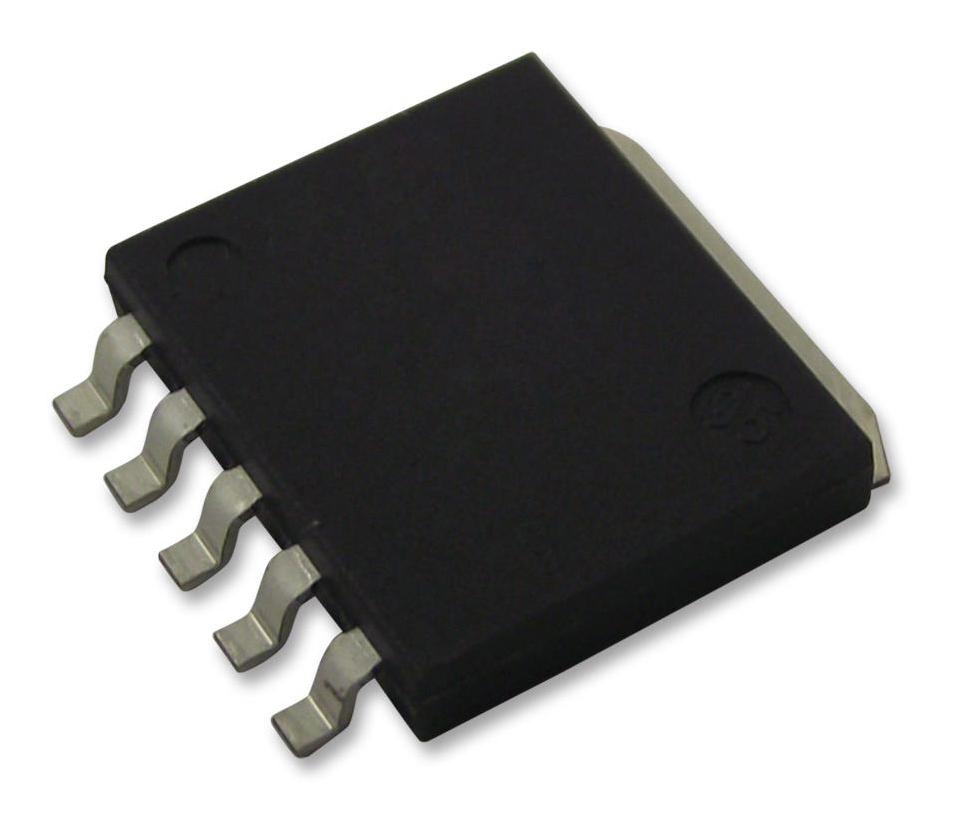

ROHM BD3575YHFPMTR Automotive Voltage Regulator
The BD3575YHFPMTR is a high-voltage, low quiescent current LDO regulator designed for automotive and onboard vehicle applications. Featuring a withstand voltage of 50 V, it provides a stable output with a maximum current of 500 mA and a quiescent current of only 30 μA. Its robust design includes built-in overcurrent protection and thermal shutdown to ensure reliability in harsh automotive environments. Compatible with ceramic output capacitors, the device operates efficiently across a temperature range of -40°C to +125°C, making it ideal for body control, navigation, and entertainment systems.
ROHM BD3575YHFPMTR Automotive Voltage Regulator Specifications:
- Supply Voltage: 50 V
- Output Current: 500 mA
- Quiescent Current: 30 μA (Typ)
- Operating Temperature Range: -40°C to +125°C
- Dropout Voltage: 0.25 to 0.48 V at 200 mA load
- Output Tolerance: within +2 %
- Built-in Overcurrent Protection and Thermal Shutdown
- Can use ceramic capacitors at output for stable operation
- Package Types: TO252-3, TO252-5, HRP5
- Package Dimensions: TO252-3 (6.54 mm x 9.50 mm x 2.50 mm), HRP5 (9.395 mm x 10.540 mm x 2.005 mm)
Buy the ROHM Series Automotive Voltage Regulator: BD3575YHFPMTR
Purchase the ROHM BD3575YHFPMTR online today—designed for automotive use with high withstand voltage of 50 V, 500 mA output current, low quiescent current of 30 μA, and integrated protection features. Its robust structure ensures reliable performance in harsh vehicle environments, including temperature ranges from -40°C to +125°C. Compatible with ceramic capacitors at the output, this regulator simplifies system design, reduces power consumption, and enhances system stability, making it an ideal choice for vehicle control modules, navigation systems, and entertainment units.
Get ROHM BD3575YHFPMTR today—built for precision and long-lasting durability in automotive applications.
Frequently Asked Questions
Where can I buy ROHM BD3575YHFPMTR?
You can click on the BUY or RFQ button to purchase BD3575YHFPMTR from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part BD3575YHFPMTR?
You can download the BD3575YHFPMTR datasheet or visit the ROHM website for support.
Who is the manufacturer of BD3575YHFPMTR?
ROHM
