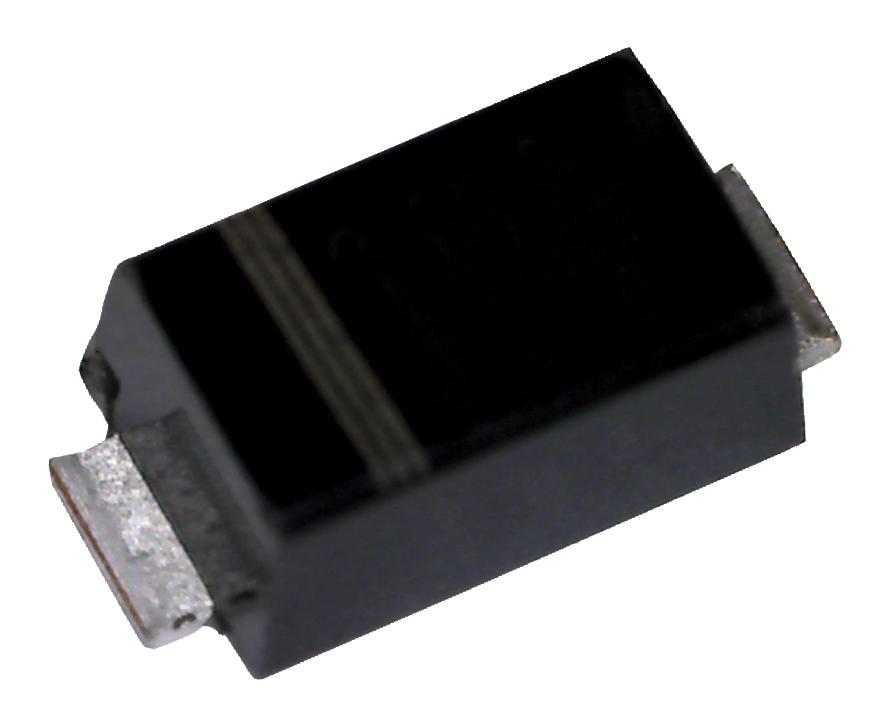

ROHM RBR1MM60ATR Schottky Barrier Diode
The RBR1MM60A is a Schottky barrier diode designed for high reliability and small power mold applications. It features a maximum repetitive peak reverse voltage of 60V, forward voltage of approximately 0.53V at 1A, and a reverse current of 75pA at 60V. With a peak surge current of 20A, it is suitable for efficient rectification in electronic circuits. Its compact SOD-123FL package allows for versatile mounting and reliable performance in various electronic systems, including power supplies and switching applications. Proper thermal management is essential to prevent thermal runaway due to high reverse current at elevated temperatures.
ROHM RBR1MM60ATR Schottky Barrier Diode Specifications:
- Repetitive peak reverse voltage VRM: 60 V
- Reverse voltage VR: 60 V
- Average rectified forward current: 1 A at Tj=120°C
- Peak forward surge current: 20 A
- Forward voltage Ve: 0.53 V at 1A
- Reverse current IR: 75 pA at VR=60V
- Junction temperature Tj: -150°C to 150°C
- Storage temperature Tstg: -55°C to 150°C
- Package: SOD-123FL
- Dimension parameters: A=0.70–0.90mm, B=0.80–0.90mm, C=0.05–0.20mm, D=1.50–1.70mm, E=2.50–2.70mm, He=3.38–3.62mm
- Marking: E9
- Taping: Embossed Tape, Reel size: 180mm, Taping width: 8mm
- Taping code: TR, Quantity: 3000 pcs
Buy the ROHM RBR1MM60A – Reliable Schottky Diode for Industrial Applications
Secure your power management needs with the Schottky Barrier Diode RBR1MM60A from ROHM. This diode offers a maximum repetitive peak reverse voltage of 60V, low forward voltage of 0.53V at 1A, and a surge current of 20A. Its compact SOD-123FL package ensures easy integration into various circuits. Designed for high reliability and thermal stability, it’s ideal for power supplies, switching circuits, and rectification tasks. Order online now to enhance your system’s efficiency with this durable and precise component.
Buy ROHM RBR1MM60A now and experience unmatched reliability and high efficiency in rectification for industrial electronics.
Frequently Asked Questions
Where can I buy ROHM RBR1MM60ATR?
You can click on the BUY or RFQ button to purchase RBR1MM60ATR from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RBR1MM60ATR?
You can download the RBR1MM60ATR datasheet or visit the ROHM website for support.
Who is the manufacturer of RBR1MM60ATR?
ROHM
