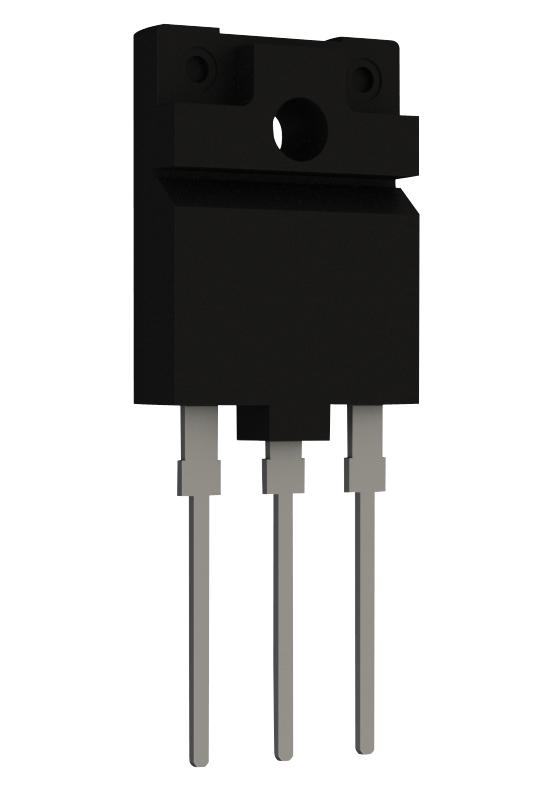

ROHM RGTH80TK65GC11 Trench IGBT Module
The RGTH80TK65 is a 650V, 40A trench IGBT module designed for high-speed switching and low saturation voltage applications. It features low collector-emitter saturation voltage of approximately 1.6V at 40A and operates reliably across junction temperatures from -40°C to +175°C. Suitable for power converters and inverters, its RoHS compliance and Pb-free construction ensure eco-friendly use. With a robust TO-3PFM package, the device provides high thermal conductivity and efficient power dissipation, making it ideal for industrial and energy management systems requiring durable and efficient IGBT modules.
ROHM RGTH80TK65GC11 Trench IGBT Module Specifications:
- Collector-Emitter Voltage: 650 V
- Collector Current: 40 A (at Tj = 25°C), 19 A (at Tj = 100°C)
- Pulsed Collector Current: 160 A
- Power Dissipation: 66 W (Tj = 25°C), 33 W (Tj = 100°C)
- Collector-Emitter Saturation Voltage: 1.6 V at 40A
- Gate-Emitter Voltage: +30 V (max)
- Operating Junction Temperature: -40°C to +175°C
- Storage Temperature: -55°C to +175°C
- Thermal Resistance Junction-Case: 2.27 °C/W
- Gate Charge: 79 nC (total), Qge: 21 nC, Qgc: 29 nC
- Capacitances: Cies: 2210 pF, Coes: 85 pF, Cres: 35 pF
- Switching Delay: 34 ns, Rise Time: 50 ns, Fall Time: 120 ns
- Packaging: PFC Tube, ROHS Compliant, Pb-Free
- Absolute Max Power: 66 W
- Approximate Dimensions: Suitable for TO-3PFM package
Buy the ROHM Series RGTH80TK65 Power Module: 650V 40A Trench IGBT
Purchase the ROHM Series RGTH80TK65 trench IGBT module online today and enhance your power electronics projects with reliable, high-efficiency switching components. This module ensures excellent thermal performance, low saturation voltage, and fast switching speeds, making it suitable for industrial, energy management, and inverter applications. With RoHS compliance and a robust TO-3PFM package, it offers durability and eco-friendly use, supporting your design's highest standards. Ready for quick delivery, order now and power your projects with top-tier quality from ROHM.
Order your ROHM Series RGTH80TK65 power module today and ensure your energy systems and converters benefit from reliable, high-speed switching components.
