ROHM RGTV60TK65GVC11 Power IGBT Module
The RGTV60TK65 is a high-performance 650V trench IGBT designed for industrial applications such as solar inverters and UPS systems. It features low collector-emitter saturation voltage (1.5V at 30A), high-speed switching with low losses, and short circuit withstand capability of 2µs. Encased in a RoHS-compliant package, it supports operation up to 175°C junction temperature, with a collector current of 20A at 100°C and pulsed current of 120A. Its thermal resistance and switching characteristics make it suitable for demanding power conversion tasks, ensuring efficiency and reliability.
ROHM RGTV60TK65GVC11 Power IGBT Module Specifications:
- Collector-Emitter Voltage: 650V
- Gate-Emitter Voltage: +30V
- Collector Current: 33A at 25°C, 20A at 100°C
- Pulsed Collector Current: 120A
- Power Dissipation: 76W at 25°C, 38W at 100°C
- Operating Junction Temperature: -40°C to +175°C
- Storage Temperature: -55°C to +175°C
- Thermal Resistance Junction-Case: 1.97°C/W
- Collector-Emitter Breakdown Voltage: 650V
- Gate-Emitter Leakage Current: <200nA at +30V
- Saturation Voltage: 1.5V at 30A
- Switching Losses: Eon 0.57µJ, Eoff 0.50µJ (typical values at 30A, 400V)
- Fall Time (T: 175°C): 80ns
- Rise Time (T: 25°C): 12ns
- Gate Capacitance: 1730pF (input), 74pF (output), 30fF (reverse transfer)
- Total Gate Charge: 64nC

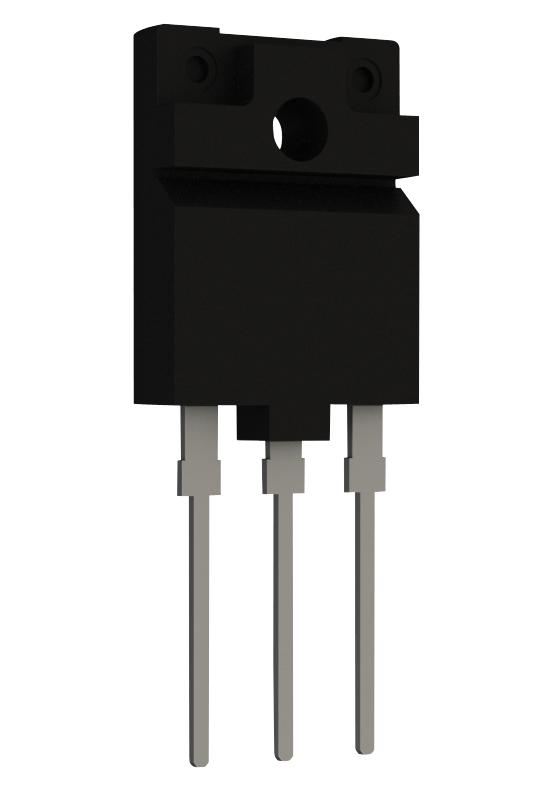

Buy the ROHM RGTV60TK65 – Reliable IGBT for Industrial Applications
Order the ROHM RGTV60TK65 online today to enhance your power conversion systems with this high-voltage, fast-switching IGBT. Its excellent thermal management, low saturation voltage, and robust design ensure efficient operation for industrial applications like solar inverters and UPS systems. With a dependable performance record, this component helps reduce energy losses and improves overall system reliability. Take advantage of our easy online ordering process and secure your supply of this essential power device for your manufacturing or automation needs.
Buy ROHM RGTV60TK65 now and experience unmatched reliability and performance in power switching and conversion tasks.
Frequently Asked Questions
Where can I buy ROHM RGTV60TK65GVC11?
You can click on the BUY or RFQ button to purchase RGTV60TK65GVC11 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RGTV60TK65GVC11?
You can download the RGTV60TK65GVC11 datasheet or visit the ROHM website for support.
Who is the manufacturer of RGTV60TK65GVC11?
ROHM
