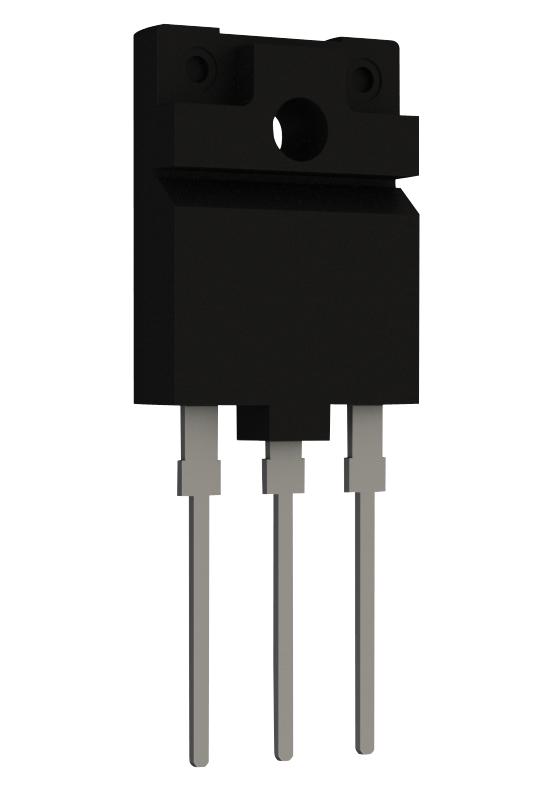

ROHM RGW00TK65GVC11 High Voltage Trench IGBT
The RGWOOTK65 is a high-voltage, 650V, 50A field stop trench IGBT suitable for power switching applications like PFC circuits, UPS systems, and solar inverters. It features low saturation voltage, high-speed switching, and RoHS compliance. The device operates within a junction temperature range of -40°C to +175°C, with excellent thermal resistance of 1.67°C/W. Its robust electrical characteristics allow efficient power conversion with low switching losses, making it ideal for industrial power management and inverter applications requiring reliable, high-performance IGBTs.
ROHM RGW00TK65GVC11 High Voltage Trench IGBT Specifications:
- Collector-Emitter Voltage: 650 V
- Collector Current: 50 A at Tj=25°C, 26 A at Tj=100°C
- Pulsed Collector Current: 200 A
- Power Dissipation: 89 W at Tj=25°C
- Operating Junction Temperature: -40°C to +175°C
- Storage Temperature: -55°C to +175°C
- Thermal Resistance (Junction to Case): 1.67°C/W
- Gate-Emitter Voltage: +30 V
- Gate-Emitter Leakage Current: <200 nA at Vge=+30 V
- Collector-Emitter Breakdown Voltage: 650 V
- Gate Threshold Voltage: 5.0V to 7.0 V
- Saturation Voltage: 1.5 V at 50A, 25°C
- Total Gate Charge: 141 nC
- Switching Losses: 1.18 mJ (on and off), Rise time 21-23 ns, Fall time 33-72 ns
- Capacitances: Cies 4200 pF, Coss 104 pF, Cres 79 fF
Buy the Buy Rohm RGWOOTK65 High Voltage Trench IGBT Part Number RGW00TK65GVC11 Online
Purchase the Rohm RGWOOTK65 high voltage trench IGBT online today. Designed for power switching applications, it features 650V voltage, 50A current capacity, and low saturation voltage. With high-speed switching capabilities, low switching losses, and RoHS compliance, this device guarantees efficient operation in inverter, UPS, and solar power systems. Its robust thermal characteristics and wide temperature range ensure reliable performance under demanding industrial conditions. Order now to enhance your power management system with this dependable, high-performance IGBT.
Order your Rohm RGWOOTK65 high voltage trench IGBT today and ensure reliable, efficient power switching for industrial inverters and power supplies.
Frequently Asked Questions
Where can I buy ROHM RGW00TK65GVC11?
You can click on the BUY or RFQ button to purchase RGW00TK65GVC11 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RGW00TK65GVC11?
You can download the RGW00TK65GVC11 datasheet or visit the ROHM website for support.
Who is the manufacturer of RGW00TK65GVC11?
ROHM
