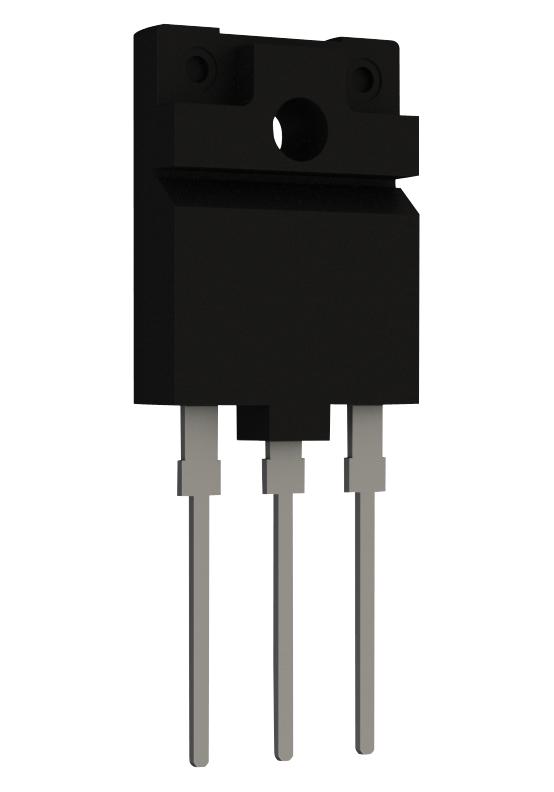

ROHM RGW60TK65GVC11 High-Voltage Trench IGBT
The RGW60TK65 is a high-voltage, high-current trench IGBT suitable for power conversion applications like PFC circuits, solar inverters, and UPS systems. It features low saturation voltage, high switching speed, soft switching capabilities, and is RoHS compliant with Pb-free plating. Designed for reliable operation, it supports a collector-emitter voltage up to 650V, collector current of 33A at 25°C, and a power dissipation of 72W. Its compact package ensures efficient heat management, making it ideal for industrial power systems requiring robust, efficient switching components.
ROHM RGW60TK65GVC11 High-Voltage Trench IGBT Specifications:
- Collector - Emitter Voltage: 650 V
- Gate - Emitter Voltage: +30 V
- Collector Current: 33 A at 25°C, 20 A at 100°C
- Pulsed Collector Current: 120 A
- Power Dissipation: 72 W at 25°C, 36 W at 100°C
- Operating Junction Temperature: -40°C to +175°C
- Storage Temperature: -55°C to +175°C
- Thermal Resistance Junction - Case: 2.07 °C/W
- Input Capacitance: 2530 pF
- Output Capacitance: 65 pF
- Reverse Transfer Capacitance: 46 fF
- Gate Charge: 84 nC
- Turn-On Delay Time: 37 ns
- Fall Time: 35 ns
Buy the Buy ROHM RGW60TK65 Part Number RGW60TK65GVC11 Online
Purchase the high-voltage trench IGBT designed for power conversion applications online today. The RGW60TK65 offers low saturation voltage, fast switching, and RoHS compliance, making it ideal for industrial, solar, and UPS systems. Its robust thermal performance ensures reliable operation at voltages up to 650V and currents up to 33A. Easily integrate this component into your power management system to achieve high efficiency, durability, and safety. Order now to enhance your power electronics with premium quality and dependability.
Get ROHM RGW60TK65 today—built for high-voltage switching and long-lasting durability in power conversion systems.
Frequently Asked Questions
Where can I buy ROHM RGW60TK65GVC11?
You can click on the BUY or RFQ button to purchase RGW60TK65GVC11 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RGW60TK65GVC11?
You can download the RGW60TK65GVC11 datasheet or visit the ROHM website for support.
Who is the manufacturer of RGW60TK65GVC11?
ROHM
