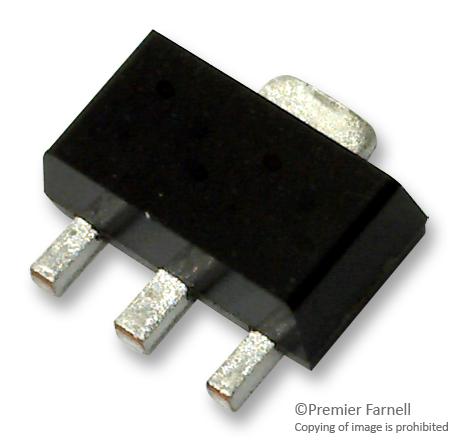

ROHM RHP030N03FRAT100 Silicon N-channel MOSFET
The RHP030N03FRA is a silicon N-channel MOSFET designed for efficient switching in industrial and electronic applications. It features low on-resistance and a gate drive voltage of 4V, suitable for various control circuits. With a drain-source voltage of 30V and continuous drain current of 3A, this MOSFET is ideal for switching tasks requiring reliability and performance. It includes a body diode, ESD protection diode, and can operate at temperatures from -55°C to +150°C, making it versatile for demanding environments.
ROHM RHP030N03FRAT100 Silicon N-channel MOSFET Specifications:
- Drain-source voltage: 30 V
- Gate-source voltage: ±20 V
- Continuous drain current: 3 A
- Pulsed drain current: 10 A
- Total power dissipation: 500 mW
- Channel temperature: 150 °C
- Storage temperature: -55°C to +150°C
- Thermal resistance channel to ambient: 250°C/W
- Body diode includes ESD protection diode
- Gate threshold voltage: 1.0 V min, 25 V max
- Static drain-source on-resistance: 90–120 mΩ at Vgs=10V, Id=3A
- Input capacitance: 160 pF, Output capacitance: 90 pF, Reverse transfer capacitance: 27 pF
- Switching delay times: turn-on ~7 ns, turn-off ~15 ns
- Gate charge: 5–15 nC
Buy the ROHM RHP030N03FRA – Reliable MOSFET for Industrial Applications
Enhance your electronic systems with the reliable RHP030N03FRA silicon N-channel MOSFET. Featuring a voltage rating of 30V and a continuous drain current of 3A, it offers low on-resistance and fast switching capabilities. Its robust design includes integrated ESD protection, a body diode, and a wide operating temperature range. Perfect for industrial control, switching, and power management applications, this MOSFET ensures high efficiency and stability. Buy online today for easy integration into your next project.
Order your ROHM Series RHP030N03FRA today and give your electronic projects the dependable performance they deserve, perfect for high-reliability switching tasks.
