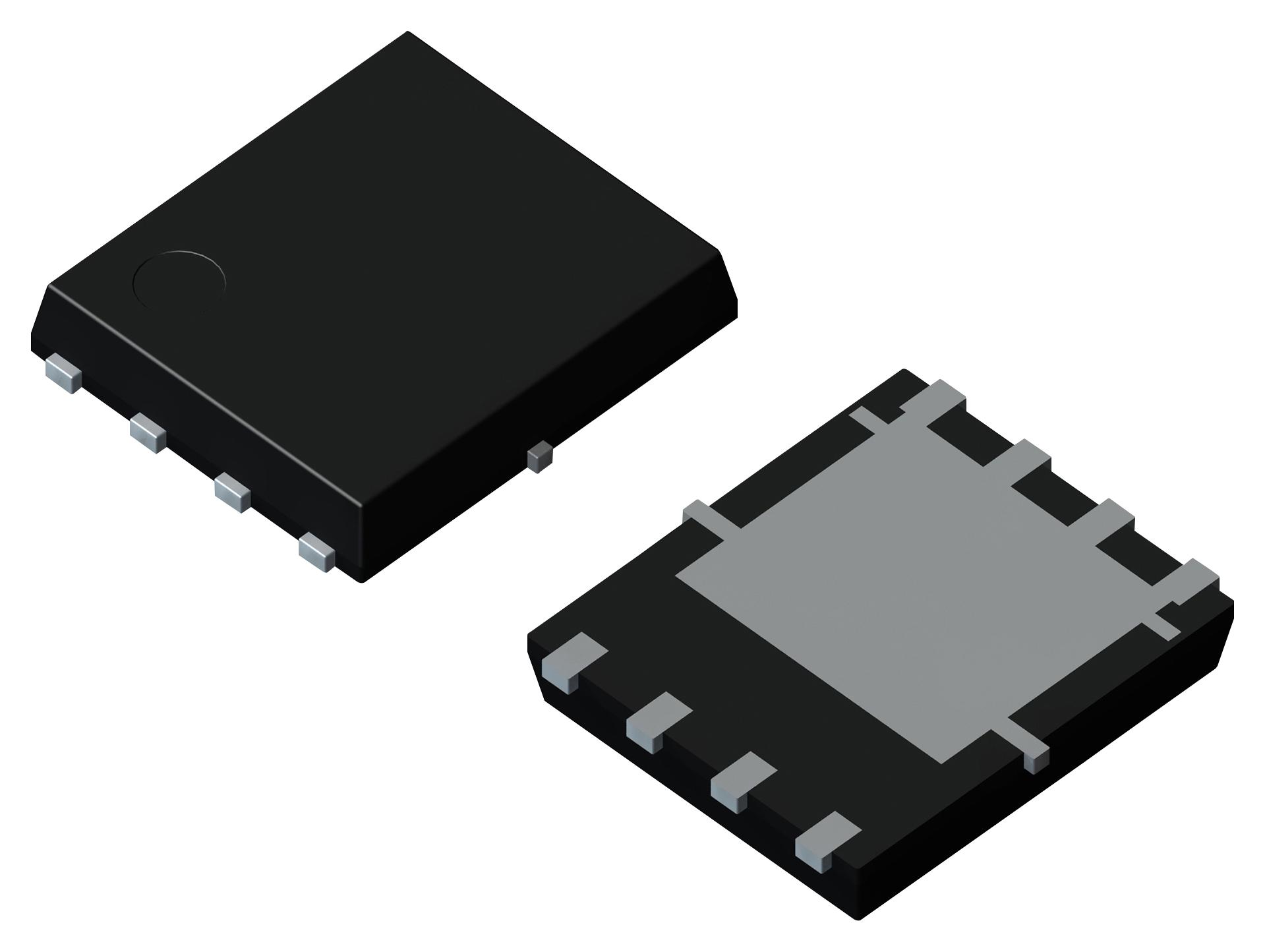

ROHM RS1E240GNTB Power MOSFET
The RS1E240GN is a high-performance power MOSFET housed in a reliable HSOP8 package, capable of handling a drain current of 72A with low on-resistance. It features a maximum drain-source voltage of 30V, making it suitable for switching applications in industrial power management. The device is RoHS compliant, halogen-free, and 100% tested for Rg and UIS. Its thermal resistance ensures efficient heat dissipation, and it is designed for smooth operation in various electronic circuits requiring high efficiency and reliability.
ROHM RS1E240GNTB Power MOSFET Specifications:
- Drain-Source Voltage: 30 V
- Continuous Drain Current: 24 A
- Pulsed Drain Current: 96 A
- Power Dissipation: 27 W
- Gate-Source Voltage: ±20 V
- Avalanche Current: 24 A
- Avalanche Energy: 43.7 mJ
- Thermal Resistance, junction-case: 46°C/W
- Thermal Resistance, junction-ambient: 41.7°C/W
- Operating junction temperature: -55 to +150°C
- Body Diode: continuous forward current 2.5 A, reverse recovery time 26.5 ns
- Gate charge: 11.2 nC
- Gate resistance: 1.6 Ω
- Marker/Marking: RS1E240GN
- Tape width: 12 mm
- Reel size: 330 mm
- Package type: HSOP8 (5x6 mm)
Buy the ROHM RS1E240GN – Reliable Power MOSFET for Industrial Applications
Purchase the ROHM RS1E240GN high-current power MOSFET online now to improve your circuit's efficiency and reliability. This robust device offers low on-resistance, excellent thermal management, and is RoHS compliant, making it ideal for industrial power applications. With a maximum drain-source voltage of 30V and a drain current of 72A, it ensures high performance in switching power supplies, motor drives, and other demanding systems. Order today and enhance your project's durability and operational stability with this trusted component.
Order your ROHM RS1E240GN series high-power MOSFET today and ensure your industrial circuits operate with efficiency, low heat, and dependability.
Frequently Asked Questions
Where can I buy ROHM RS1E240GNTB?
You can click on the BUY or RFQ button to purchase RS1E240GNTB from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RS1E240GNTB?
You can download the RS1E240GNTB datasheet or visit the ROHM website for support.
Who is the manufacturer of RS1E240GNTB?
ROHM
