ROHM RS1E301GNTB1 Power MOSFET

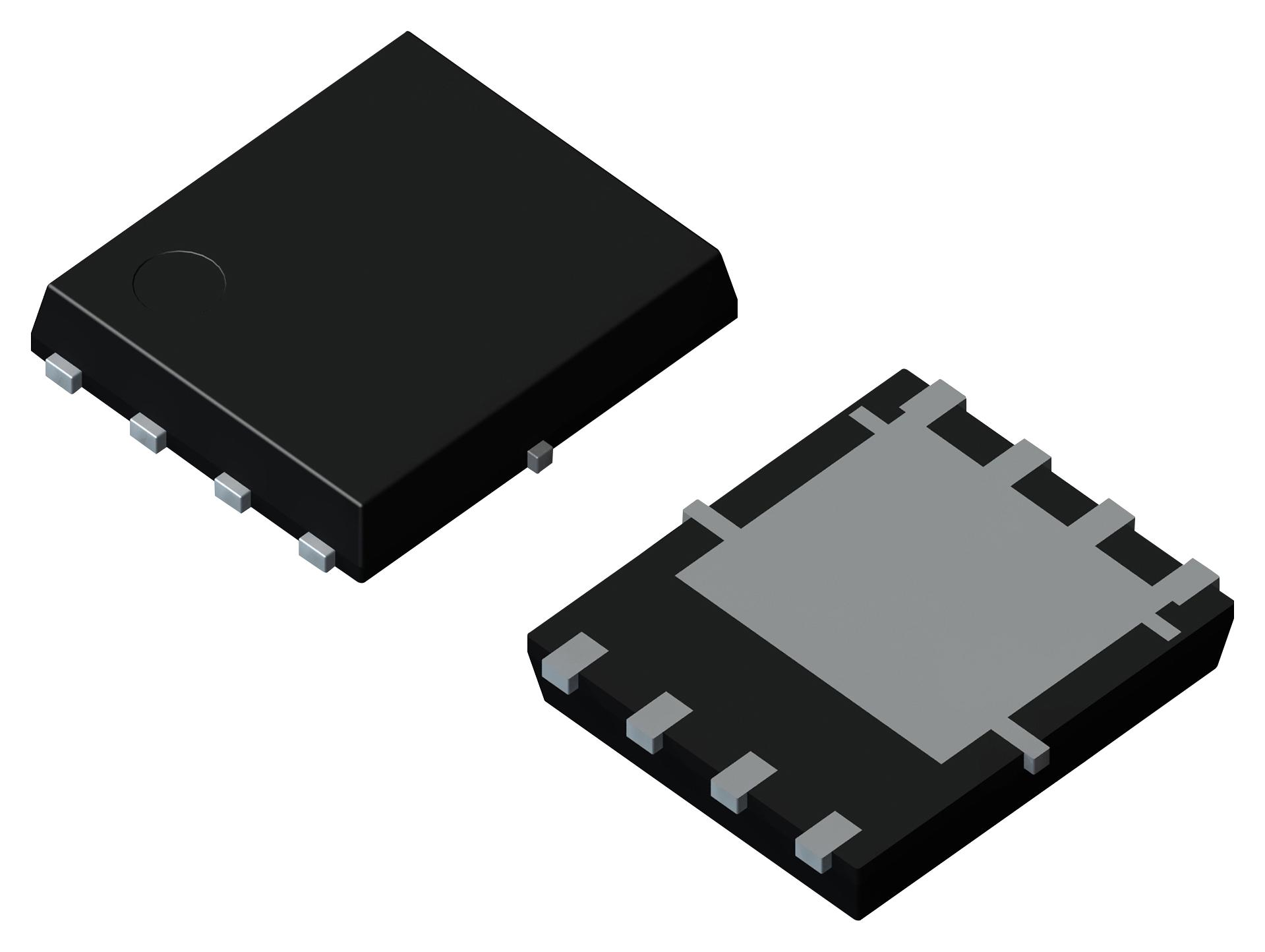

The RS1E301GN is a high-performance power MOSFET in a robust HSOP8 package, rated for 30V and capable of handling a continuous drain current of 80A. Designed for switching applications, it features low on-resistance, excellent thermal management, and is RoHS compliant. Suitable for power management and switching circuits, it undergoes rigorous testing including Rg and UIS testing. Its compact form factor and high efficiency make it ideal for industrial equipment, motor drives, and power supplies requiring reliable, high-current switching performance.
ROHM RS1E301GNTB1 Power MOSFET Specifications:
- Drain-Source Voltage: 30 V
- Continuous Drain Current: 80 A at Tj=25°C
- Pulsed Drain Current: 120 A
- Gate-Source Voltage: +20 V
- Power Dissipation: 38 W
- Junction Temperature Range: -55°C to +150°C
- Thermal Resistance, junction-case: 3.7°C/W
- Thermal Resistance, junction-ambient: 41.7°C/W
- On-State Resistance: 22 - 33 mΩ at Vgs = 4.5 V and Id = 30 A
- Gate Resistance: 1.1 Ω at 1 MHz
- Body Diode Continuous Forward Current: 2.5 A
- Body Diode Pulsed Forward Current: 120 A
Buy the ROHM RS1E301GN – Reliable Power MOSFET for Industrial Applications
Get the ROHM RS1E301GN power MOSFET online today to ensure high efficiency and reliable switching in your power management systems. This industry-grade MOSFET in a compact HSOP8 package offers 30V with 80A continuous current capacity, perfect for industrial and high-current applications. Its low on-resistance, high power dissipation, and rigorous testing assure durability and optimal performance. Designed for demanding environments, it supports efficient operation with thermal stability, making it your go-to component for power supply modules, motor drives, and switching circuits. Purchase now for fast delivery and confidence in your electronics projects.
Order your ROHM Series RS1E301GN power MOSFET today and provide your power switching circuits with dependable high-current performance.
Frequently Asked Questions
Where can I buy ROHM RS1E301GNTB1?
You can click on the BUY or RFQ button to purchase RS1E301GNTB1 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part RS1E301GNTB1?
You can download the RS1E301GNTB1 datasheet or visit the ROHM website for support.
Who is the manufacturer of RS1E301GNTB1?
ROHM
