ROHM 2SAR554PHZGT100 High-Speed Transistor
The 2SAR554P HZG is a high-speed NPN transistor designed for low-frequency amplifiers and switching applications. It features low saturation voltage, high transition frequency of 340 MHz, and is AEC-Q101 qualified for automotive environment use. With a collector-emitter voltage of -80V and maximum collector current of -1.5A, it exhibits excellent switching and amplification characteristics. The device comes in a SOT-89 package, making it suitable for compact designs requiring reliable high-speed performance and minimal saturation voltage for efficient operation.
ROHM 2SAR554PHZGT100 High-Speed Transistor Specifications:
- Collector-base voltage Vcb: -80 V
- Collector-emitter voltage Vceo: -80 V
- Emitter-base voltage Vebo: 6 V
- Collector current Ic: -1.5 A
- Power dissipation Pp: 0.5 W
- Power dissipation Po: 2.0 W
- Junction temperature Tj: 150°C
- Storage temperature range: -55 to +150°C
- Transition frequency fT: 340 MHz
- Collector-emitter saturation voltage Vce(sat): -200 to -400 mV
- DC current gain hFE: 120 to 390
- Output capacitance Cob: 15 pF
- Dimensions: SOT-89 package, approximately 4.4 mm x 2.7 mm x 2.0 mm
- Package type: SOT-89 (SC-62), tape and reel for automated mounting

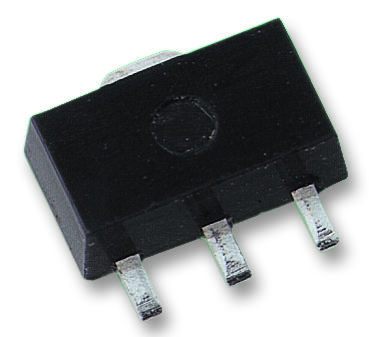

Buy the Buy ROHM 2SAR554P High-Speed Transistor Part Number 2SAR554PHZG Online
Purchase the ROHM 2SAR554PHZG high-speed transistor online today and enjoy fast delivery. Perfect for low-frequency amplifiers and high-speed switching, it features a collector-emitter voltage of -80V and maximum collector current of -1.5A. The device supports high transition frequency of 340 MHz and low saturation voltage, making it suitable for automotive, digital, and switching applications. Its compact SOT-89 package ensures easy integration into your circuit. Reliable, efficient, and built for high-performance demanding environments, order now to optimize your projects and product designs.
Order your ROHM 2SAR554PHZG high-speed transistor today and ensure reliable high-frequency switching for your automotive and amplifier projects.
Frequently Asked Questions
Where can I buy ROHM 2SAR554PHZGT100?
You can click on the BUY or RFQ button to purchase 2SAR554PHZGT100 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part 2SAR554PHZGT100?
You can download the 2SAR554PHZGT100 datasheet or visit the ROHM website for support.
Who is the manufacturer of 2SAR554PHZGT100?
ROHM
