ROHM SMLD12D8WT86C High-Brightness Surface-Mount LED
The SML-D12D8W(C) series is a high-brightness, reliable surface-mount LED designed for various illumination applications. With dimensions of 1.6 x 0.8mm and a thickness of 0.55mm, these LEDs are AEC-Q101 qualified, ensuring excellent quality and durability. They feature optimized electrical and optical characteristics including luminous intensity, forward voltage, and viewing angle, suitable for efficient lighting solutions. The series offers multiple colors such as red, orange, yellow, and green, with precise chromaticity and brightness ranks for versatile use in electronic devices and indicator lighting.
ROHM SMLD12D8WT86C High-Brightness Surface-Mount LED Specifications:
- Package: SML-D1M
- Dimensions: 1.6 x 0.8 mm, Thickness: 0.55 mm
- Color: Available in various colors including red, orange, yellow, green
- Electrical Characteristics: Luminous intensity, forward voltage, dominant wavelength, viewing angle
- Operating Temperature: Storage 5°C to 30°C, Humidity below 70%RH
- Shipping Quantity: 3000 units per reel, RoHS compliant
- Reflow Profile: Max peak temperature 260°C, heating rate under 3°C/sec
- Soldering: Reflow recommended, manual soldering with iron below 400°C for 3 sec
- Storage & Handling: Waterproof packing, bake at 60°C for 12-24 hr if necessary
- Application: Indicator lighting, backlighting, general illumination, electronic devices

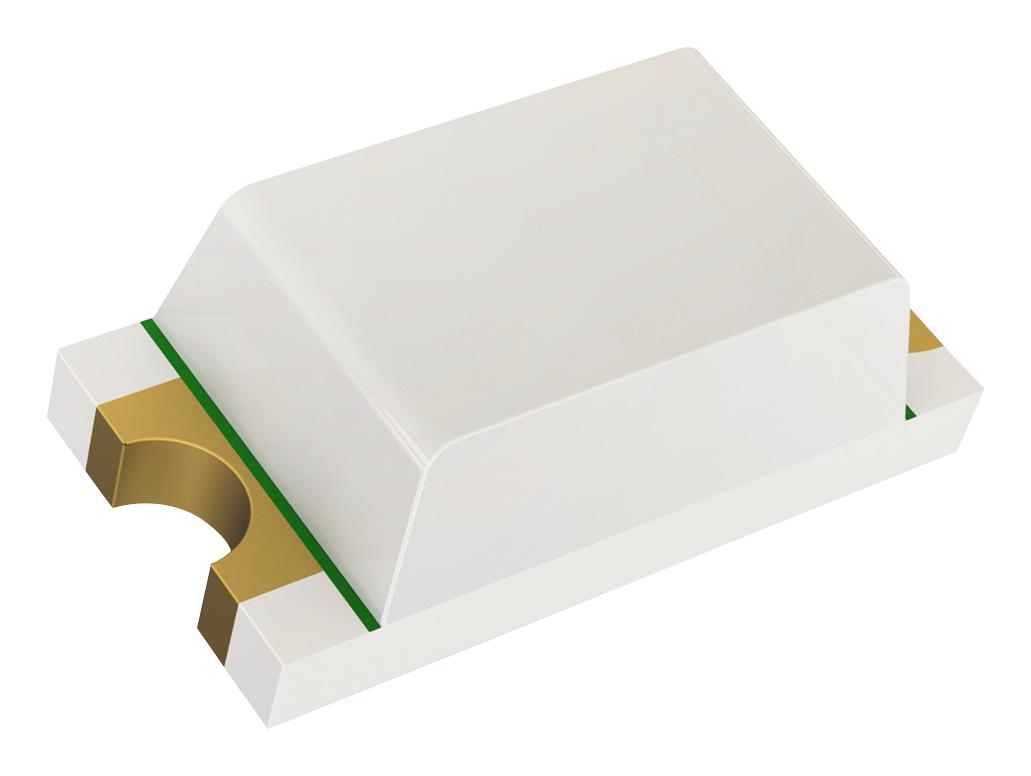

Buy the Buy ROHM SML-D12D8W High-Brightness LED Part Number SMLD12D8WT86C Online
Purchase the ROHM high-brightness surface-mount LED SML-D12D8WT86C online today to ensure superior lighting efficiency, excellent reliability, and precise color options. Designed for easy surface-mount installation in various electronic and illumination applications, this LED offers optimal optical performance and long-term durability. With a compact size of 1.6 x 0.8mm and standards compliant with RoHS, it’s the ideal choice for engineers and designers seeking high-quality, eco-friendly lighting solutions. Order now to enhance your product designs with reliable LED technology.
Buy ROHM SML-D12D8W(C) LED now and experience unmatched reliability and high optical performance for your electronic lighting projects.
Frequently Asked Questions
Where can I buy ROHM SMLD12D8WT86C?
You can click on the BUY or RFQ button to purchase SMLD12D8WT86C from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part SMLD12D8WT86C?
You can download the SMLD12D8WT86C datasheet or visit the ROHM website for support.
Who is the manufacturer of SMLD12D8WT86C?
ROHM
