ROHM SMLD15DWT86C Surface Mount LED
High-brightness surface mount LED designed for reflow soldering, suitable for various industrial lighting and indicator applications. Features include high reliability, original device technology, and AEC-Q101 qualification, ensuring durable performance. The series offers multiple colors such as red, orange, yellow, green, and blue, each with specific electrical and optical characteristics. Precise dimensions of 1.6 x 0.8 mm with a thickness of 0.55 mm facilitate easy mounting on circuit boards. Recommended soldering patterns, reflow profiles, and handling precautions ensure optimal installation and long-term operational stability.
ROHM SMLD15DWT86C Surface Mount LED Specifications:
- Size: 1.6 x 0.8 mm, thickness 0.55 mm
- Colors: Red, Orange, Yellow, Green, Blue
- Forward Voltage: Varies by color, typical 1.88-3.21 V
- Forward Current: Max 20 mA
- Storage Temperature: -40°C to +100°C
- Operating Temperature: -40°C to +100°C
- Luminous Intensity: Up to 633 mA for red, 592 mA for yellow
- Reflow Soldering: Max 2 times, profile detailed in datasheet
- Packaging: 3000 pieces per reel, moisture-proof packing
- Qualification: AEC-Q101 qualified
- Absolute Max Ratings: Power dissipation, reverse voltage, current details specified
- Recommended PCB Solder Pattern: 0.85 mm pitch

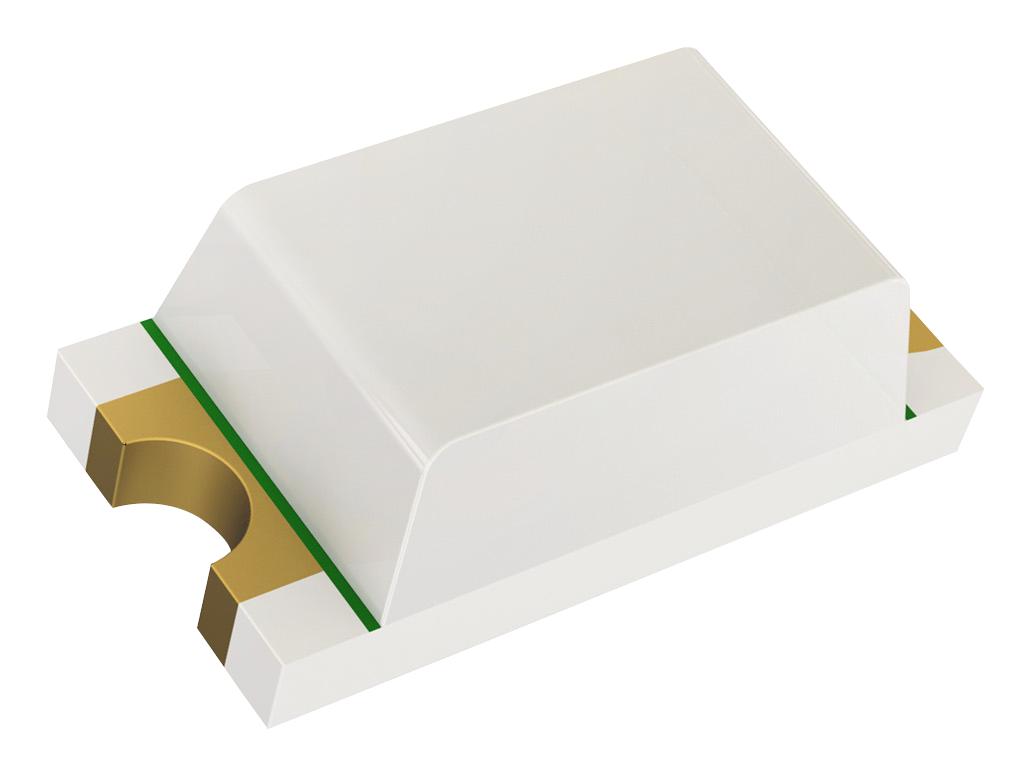

Buy the ROHM SML-D15U2 – Reliable LED for Industrial Applications
Get your ROHM Series SML-D15DWT86C LED today online and enjoy fast delivery, premium quality, and reliable performance for all your industrial lighting and indicator projects. Designed for reflow soldering, this compact high-brightness LED ensures excellent optical performance across multiple colors, with detailed specifications supporting easy integration into your circuit designs. Perfect for manufacturers and engineers seeking durable, qualified components, this LED series provides long-lasting reliability, with moisture-proof packing and recommended soldering profiles for optimal assembly quality. Buy online now to upgrade your projects!
Order your ROHM Series SML-D15DWT86C LED today and enhance your industrial lighting solutions with dependable, high-brightness illumination.
Frequently Asked Questions
Where can I buy ROHM SMLD15DWT86C?
You can click on the BUY or RFQ button to purchase SMLD15DWT86C from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part SMLD15DWT86C?
You can download the SMLD15DWT86C datasheet or visit the ROHM website for support.
Who is the manufacturer of SMLD15DWT86C?
ROHM
