ROHM STZ56NFHT146 Zener diode
The STZ5.6NFH is a compact, high-reliability zener diode suitable for voltage regulation applications. Designed with a silicon epitaxial planar structure and housed in a small SMD3 package (JEDEC SOT-346, JEITA SC-59), it offers a maximum zener voltage of 5.92V at a test current of 5mA. Its features include high reliability and small mold type for efficient surface-mounting. Suitable for electronic devices requiring stable voltage regulation, it has an absolute maximum junction temperature of 150°C and power dissipation up to 200mW, making it ideal for precise circuit design in compact spaces.
ROHM STZ56NFHT146 Zener diode Specifications:
- Maximum Zener Voltage: 5.92 V at 5mA
- Power Dissipation: 200 mW
- Junction Temperature: 150°C
- Storage Temperature: -55°C to +150°C
- Package: SMD3 (JEDEC SOT-346, JEITA SC-59)
- Construction: Silicon epitaxial planar
- Land Size: 1.4 mm x 0.8 mm (approximate)
- Maximum Reverse Current: 1.00 pA at 2.5V
- Dynamic Impedance: 60 Ω at 5mA
- Operation Resistance: 200 Ω at 5mA

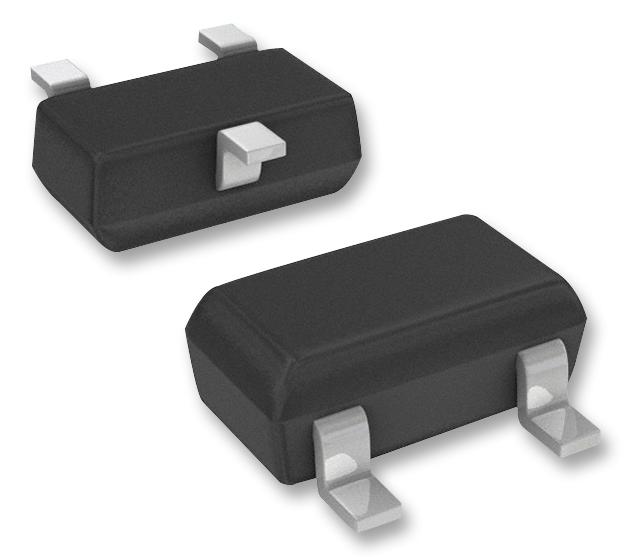

Buy the ROHM Series SMD Zener Diode: STZ5.6NFH
Purchase the ROHM STZ5.6NFH zener diode online today for precise voltage regulation. Its compact SMD3 package ensures easy surface-mount installation while offering high reliability and stable zener voltage up to 5.92V. With a maximum power dissipation of 200mW and a junction temperature of 150°C, this diode is ideal for high-performance electronic circuits in space-constrained environments. Count on ROHM’s quality for your circuit protection and voltage regulation needs—buy now for superior reliability and performance.
Buy ROHM STZ5.6NFH zener diode now and experience reliable voltage regulation in compact surface-mount packages.
Frequently Asked Questions
Where can I buy ROHM STZ56NFHT146?
You can click on the BUY or RFQ button to purchase STZ56NFHT146 from an authorized ROHM distributor.
How do I troubleshoot issues or seek technical support for part STZ56NFHT146?
You can download the STZ56NFHT146 datasheet or visit the ROHM website for support.
Who is the manufacturer of STZ56NFHT146?
ROHM
