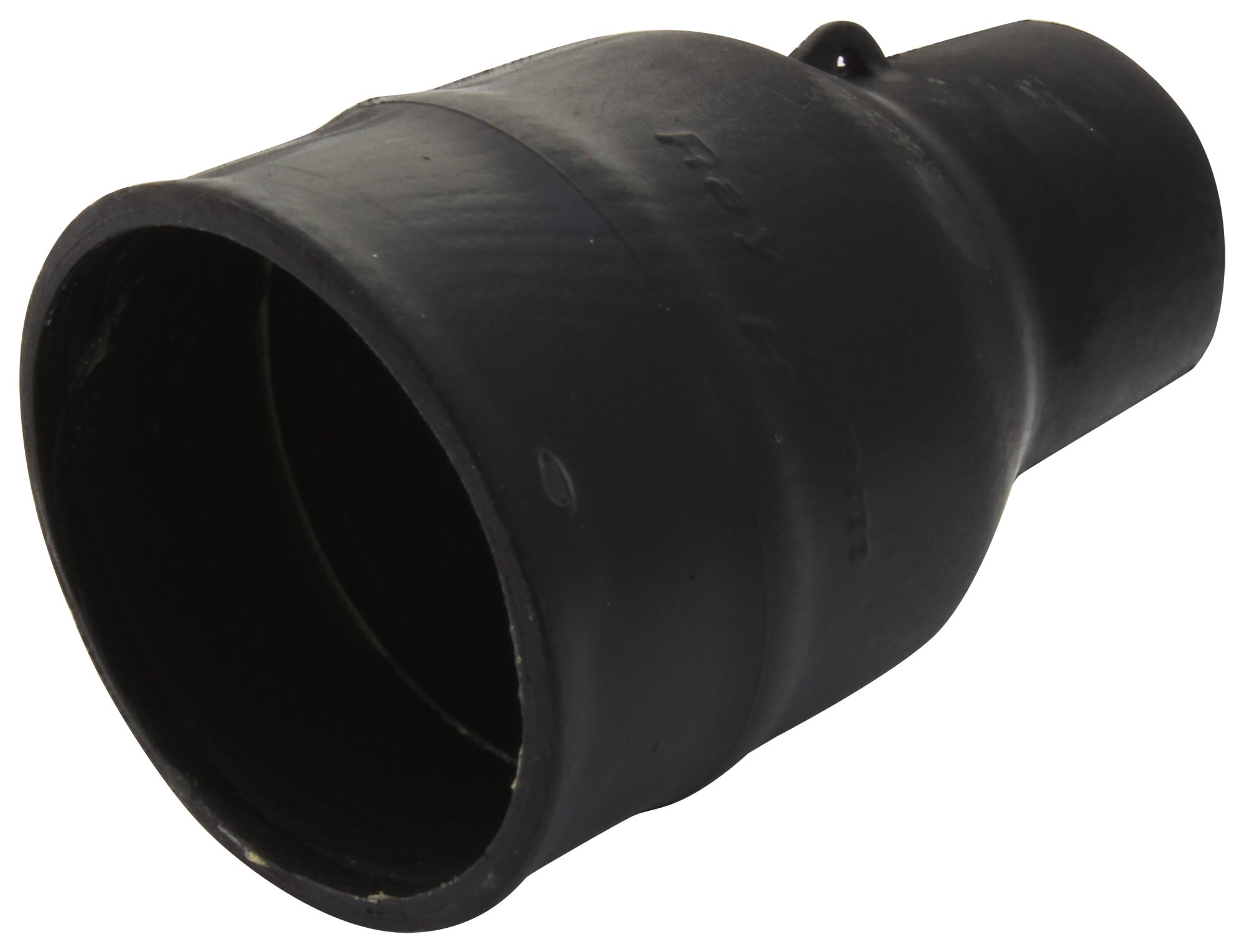

Raychem TE Connectivity 202W331250 Heat-Shrinkable Molded Part
The product is a high-performance heat-shrinkable molded part made from fluid-resistant modified elastomer. Designed for sealing and strain relief in military and industrial cable systems, it offers excellent resistance to high-temperature fluids and long-term heat exposure. Its semi-rigid, chemical-, and abrasion-resistant shape withstands temperatures from -75°C to 150°C. Suitable for use with complementary System 25 components, it shrinks at 135°C and is ideal for connector-cable terminations and cable transitions, ensuring durability in demanding environments.
Raychem TE Connectivity 202W331250 Heat-Shrinkable Molded Part Specifications:
- Material: Fluid-resistant modified elastomer
- Temperature Range: -75°C to 150°C
- Shrink Temperature: Above 135°C
- Recommended Installation Temperature: 175°C
- Color: Black
- Physical Properties: Tensile strength 15 MPa (min.), Elongation 350% (min.)
- Flammability: Burn time 120 s max.
- Electrical Resistance: ASTM D 149
- Fluid Resistance: JP-4, hydraulic fluid, diesel, gasoline resistance tested with tensile strength 12 MPa (min.), elongation 300% (min.)
- Operating in military and commercial environments with high-temperature and chemical resistance
Buy the Buy TE Heat-Shrinkable Molded Parts Part Number 202W331250 Online
Experience unmatched durability and performance by purchasing the TE heat-shrinkable molded part online. Designed for demanding military and industrial cable applications, this semi-rigid elastomer resists high temperatures, chemicals, and abrasion. It provides excellent sealing, strain relief, and long-term heat resistance from -75°C to 150°C. Easy to install with thermal shrinking at 135°C, ensuring a secure fit and protecting cable connections in harsh environments. Get yours today to guarantee reliable performance and long-lasting protection.
Buy TE 202W331250 now and ensure reliable sealing and strain relief in demanding high-temperature environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity 202W331250?
You can click on the BUY or RFQ button to purchase 202W331250 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part 202W331250?
You can download the 202W331250 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of 202W331250?
Raychem TE Connectivity
