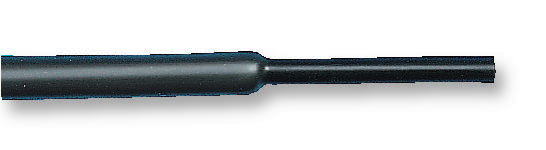

Raychem TE Connectivity RNF100120STK Polyolefin Heat Shrink Tubing
The RNF-100 series from TE Connectivity consists of general-purpose, flame-retardant, high-performance polyolefin heat shrinkable tubing. Made from irradiated modified polyolefin, this flexible, single-wall tubing features a 2:1 shrink ratio and is suitable for various applications. It offers excellent physical, chemical, and electrical properties, meeting industry and military standards. The tubing can withstand a maximum voltage of 600V, withstanding operating temperatures from -55°C to +135°C and minimum shrink temperature of +121°C. Available in a wide range of colors and sizes, it is resistant to fluids such as aviation fuel, hydraulic fluid, lubricating oil, and water. It complies with MIL-DTL-23053/5 Class 1 & 2 standards and is ideal for industrial use.
Raychem TE Connectivity RNF100120STK Polyolefin Heat Shrink Tubing Specifications:
- Material: Irradiated modified polyolefin
- Shrink Ratio: 2:1
- Maximum Voltage: 600V
- Operating Temperature Range: -55°C to +135°C
- Minimum Shrink Temperature: 121°C
- Standards: MIL-DTL-23053/5 Class 1 & 2, UL, CSA
- Color Options: Multiple including black, clear, red, blue, green, yellow
- Dimensions: D (expanded): 0.046 to 0.375 inches; Wall thickness: 0.016 to 0.094 inches
- Physical: Flexible, flame-retardant, single-wall tubing
- Chemical Resistance: Resistant to fluids like aviation fuel, hydraulic fluid, lubricating oil, water
- Electrical: Excellent dielectric strength and volume resistivity
- UL-recognized, CSA-certified at 125°C
- Temperatures: Continuous up to 135°C
Buy the Buy TE Connectivity RNF-100 Part Number RNF100120STK Online
Purchase the TE Connectivity RNF-100 heat shrink tubing online today to ensure robust insulation, strain relief, and protection against fluids. This flame-retardant, flexible polyolefin tubing meets military and industrial standards, supporting a voltage of up to 600V and operating across -55°C to +135°C. Its 2:1 shrink ratio offers easy application in diverse sizes. Ideal for insulating wires, bundles, or components, it is resistant to chemicals, fluids, and mechanical abrasion. This high-quality tubing guarantees dependable performance in demanding environments, making it the perfect choice for professionals needing durable, reliable electrical protection.
Buy TE Connectivity RNF-100 now and experience unmatched reliability and high-performance insulation for industrial and military applications.
