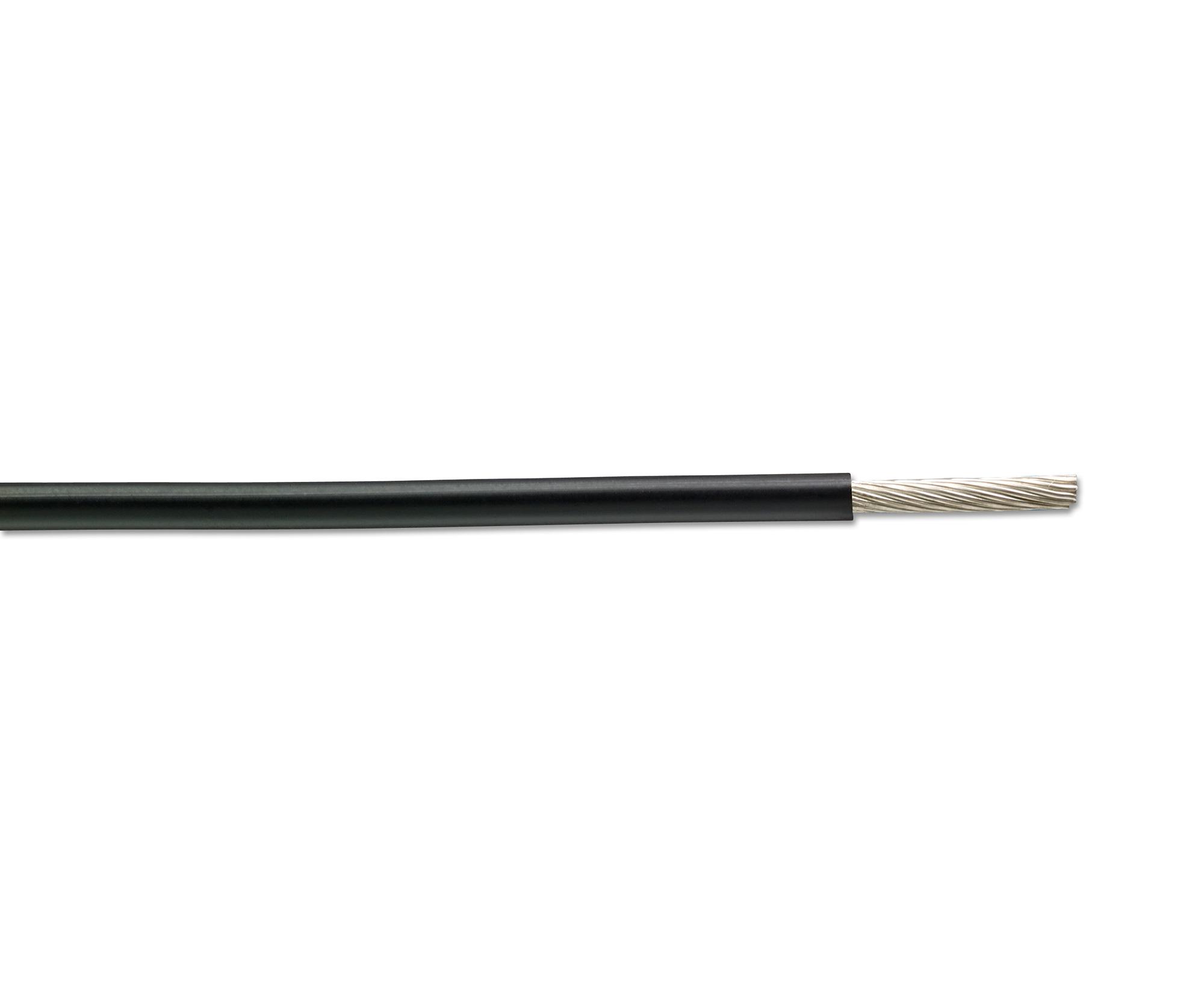

Raychem TE Connectivity 99M0111220 Control Wire
This lightweight control wire features modified polyester insulation and tin-plated copper conductors, rated at 600 volts. Designed for reliable electrical connections, it comes in various strand configurations such as 19/0.12 mm, 19/0.20 mm, and 37/0.25 mm, ensuring versatility for different applications. With insulation thickness from 0.15 to 0.20 mm and conductor diameters ranging from 0.33 to 1.82 mm, this wire offers optimal resistance and durability. Approved under Def Stan 61-12, it is suitable for critical control and instrumentation uses in industrial environments.
Raychem TE Connectivity 99M0111220 Control Wire Specifications:
- Conductor Material: Tin-plated copper
- Insulation Material: Modified polyester
- Voltage Rating: 600 volts
- Conductor Stranding: 19/0.12 mm, 19/0.20 mm, 37/0.25 mm varieties
- Conductor Diameter: 0.33 mm to 1.82 mm
- Insulation Thickness: 0.15 to 0.20 mm
- Resistance: Ranges from 259 ohms/km to 7.6 ohms/km depending on size
- Weight: 1.50 kg/km to 20.7 kg/km
- Approval: Type 1 of Def Stan 61-12
- Temperature Rating: Suitable for control and electronic systems
- Colour Codes: Determined by standard code designations
- Standards Compliance: Approved to Def Stan 61-12
- Certifications: S&DU/BCC/30/12/002/001A
Buy the TE Series Control Wire: 99M0111220
Purchase the TE Series Control Wire 99M0111220 online today for your industrial control and instrumentation needs. This lightweight, 600-volt rated wire features durable polyester insulation and tin-plated copper conductors. Available in multiple strand configurations, it offers excellent resistance and flexibility. Ideal for control panels, automation, and electronic devices, this wire meets strict standards such as Def Stan 61-12, ensuring safety and efficiency. Buy online now for fast delivery and trusted quality to keep your projects running smoothly and reliably.
Order your TE Series Control Wire 99M0111220 today and ensure reliable performance in your industrial control systems with high-quality insulation and conductors.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity 99M0111220?
You can click on the BUY or RFQ button to purchase 99M0111220 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part 99M0111220?
You can download the 99M0111220 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of 99M0111220?
Raychem TE Connectivity
