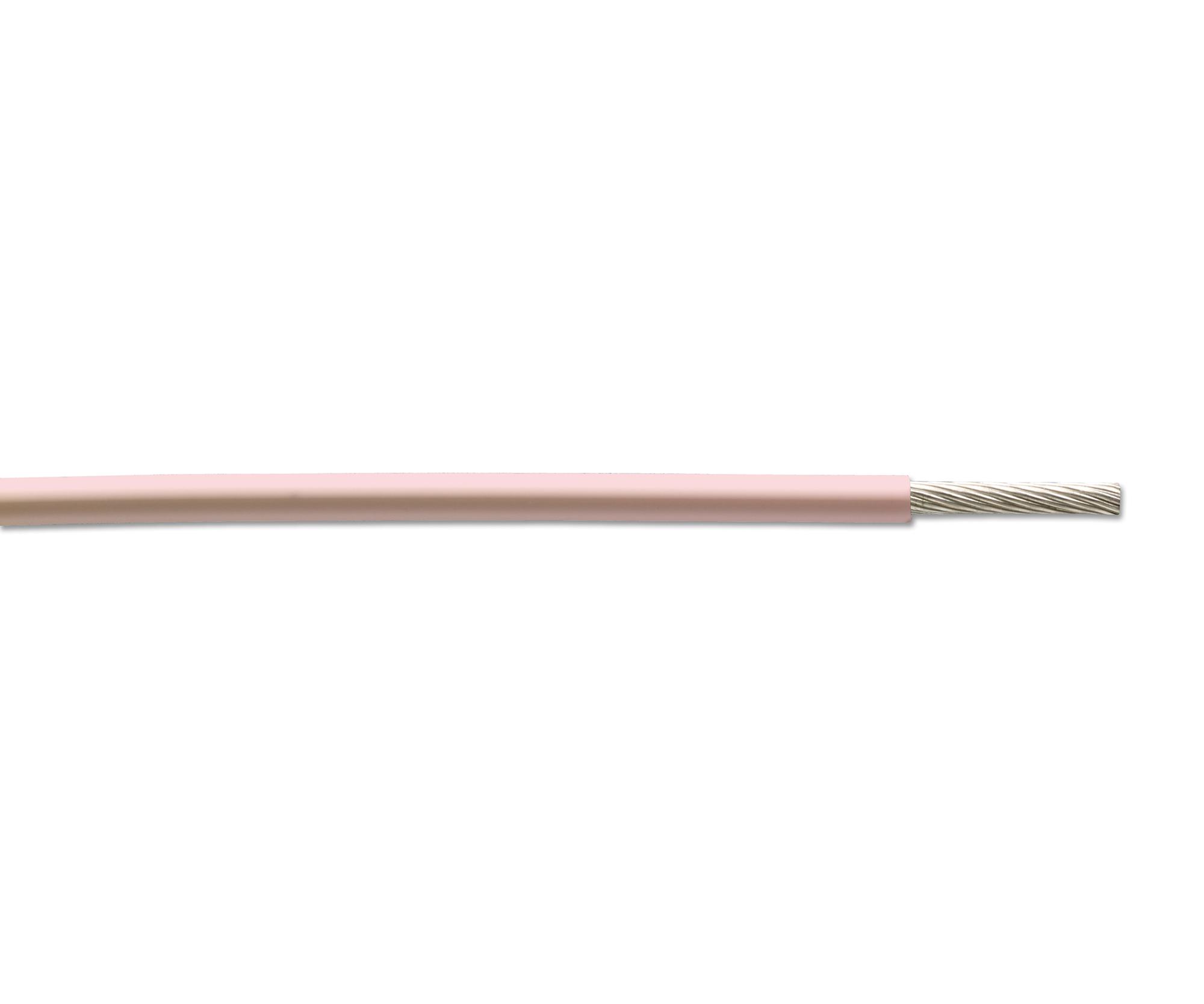

Raychem TE Connectivity 99M0111229 Control Wire
Lightweight, modified polyester insulated wire rated for 600 volts, designed for industrial wiring applications. The wire features tin-plated copper conductors with radiation crosslinked insulation, available in various sizes and colors. Its durable insulation with a thickness ranging from 0.15 to 0.20 mm ensures reliable performance in demanding environments. The cables are rated for resistance between 10.9 and 259 ohms/km depending on gauge, making them suitable for control panels, machinery, and electrical systems requiring high-quality wiring. Certification and approvals ensure compliance with industry standards for safety and reliability.
Raychem TE Connectivity 99M0111229 Control Wire Specifications:
- Conductor Material: Tin Plated Copper
- Insulation Material: Modified Polyester, Radiation Crosslinked
- Voltage Rating: 600 Volt
- Diameter Range: 0.12 mm to 0.30 mm depending on size
- Resistance Range: 10.9 to 259 ohms/km
- Insulation Thickness: 0.15 to 0.20 mm
- Color Code: According to Mil Std 681 (e.g., White as 99M0111-20-9)
- Ambient Temperature Rating: Not specified, typically up to 105°C
- Approval: Compliant with Def Stan 61-12 Type 1, Certification No: S&DU/BCC/30/12/002/001A
- Certifications: ISO, UL, CSA (as applicable), industry approved
Buy the TE Connectivity 99M0111-22-9 – Reliable Control Wiring for Industrial Applications
Enhance your electrical setup with TE Connectivity control wire rated for 600 volts, featuring radiation crosslinked polyester insulation and tin-plated copper conductors. Designed for durability and high performance, this lightweight wiring solution offers multiple sizes and color options to meet your specific needs. Its certification ensures compliance with industry standards, making it suitable for control panels, machinery, and electrical systems where reliability is essential. Ordering online guarantees quick delivery and easy integration into your industrial projects.
Get TE Connectivity 99M0111-22-9 today—built for precision control and long-lasting durability in industrial wiring projects.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity 99M0111229?
You can click on the BUY or RFQ button to purchase 99M0111229 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part 99M0111229?
You can download the 99M0111229 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of 99M0111229?
Raychem TE Connectivity
