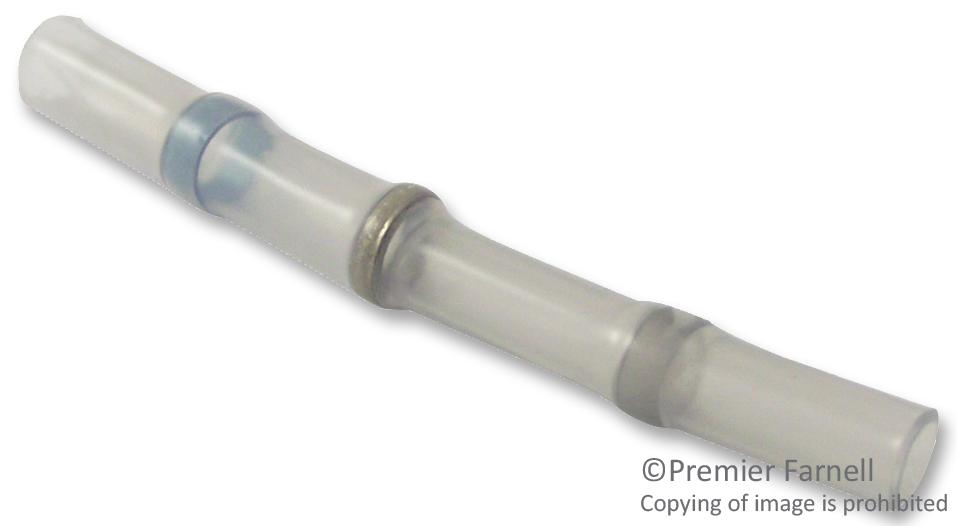

Raychem TE Connectivity B1553805 Shield Termination Device
This controlled soldering device is designed for secure termination of bare or tin-plated copper shields on cables rated for at least +85°C. Made from heat-shrinkable, transparent cross-linked polyolefin insulation, it features a thermally stabilized, blue or clear thermoplastic melting ring, and solder preform with flux for reliable connections. Suitable for applications requiring temperature tolerance from -55°C to +125°C, it meets Tyco Electronics RT-1404 standards, ensuring durability, compatibility, and high-performance cable termination in demanding industrial environments. Easy to install with specified procedures for optimal results.
Raychem TE Connectivity B1553805 Shield Termination Device Specifications:
- Material: Heat-shrinkable, transparent cross-linked polyolefin insulation
- Solder: Sn42Bi58 alloy per ANSI/J-STD-006
- Flux: Type ROMI per ANSI/J-STD-004
- Meltable Ring: Thermally stabilized thermoplastic, blue or clear
- Temperature Range: -55°C to +125°C
- Application: Termination of bare or tin-plated copper shields on cables rated for minimum +85°C
- Dimension Tolerance: ±0.2 mm or as specified in individual models
- Cable Compatibility: Suitable for cables with insulation rated for at least +85°C
- Approval: Meets Tyco Electronics / Raychem RT-1404 performance requirements
- Installation: Requires specific procedure and equipment as per referenced standards
Buy the Tyco Electronics B1553805 – Reliable Cable Shield Termination for Industrial Applications
Experience top-quality cable termination with the Shield Termination Device, designed for industrial environments. Made from durable, heat-shrinkable polyolefin, it features a reliable solder preform with flux, ensuring robust connections for shields, grounding, and grounding bus applications. Suitable for cables rated for at least +85°C, it offers excellent temperature tolerance from -55°C to +125°C. Easy to install with the correct procedure, this device ensures safe, high-performance, and compliant cable terminations in demanding applications. Order online today for fast delivery!
Buy Tyco Electronics B1553805 now and experience unmatched reliability and performance in cable termination and shield grounding.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity B1553805?
You can click on the BUY or RFQ button to purchase B1553805 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part B1553805?
You can download the B1553805 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of B1553805?
Raychem TE Connectivity
