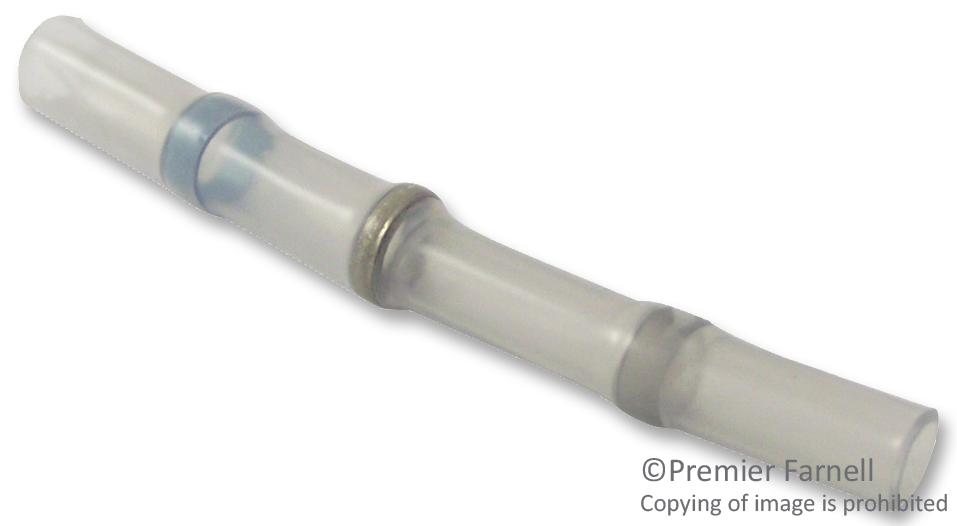

Raychem TE Connectivity B1553806 Shield Termination Device
The controlled soldering device is designed for terminating bare or tin-plated copper shields on cables with insulation rated at least +85°C. Made with heat-shrinkable, transparent polyolefin insulation sleeve, thermally stabilized thermoplastic meltable rings in clear and blue, and solder preforms with flux, it ensures reliable connections within a temperature range of -55°C to +125°C. Suitable for applications requiring performance per Raychem RT-1404 standards, this device features precise dimensions and robust materials for secure cable termination in industrial and electronic environments.
Raychem TE Connectivity B1553806 Shield Termination Device Specifications:
- Material: Heat-shrinkable, transparent polyolefin insulation sleeve
- Solder: Sn42Bi58 alloy per ANSI / J-STD-006
- Flux: ROMI type per ANSI / J-STD-004
- Thermoplastic meltable rings: Clear and blue, thermally stabilized
- Temperature Range: -55°C to +125°C
- Cable Insulation Rating: At least +85°C minimum
- Dimensions: Based on cable size, e.g., B-155-3806 with max diameter 6.01 mm and min 0.235 mm
- Application: Termination of copper shields on cables, meets RT-1404 standards
- Compliance: Designed for reliable connections in industrial and electronic environments
- Preparation: Proper cable preparation essential for optimal performance
Buy the Tyco Series Shield Termination: B1553806
Experience superior cable termination with this shield termination device featuring heat-shrinkable insulation, accurate solder rings, and flux for secure connections. Designed to withstand temperatures from -55°C to +125°C, it ensures reliable performance in industrial and electronic applications. The device’s thermally stabilized meltable rings in clear and blue provide easy installation and long-lasting connections. Its precise dimensions suit a variety of cable sizes, making it an essential component for professionals seeking durable and compliant termination solutions for high-temperature environments. Purchase online now for efficient, dependable performance.
Buy Tyco B1553806 now and experience unmatched reliability and performance in cable shielding applications.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity B1553806?
You can click on the BUY or RFQ button to purchase B1553806 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part B1553806?
You can download the B1553806 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of B1553806?
Raychem TE Connectivity
