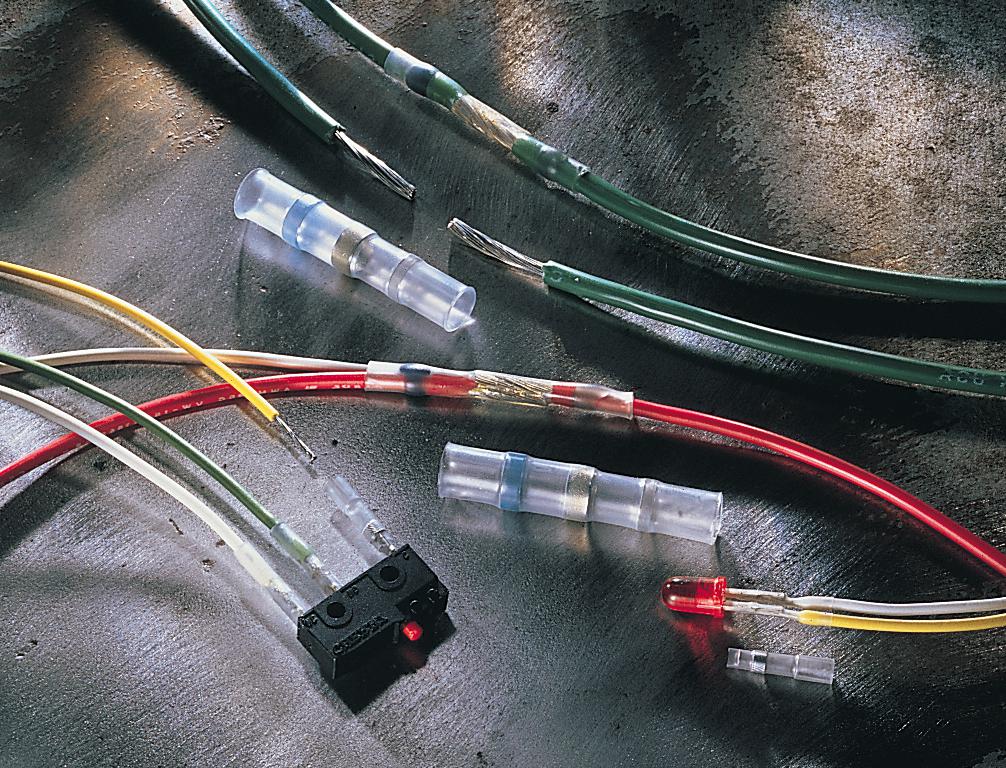

Raychem TE Connectivity CWT3801 Shield Terminator
The CWT-3801 is a high-quality shield terminator featuring a radiation-cross-linked, transparent heat-shrinkable polyolefin insulation. It combines a fluxed solder element within the sleeve to provide quick, reliable, and fully encapsulated wire terminations. Designed for wires up to 125°C, it ensures strain relief and robust electrical connections. Suitable for outdoor and harsh environments, this one-step solution supports wire sizes from 12 to 26 AWG, offering easy inspection through its clear sleeve. Its cost-effective design streamlines wiring and splicing in electrical, aerospace, and industrial applications.
Raychem TE Connectivity CWT3801 Shield Terminator Specifications:
- Material: Heat-shrinkable, radiation cross-linked modified polyolefin, transparent
- Solder: Type CD18 per ANSI J-STD-006 with flux Type ROMI per ANSI J-STD-004
- Meltable Ring: Thermally stabilized thermoplastic, color: clear and blue
- Temperature Range: -55°C to +125°C
- Wire Range: 12 AWG to 26 AWG
- Solder Element Length: tailored for reliable connections
- Sleeve: One-piece design for easy installation and inspection
- Application: Suitable for cable splicing with insulation rated for minimum +85°C
Buy the TE Connectivity Series CWT Shield Terminator: CWT3801
Enhance your wiring projects with the TE Connectivity Series CWT3801 shield terminator, a one-step, heat-shrinkable solution featuring a fluxed solder element. Ideal for outdoor and industrial environments, it supports wire sizes from 12 to 26 AWG, offering secure, strain-relieved connections up to 125°C. Its transparent polyolefin gives easy inspection, simplifying quality control. Designed for fast installation, this shield terminator combines durability and reliability, making it perfect for electrical, aerospace, and harsh environment applications. Purchase online today for high-quality, cost-effective wiring solutions.
Order your TE Connectivity Series CWT3801 shield terminator today and ensure fast, reliable wire splicing with easy inspection and maximum temperature performance.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity CWT3801?
You can click on the BUY or RFQ button to purchase CWT3801 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part CWT3801?
You can download the CWT3801 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of CWT3801?
Raychem TE Connectivity
