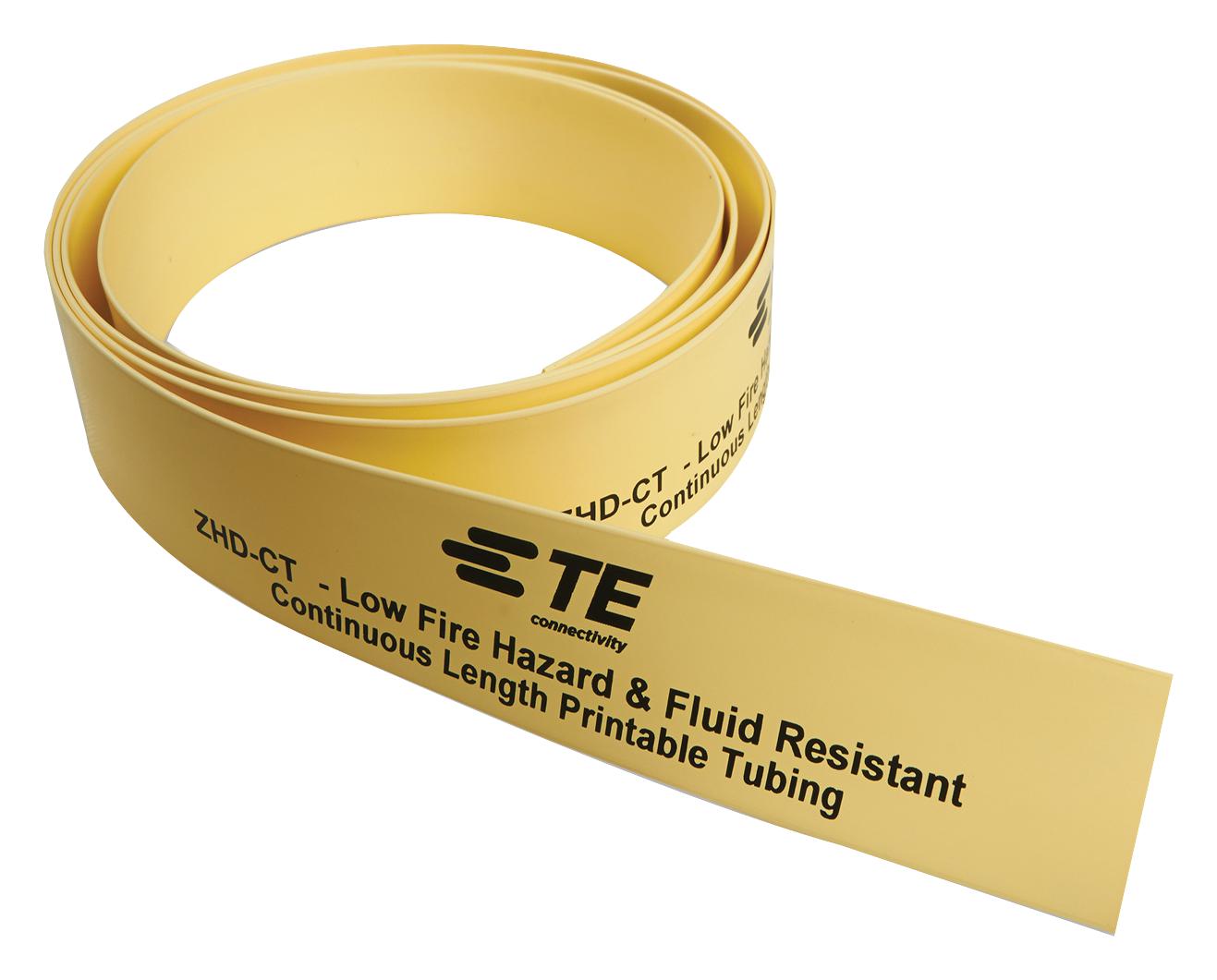

Raychem TE Connectivity ZHDCT50M48OUT9 Heat Shrink Marker Sleeve
The ZHD-CT series is a heat shrinkable wire marker designed for high-performance installation environments. It combines features of the D-CT and HX-CT series, offering zero halogen content and diesel resistance. The material is self-extinguishing, non-flame propagating, and resistant to industrial fluids as specified by TE standard RW-2536. It has a 2:1 shrink ratio and comes in a 50-meter (160-foot) spool. The operating temperature range is from -55°C to +125°C, making it suitable for demanding applications.
Raychem TE Connectivity ZHDCT50M48OUT9 Heat Shrink Marker Sleeve Specifications:
- Shrink Ratio: 2:1
- Spool Length: 50 meters
- Inside Diameter Options: 2.4mm to 38.1mm
- Material: Cross-linked, self-extinguishing, zero halogen
- Resistance: Diesel resistant, industrial fluid resistant (TE RW-2536)
- Temperature Range: -55°C to 125°C
- Fire Classification: EN45545-2 Fire Hazard Classification 1 and 2
- Standards: EN 45545-2, BS 6853, EN 50343, NFPA 130, Federal Railroad Administration
- Color Options: Yellow, White, Brown, Red, Orange, Green, Blue, Violet, Grey, Black
- Spool Sizes: From 2.4mm to 38.1mm expanded inside diameter
Buy the TE Connectivity ZHD-CT – Reliable Heat Shrink Identification System for Industrial Applications
Enhance your wiring and cable identification with TE Connectivity ZHD-CT heat shrink marker sleeves, designed for durability and safety in industrial and railway applications. These sleeves feature zero halogen, diesel resistance, and a 2:1 shrink ratio, ensuring a secure fit on a variety of wire sizes. Suitable for environments with high temperature ranges from -55°C to 125°C, they meet stringent fire safety standards like EN45545-2. Conveniently available in multiple colors and sizes, order online today for reliable, high-performance cable management.
Buy TE Connectivity ZHD-CT heat shrink marker sleeves now and ensure high-performance, safety, and resistance in demanding industrial or railway environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity ZHDCT50M48OUT9?
You can click on the BUY or RFQ button to purchase ZHDCT50M48OUT9 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part ZHDCT50M48OUT9?
You can download the ZHDCT50M48OUT9 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of ZHDCT50M48OUT9?
Raychem TE Connectivity
