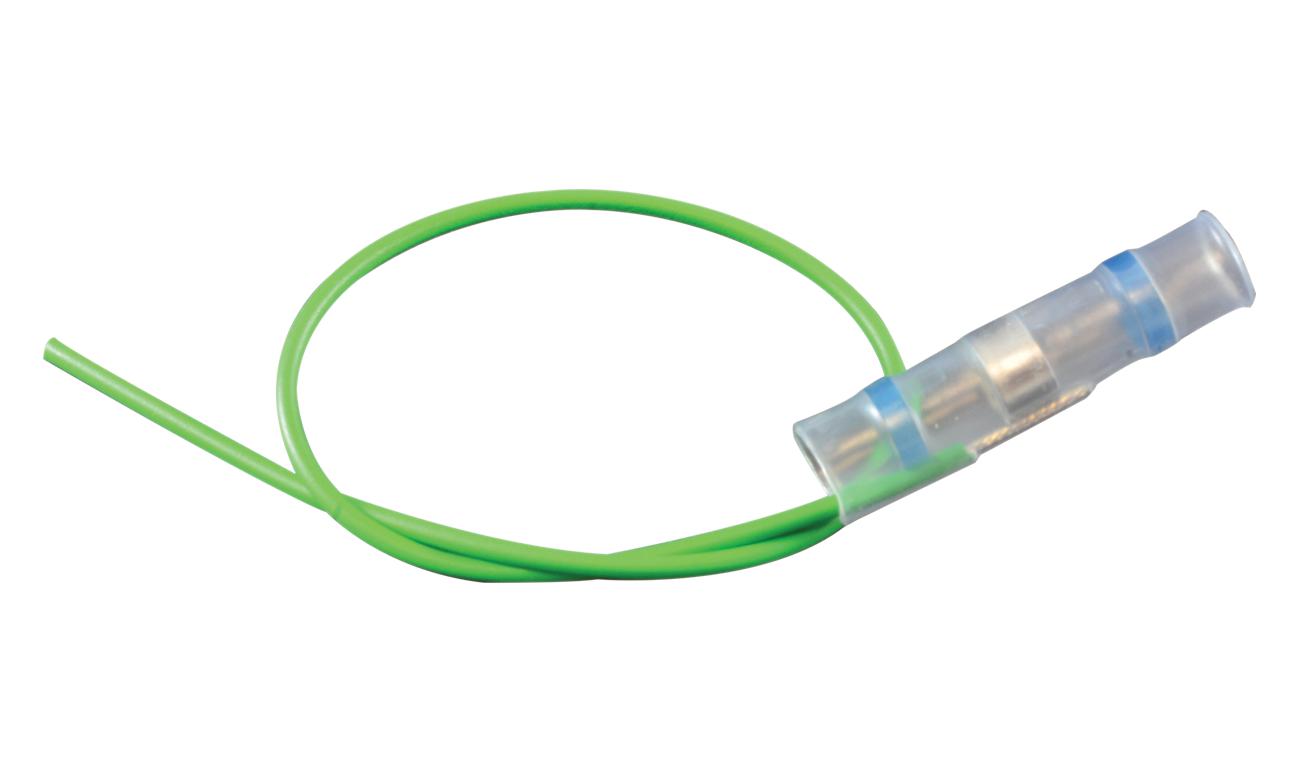

Raychem TE Connectivity CWT5W1225 Shielded Solder Sleeve Terminal
The CWT-5-W122-5 solder sleeve terminal features a heat-resistant, transparent insulation sleeve made from radiation cross-linked modified polyolefin. It includes a thermally stabilized, meltable thermoplastic sealing ring that ensures a secure and leak-proof connection. The ground lead is a green, stranded, tin-plated copper wire made by Raychem, designed for high conductivity and corrosion resistance. Suitable for industrial applications, this controlled soldering device adheres to strict temperature ratings and installation standards, providing reliable termination for cables with insulation ratings of at least +85°C and operating temperatures from -55°C to +125°C.
Raychem TE Connectivity CWT5W1225 Shielded Solder Sleeve Terminal Specifications:
- Insulation Sleeve: Transparent heat-shrinkable radiation cross-linked modified polyolefin
- Solder: Type Cd18 per ANSI/J-STD-006
- Flux: TYPE ROMI per ANSI/J-STD-004
- Sealing Ring: Thermally stabilized thermoplastic, meltable
- Ground Lead: Raychem cross-linked polyethylene wire, AWG22, stranded, tin-plated copper, color green
- Temperature Range: -55°C to +125°C
- Application: Suitable for cable insulation rated at +85°C, meets TE Connectivity/Raychem Specification RT-1404
- Dimensions: Refer to diagram; length approximately 24.50 mm to 35.50 mm, diameter varied
- Material: Polyolefin insulator, thermoplastic melt ring, tin-plated copper conductor
- Certification/Standards: Meets industry safety standards for industrial electrical terminations
Buy the Tyco Series CWT Shielded Solder Sleeve Terminal: CWT5W1225
Order the Tyco Series Shielded Solder Sleeve Terminal CWT5W1225 today and enjoy high-quality, durable cable termination solutions designed for industrial applications. Featuring radiation cross-linked polyolefin insulation, a thermally stabilized meltable ring, and a green tin-plated copper ground lead, this device ensures secure, leak-proof connections across a temperature range of -55°C to +125°C. Ideal for terminating cables with insulation ratings of at least +85°C, it meets TE Connectivity standards, making it an excellent choice for demanding environments. Purchase online now and benefit from fast delivery and reliable support.
Buy Tyco Series CWT5W1225 now and experience unmatched reliability and performance in cable termination and industrial wiring solutions.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity CWT5W1225?
You can click on the BUY or RFQ button to purchase CWT5W1225 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part CWT5W1225?
You can download the CWT5W1225 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of CWT5W1225?
Raychem TE Connectivity
