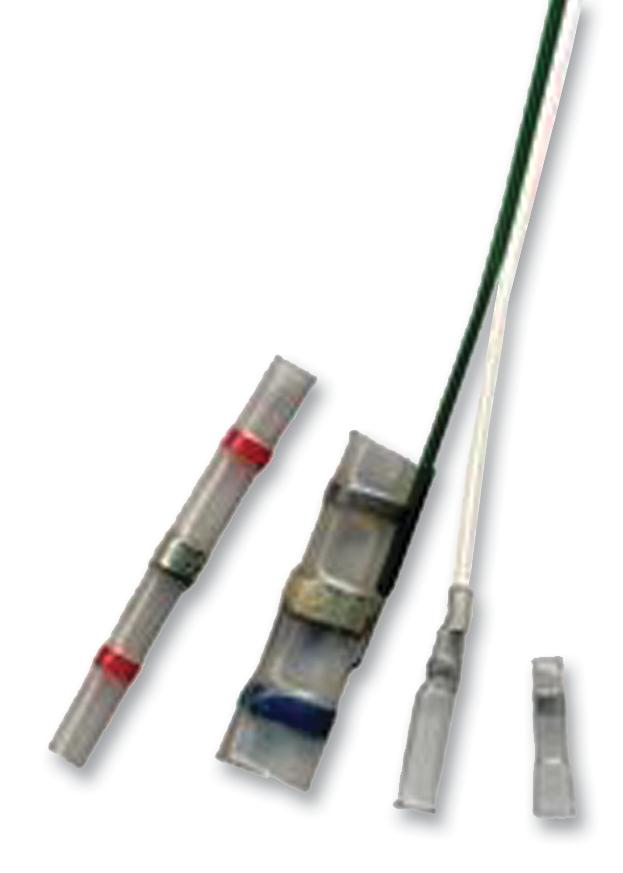

Raychem TE Connectivity CWT9003 Wire Splice
The CWT9003 is a high-quality wire-to-wire splicing solution designed for industrial electrical and electronics applications. Made from radiation-crosslinked heat-shrinkable polyolefin, it offers excellent insulation, strain relief, and easy installation with a one-piece design. Suitable for wire gauges from 22 to 20 AWG, this splice operates reliably at temperatures from -55°C to +125°C, ensuring durability and performance in splashproof environments. UL and CUL recognized, it features thermochromic temperature indicators for quick inspection and termination verification.
Raychem TE Connectivity CWT9003 Wire Splice Specifications:
- Material: Radiation-crosslinked heat-shrinkable polyolefin
- Temperature Rating: -55°C to +125°C
- Voltage Drop: 20 mV
- Insulation Resistance: 1000 megohms
- Dielectric Strength: 20 kV
- Tensile Strength: Exceeds conductor strength
- Operation Environment: Splashproof, UL and CUL recognized
- Applicable Wire Size: 22 AWG to 20 AWG
- Insulation Material: Meltable thermoplastic
- Solder Material: Sn50 Pb32Cd18, Flux: ROM1 per ANSI-J-004
- Certifications: UL Recognized, CUL Recognized
Buy the Tyco CWT9003 – Reliable Wire Splicing for Industrial Applications
Purchase the Tyco CWT9003 wire splice online today to ensure secure, efficient, and reliable electrical connections. Designed to accommodate wires from 22 to 20 AWG, this heat-shrinkable splice features high-performance insulation, strain relief, and quick inspection with thermochromic indicators. Its temperature range from -55°C to +125°C suits a variety of demanding environments, including splashproof applications. Recognized by UL and CUL, the CWT9003 offers simple installation, durability, and optimal electrical performance for industrial, electronics, and electrical wiring projects. Order now to benefit from fast delivery and expert customer support.
Buy Tyco CWT9003 now and experience unmatched reliability and performance in electrical wiring and electronics projects.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity CWT9003?
You can click on the BUY or RFQ button to purchase CWT9003 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part CWT9003?
You can download the CWT9003 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of CWT9003?
Raychem TE Connectivity
