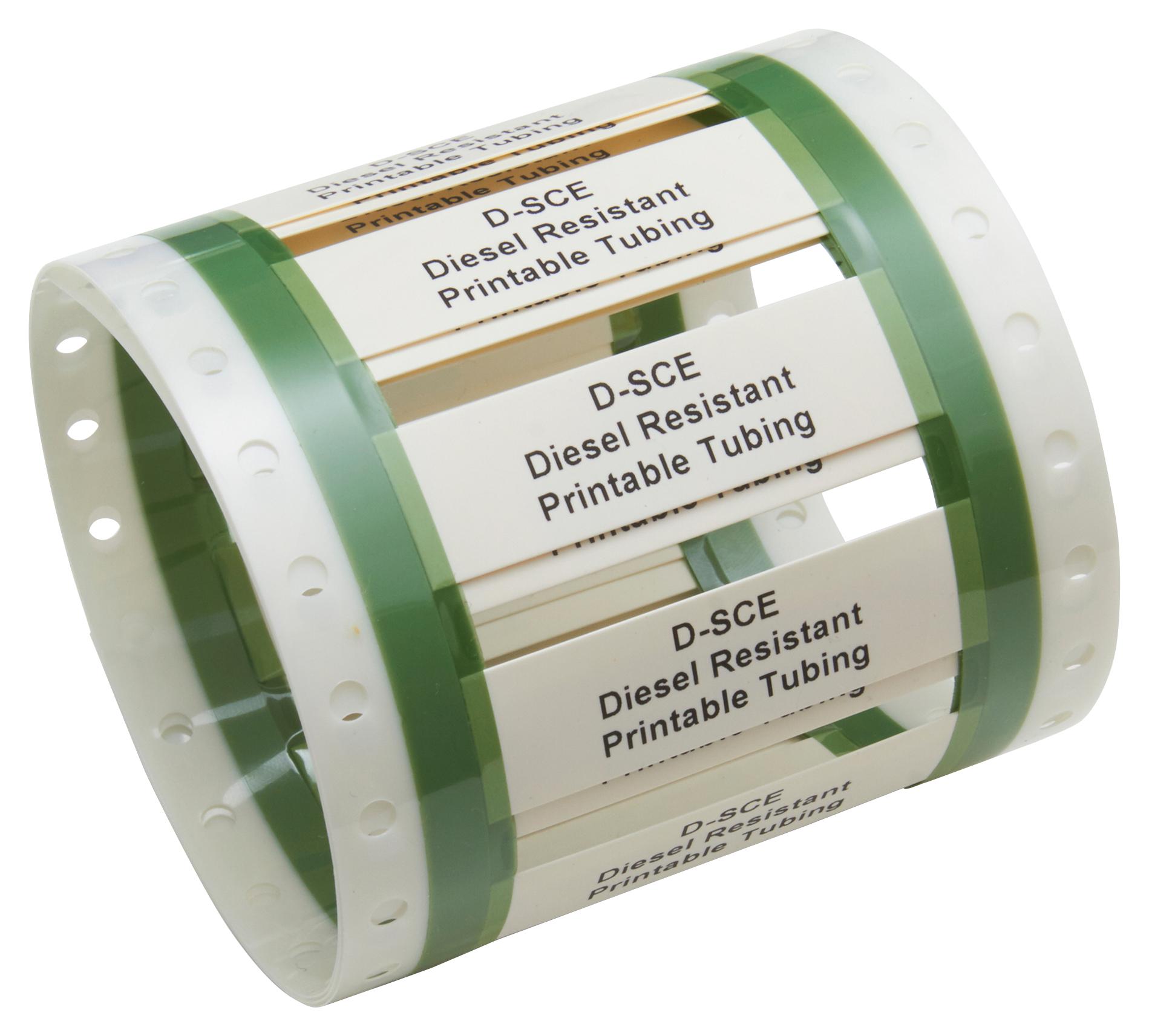

Raychem TE Connectivity DSCE1K32509 Heat Shrink Identification Sleeves
D-SCE is a diesel-resistant, fluid-resistant, heat shrink identification sleeving designed for wire and cable labeling in rugged environments. Manufactured with e-beam technology, it offers excellent print performance, ensuring markings remain clear after shrinking. It complies with rail standards NF F 00608, BS EN 50343, and SAE-AMS-DTL-23053/6, making it suitable for industrial, railway, and military applications. The sleeving features a 3:1 shrink ratio for diameters from 2.4mm to 38.1mm and operates effectively within -75°C to 135°C, providing reliable, flame-retardant markings in diverse conditions.
Raychem TE Connectivity DSCE1K32509 Heat Shrink Identification Sleeves Specifications:
- Shrink ratio: 3:1 (38.1mm to 2.4mm)
- Operating temperature: -75°C to 135°C
- Inside diameter range: 2.4mm to 38.1mm
- Material: Crosslinked polyolefin
- Flammability: Self-extinguishing, UL 94V-0 compliant
- Standards: NF F 00608, BS EN 50343, SAE-AMS-23053/6
- Resistance to: Fuels, oils, lubricants, industrial fluids
- Color options: Yellow, White, Blue, Pink
- Print performance: High adherence and solvent resistance
- Use: Reliable identification for wire and cable in harsh environments
Buy the Buy TE Connectivity Heat Shrink Identification System Part Number DSCE1K32509 Online
Purchase TE Connectivity D-SCE heat shrink identification sleeves online now for reliable cable marking in industrial, railway, and military applications. Designed for rugged environments, these sleeves resist fuels, oils, and chemicals while providing clear, durable markings that adhere well after shrinking. With a wide diameter range from 2.4mm to 38.1mm and a 3:1 shrink ratio, they ensure excellent fit and identification in challenging conditions. Easy to use, flame-retardant, and compliant with international standards, these sleeves are essential for wire management projects requiring durability and high-performance markings.
Order your TE Connectivity D-SCE diesel-resistant heat shrink identification sleeves today and ensure durable, high-quality wire marking in tough environments.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity DSCE1K32509?
You can click on the BUY or RFQ button to purchase DSCE1K32509 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part DSCE1K32509?
You can download the DSCE1K32509 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of DSCE1K32509?
Raychem TE Connectivity
