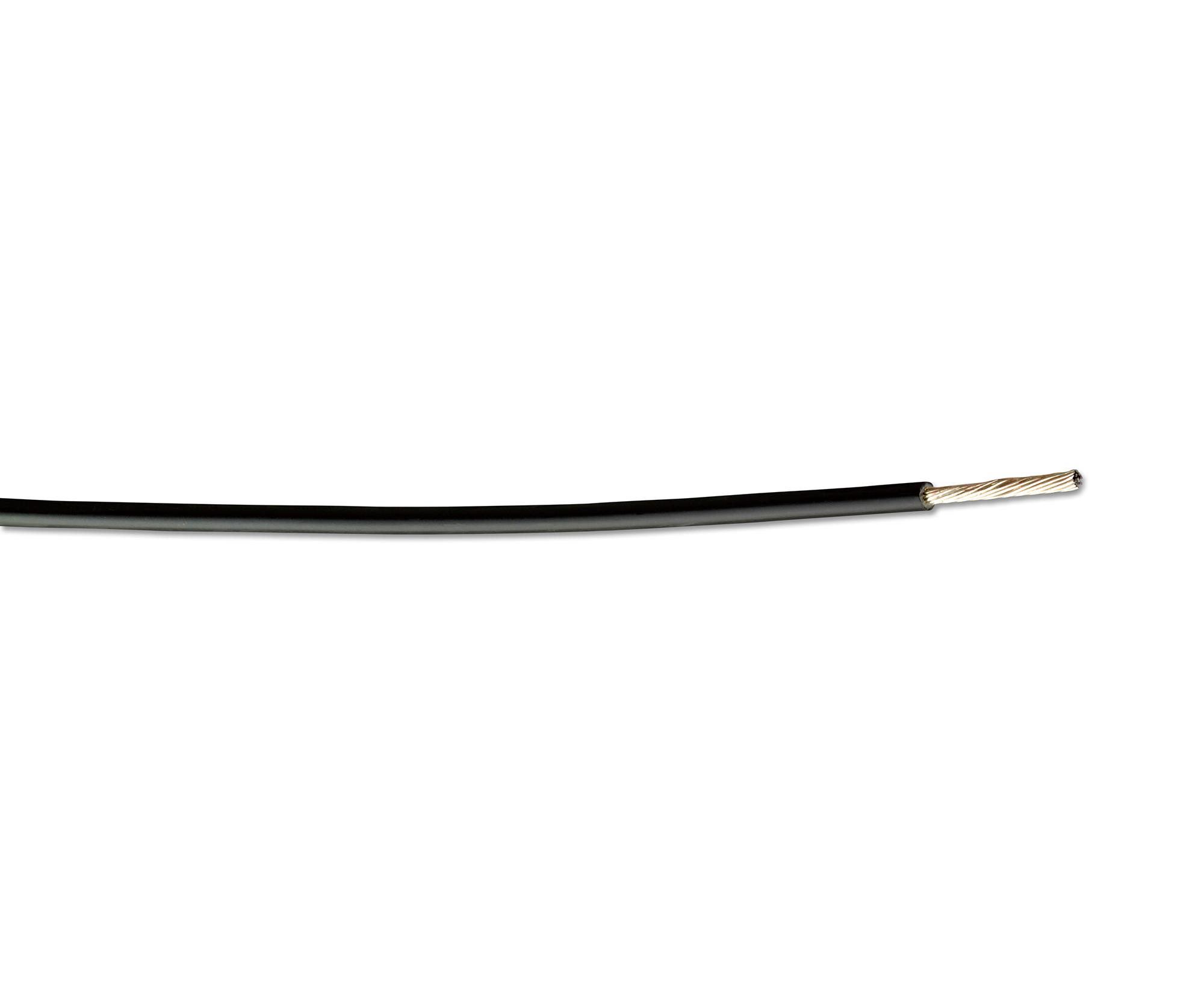

Raychem TE Connectivity FLHTC03110500 High Temperature Hookup Wire
This high-temperature hookup wire features tin-plated copper conductors with radiation crosslinked insulation suitable for demanding environments. It is insulated with modified ETFE rated at 200°C and 600 volts, complying with UL 758 and other safety standards. Available in various sizes, such as 0.25 mm² to 2.50 mm², it offers excellent thermal stability, tensile strength, and insulation resistance. Designed for reliable electrical connections in industrial and aerospace applications, it ensures durability, flexibility, and safety under extreme temperatures and voltage conditions, making it an essential component for specialized wiring tasks.
Raychem TE Connectivity FLHTC03110500 High Temperature Hookup Wire Specifications:
- Conductor Material: Tin-plated copper
- Insulation Material: Modified ETFE
- Temperature Rating: 200°C
- Voltage Rating: 600 volts
- Insulation Thickness: 0.15 mm minimum for sizes 0.25 - 2.00 mm², 0.165 mm minimum for 2.50 mm²
- CSA Stranding: 19/0.13 to 19/0.41 depending on size
- Diameter: Varies from 0.55 mm to 1.85 mm (nominal)
- Resistance: 83.3 ohms/km to 8.2 ohms/km depending on size
- Tensile Strength: 37.7 N/mm² minimum
- Insulation Resistance: 1524 Mohm.km minimum
- Shrinkage: 3 mm maximum at each end at 200°C/1 hour
- Test Standards: UL 758, WCD3106, UL File E38136
- Compliance: UL, CSA, radiation crosslinked, heat and voltage withstand
- Physical Dimensions: Sizes from 0.25 mm² to 2.50 mm², various conductor diameters
Buy the Tyco Electronics Series High Temperature Wiring: FLHTC03110500
Purchase Tyco Electronics high temperature hookup wire online today and ensure your electrical installations are safe, durable, and reliable. Designed with radiation crosslinked ETFE insulation rated at 200°C and 600V, this wire offers excellent thermal stability, tensile strength, insulation resistance, and compliance with UL standards. Available in multiple sizes, including 0.25 mm² to 2.50 mm², it is ideal for industrial and aerospace wiring where safety and performance are critical. Order now and enjoy fast delivery and quality assurance for your demanding electrical projects.
Buy Tyco Electronics FLHTC03110500 now and experience unmatched reliability and performance in high-temperature wiring applications.
Frequently Asked Questions
Where can I buy Raychem TE Connectivity FLHTC03110500?
You can click on the BUY or RFQ button to purchase FLHTC03110500 from an authorized Raychem TE Connectivity distributor.
How do I troubleshoot issues or seek technical support for part FLHTC03110500?
You can download the FLHTC03110500 datasheet or visit the Raychem TE Connectivity website for support.
Who is the manufacturer of FLHTC03110500?
Raychem TE Connectivity
