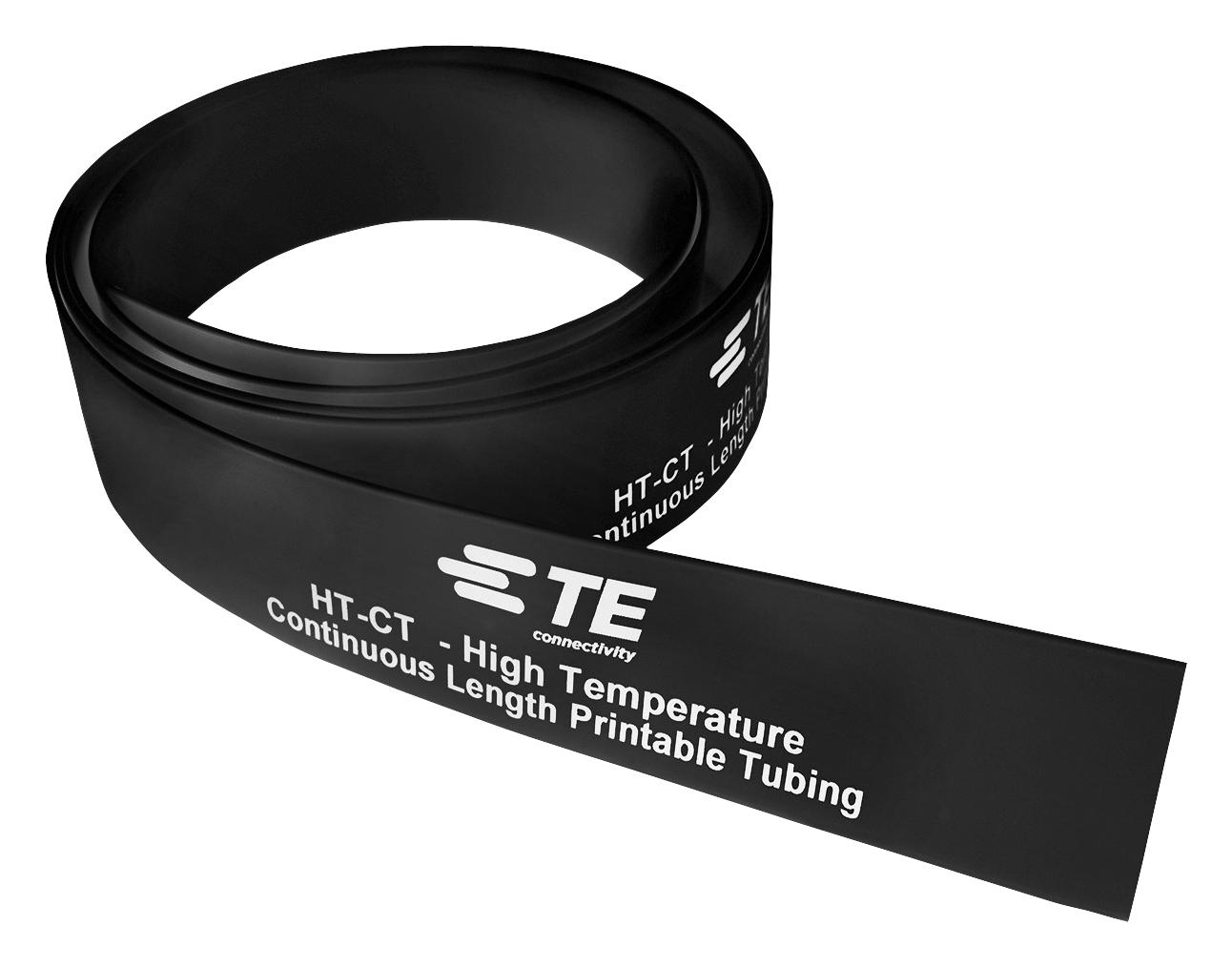

Raychem TE Connectivity HTCT50M34OUT0 Heat Shrink Identification Tube
HT-CT High Temperature Continuous Tube is a heat shrink identification system designed for wire and cable marking in demanding environments. Manufactured with radiation cross-linked material, it withstands temperatures up to 225°C (437°F) and offers excellent chemical resistance, flame retardancy, and self-extinguishing properties. The thin-walled tube shrinks with e-beam technology, ensuring secure marker hold without damaging printed text. Suitable for military, aerospace, railway, and industrial applications, it complies with RoHS and Reach directives, providing reliable identification in challenging conditions worldwide.
Raychem TE Connectivity HTCT50M34OUT0 Heat Shrink Identification Tube Specifications:
- Material: Radiation cross-linked polyolefin with low out-gassing
- Operating Temperature Range: -55°C to 225°C (-67°F to 437°F)
- Shrink Ratio: 2:1 (3/32 inch), 3:1 (1/8 inch)
- Inner Diameter: 3/32 inch (0.094 inch), 1/8 inch (0.125 inch), 3/16 inch (0.189 inch), 1/4 inch (0.250 inch), 3/8 inch (0.375 inch), 1/2 inch (0.500 inch), 3/4 inch (0.750 inch), 1 inch (1.00 inch), 1-1/2 inch (1.50 inch)
- Sleeve Lengths: 50 meters (164 feet)
- Flame Retardant: UL VW-1 rated, self-extinguishing
- Chemical Resistance: Excellent resistance to aerospace, military, rail, and industrial fluids
- Color Options: Yellow, White (others available on request)
- Compliance: RoHS II 2011/65/EU, Reach EC 1907/2006, MIL 202J, EN45545-2, NFPA 130, DOT, Shazainennshi standards
- Supported by TE Connectivity WINTOTAL software and printer systems
Buy the TE Connectivity Series HT-CT High Temperature Identification Tube: HTCT50M34OUT0
Order TE Connectivity HT-CT High Temperature Identification Tube online today to ensure your wire and cable marking remains clear, durable, and resistant to extreme temperatures. With a shrink ratio of 2:1 and operating temperature up to 225°C, this flame-retardant, chemical-resistant sleeve is ideal for military, aerospace, railway, and industrial environments. Secure your wiring systems with the trusted quality of TE Connectivity, supported by specialized printers, thermal ribbons, and intuitive software for seamless identification and enhanced safety in critical applications.
Buy TE Connectivity HT-CT High Temperature Identification Tube now and experience unmatched reliability, chemical resistance, and secure wire marking for demanding applications.
